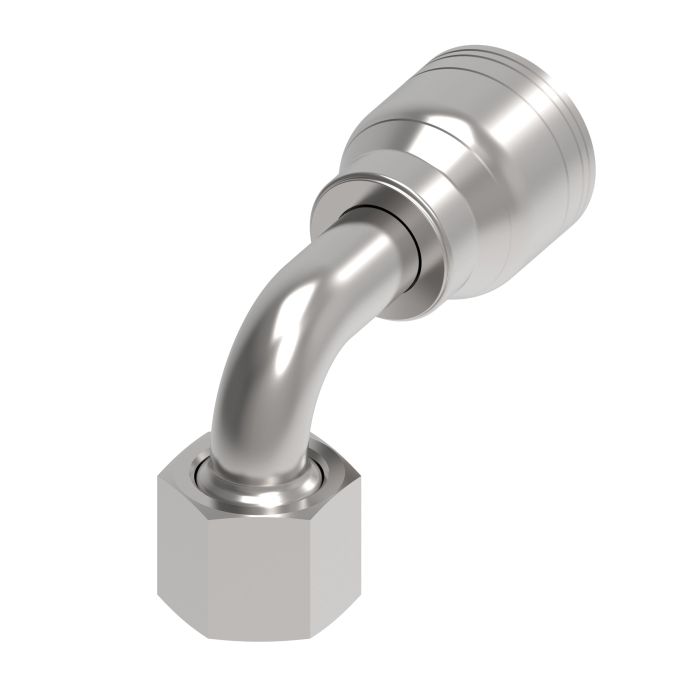

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

Ask A Question

Description & Features

The Danfoss Power Solutions (II LLC Aeroquip) global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow, is designed for general purpose low and medium pressure hydraulics. Featuring a 90-degree elbow, this fitting is suitable for use where shock hazards exist using H277 or H435 hoses.

It is engineered with a 1.15-inch drop dimension and a female end size of 0.8125 inches, providing reliability and precise fit. The 13/16-16 thread without thread sealant ensures secure connections in various applications.

The product is categorized under Aeroquip TTC Steel Crimp Fittings, making it an ideal choice for industry-specific tasks requiring durable and efficient hydraulic fittings.

MPN: C1AQ74

Supplier Part Number: 1AA8FRB8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.81 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.67 in
d Dimensions
1.67 in
Dimension Standards
SAE J1176
Dimensions
3.73 in L x 1.22 in W x 2.19 in H
Drop Dimensions
1.15 in
End Connection Torque
32 to 35 lb-ft
End Gender 1
Female
End Size 1
13/16 in
End Size 2
1/2 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
1.15 in
Hex Size
0.94 in
Hose Dash Size
08
Inside Diameter
0.33 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
13/16-16
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

1AA6FRB8 TTC Steel ORS Crimp Fitting

11/16-16

08

1.39 in

0.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, 90 deg Elbow

1AA10FRB10 TTC Steel ORS Crimp Fitting

1-14S

10

1.91 in

1.27 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 90 deg Elbow

1AA12FRB12 TTC Steel ORS Crimp Fitting

1-3/16-12

12

2.3 in

1.88 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, 90 deg Elbow

1AA16FRB16 TTC Steel ORS Crimp Fitting

1-7/16-12

16

2.87 in

2.21 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, 90 deg Elbow

1AA4FRB4 TTC Steel ORS Crimp Fitting

9/16-18

04

1.17 in

0.82 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 90 deg Elbow

1AA6FRB6 TTC Steel ORS Crimp Fitting

11/16-16

06

1.34 in

0.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, 90 deg Elbow

1AA20FRB20 TTC Steel ORS Crimp Fitting

1-11/16-12

20

3.57 in

2.51 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -08 Hose, 90 deg Elbow

1AA10FRB8 TTC Steel ORS Crimp Fitting

1-14S

08

1.91 in

1.27 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -10 Hose, 90 deg Elbow

1AA12FRB10 TTC Steel ORS Crimp Fitting

1-3/16-12

10

2.29 in

1.88 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 90 deg Elbow

1AA16FRB12 TTC Steel ORS Crimp Fitting

1-7/16-12

12

2.85 in

2.21 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, 90 deg Elbow

1AA6FRB4 TTC Steel ORS Crimp Fitting

11/16-16

04

1.3 in

0.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 90 deg Elbow

1AA8FRB6 TTC Steel ORS Crimp Fitting

13/16-16

06

1.62 in

1.15 in

Product Questions & Answers (3)

Question by: Phil H on Mar 27, 2025, 1:50 PM
Trying to replace a bent elbow, is this the 90 degree swivel ORFS female for a -08 hose with 13/16-16 threads?
Answer by: Customer Support on Mar 28, 2025, 7:10 PM
For fit checks, the key callouts on this one are a 90 degree elbow with a female O-Ring Face Seal swivel end, 13/16-16 thread, and it’s sized for -08 hose.
Question by: Frank P on Dec 5, 2025, 5:04 PM
trying to swap out a bent hose end, is this one the right deal for a -08 hose with an ORFS swivel?
Answer by: Customer Support on Dec 6, 2025, 6:36 PM
It matches a -08 hose end and it has a 13/16-16 female O-ring face seal swivel connection, built as a 90 degree elbow for tighter routing.
Question by: Travis T on Aug 15, 2025, 10:35 AM
fitting says it works with H277 or H435 hose, does that mean it won't work on other hose types, or is that just where it's been tested for shock applications?
Answer by: Customer Support on Aug 17, 2025, 9:15 AM
For shock hazard environments specifically, H277 and H435 are the hose types called out for use with this fitting. Outside of shock conditions, it's rated for general purpose low and medium pressure hydraulics, so the hose pairing requirements are really tied to the application severity more than anything else.
