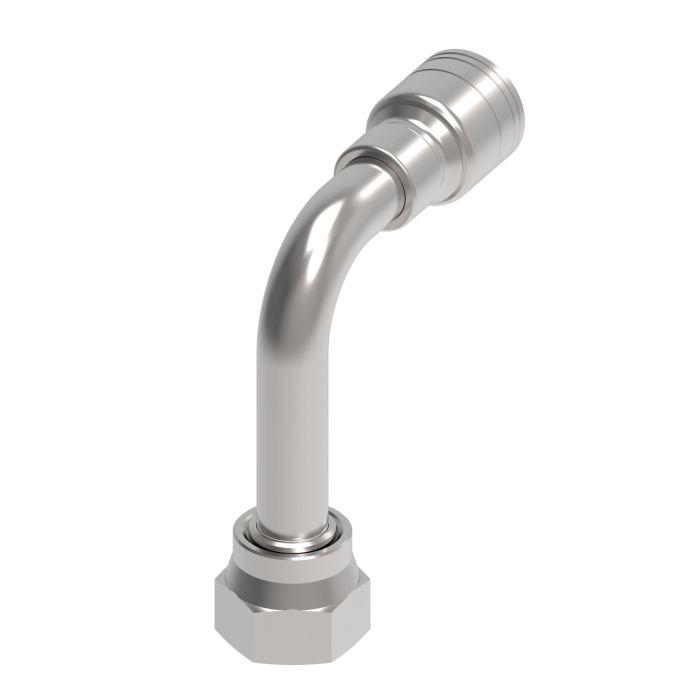

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Long 90 deg Elbow

Ask A Question

Description & Features

The Global TTC 1 & 2 wire braid steel crimp fitting is specifically designed for general-purpose low and medium pressure hydraulics applications. Featuring a 13/16-16 female O-ring face seal swivel and a -06 hose interface this fitting offers secure and reliable connections. The fitting's long 90-degree elbow design ensures flexibility in assembly and installation.

Manufactured by Danfoss Power Solutions (II LLC Aeroquip) this robust steel component is suitable for use with H277 or H435 hoses where shock hazards exist.

The end size specifications are 0.8125 inches for the female connection and 0.375 inches for the hose connection providing compatibility with various hydraulic systems. The fitting does not require a mandrel and lacks the necessity for thread sealant simplifying the installation process.

MPN: C1AQ75 Supplier Part Number: 1AA8FRC6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.46 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.67 in
d Dimensions
1.71 in
Dimension Standards
SAE J1176
Dimensions
3.13 in L x 1.07 in W x 3.47 in H
Drop Dimensions
2.51 in
End Connection Torque
32 to 35 lb-ft
End Gender 1
Female
End Size 1
13/16 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
2.55 in
Hex Size
0.94 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
13/16-16
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, Long 90 deg Elbow

1AA10FRC10 TTC Steel ORS Crimp Fitting

1-14S

10

1.91 in

2.76 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, Long 90 deg Elbow

1AA8FRC8 TTC Steel ORS Crimp Fitting

13/16-16

08

1.7 in

2.55 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, Long 90 deg Elbow

1AA12FRC12 TTC Steel ORS Crimp Fitting

1-3/16-12

12

2.29 in

3.78 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, Long 90 deg Elbow

1AA16FRC16 TTC Steel ORS Crimp Fitting

1-7/16-12

16

2.86 in

4-1/2 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, Long 90 deg Elbow

1AA4FRC4 TTC Steel ORS Crimp Fitting

9/16-18

04

1.17 in

1.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, Long 90 deg Elbow

1AA6FRC4 TTC Steel ORS Crimp Fitting

11/16-16

04

1.3 in

2.13 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Long 90 deg Elbow

1AA6FRC6 TTC Steel ORS Crimp Fitting

11/16-16

06

1.34 in

2.13 in

Product Questions & Answers (1)

Question by: Neal L on Aug 21, 2025, 12:58 PM
trying to replace a 90 degree ORFS swivel on a -06 hose, is this the long elbow style with 13/16-16 threads?
Answer by: Customer Support on Aug 23, 2025, 6:15 AM
It matches a -06 hose end with a 13/16-16 female O-ring face seal swivel, and it’s the long 90 degree elbow version. The female end size is listed as 0.8125 inches and the hose end size as 0.375 inches.
