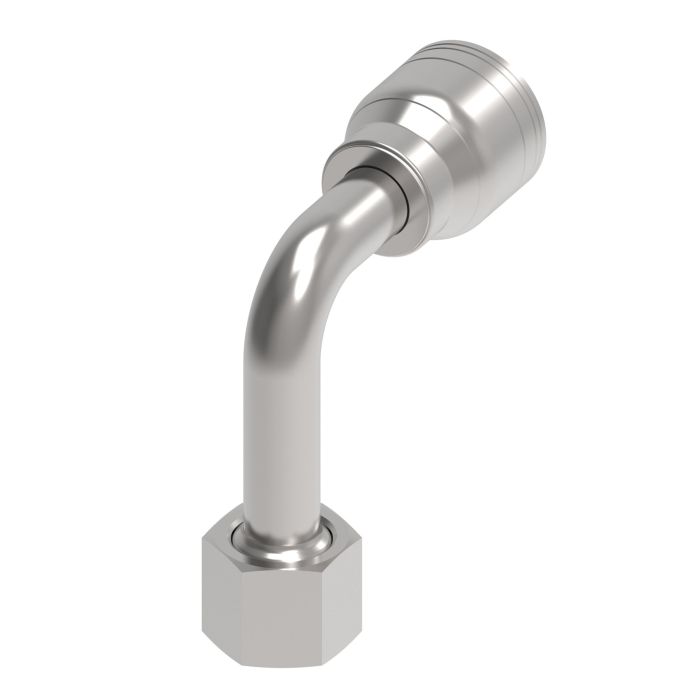

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, Long 90 deg Elbow

Ask A Question

Description & Features

This crimp fitting is designed for general-purpose low and medium-pressure hydraulics, offering durability and reliability for professional applications. The 13/16-16 female O-ring face seal swivel ensures a secure connection, while the long 90-degree elbow provides flexibility and ease of use in tight spaces.

The product features compatibility with -08 hose sizes and is recommended for use with H277 or H435 hoses where shock hazards exist. Its robust steel construction provides strength and resistance in demanding environments, ensuring a long service life.

These fittings from Danfoss Power Solutions (II LLC Aeroquip) offer streamlined installation without the need for a mandrel or thread sealant, making them a practical choice for maintenance and repair tasks.

With a drop dimension of 2.5100 inches and an end size of 0.8125 for the first connection point, this fitting supports an efficient fluid transfer in hydraulic systems.

MPN: 1AA8FRC8

Supplier Part Number: 1AA8FRC8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.81 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.67 in
d Dimensions
1.7 in
Dimension Standards
SAE J1176
Dimensions
3.73 in L x 1.22 in W x 3.55 in H
Drop Dimensions
2.51 in
End Connection Torque
32 to 35 lb-ft
End Gender 1
Female
End Size 1
13/16 in
End Size 2
1/2 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
h Dimensions
2.55 in
Hex Size
0.94 in
Hose Dash Size
08
Inside Diameter
0.33 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
13/16-16
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, Long 90 deg Elbow

1AA10FRC10 TTC Steel ORS Crimp Fitting

1-14S

10

1.91 in

2.76 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, Long 90 deg Elbow

1AA12FRC12 TTC Steel ORS Crimp Fitting

1-3/16-12

12

2.29 in

3.78 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, Long 90 deg Elbow

1AA16FRC16 TTC Steel ORS Crimp Fitting

1-7/16-12

16

2.86 in

4-1/2 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, Long 90 deg Elbow

1AA4FRC4 TTC Steel ORS Crimp Fitting

9/16-18

04

1.17 in

1.8 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, Long 90 deg Elbow

1AA6FRC4 TTC Steel ORS Crimp Fitting

11/16-16

04

1.3 in

2.13 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Long 90 deg Elbow

1AA6FRC6 TTC Steel ORS Crimp Fitting

11/16-16

06

1.34 in

2.13 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, Long 90 deg Elbow

1AA8FRC6 TTC Steel ORS Crimp Fitting

13/16-16

06

1.71 in

2.55 in

Product Questions & Answers (2)

Question by: Norm B on Jul 17, 2025, 8:22 PM
trying to replace a bent 90 on my -08 hose, is this one the long elbow with a female ORFS swivel and 13/16-16 threads?
Answer by: Customer Support on Jul 19, 2025, 10:18 AM
The key identifiers match up: it’s a long 90 degree elbow crimp fitting for -08 hose, with a 13/16-16 female O-ring face seal swivel on one end.
Question by: Merle J on Mar 3, 2026, 2:01 PM
fitting says it works with -08 hose, but does it need any kind of mandrel or thread sealant to get it installed right?
Answer by: Customer Support on Mar 4, 2026, 6:17 PM
No mandrel or thread sealant required with this one. The crimp design and the O-ring face seal connection handle everything you need for a solid, leak-free fit. Just make sure you're working with a compatible -08 hose and your crimp tooling is set up properly for the hose series you're using.
