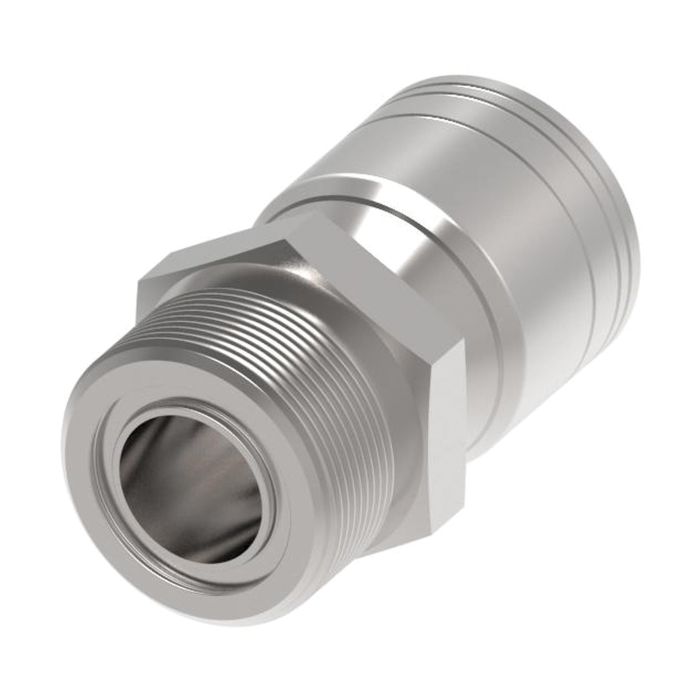

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Male O-Ring Face Seal, -06 Hose, Straight

Description & Features

Aeroquip by Danfoss / Eaton 1A Series Crimp Hose Fittings Male ORS are specifically designed for general-purpose low and medium pressure hydraulics. These fittings offer a reliable connection with a 13/16-16 Male O-Ring Face Seal conducive to maintaining system integrity and performance in demanding environments.

The crimp fitting features a steel construction that supports the use of 1 & 2 wire braid hoses enhancing compatibility with various hydraulic setups. The -06 hose size ensures an optimal fit for fluid transfer applications. The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting 13/16-16 Male O-Ring Face Seal -06 Hose Straight doesn't require a mandrel streamlining installation.

End Type 1 is ORS with a male gender and end type 2 is specifically aligned for line/hose/tube connections. It's cataloged under aircraft hydraulic systems by Danfoss Power Solutions and designed for use with H277 or H435 hoses where shock hazards are present.

Supplier Part Number: 1AA8MR6

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 1.8 in	Compatible Hose ID 0.38 in	Connection Size 1 3/8 in	Connection Size 2 1/2 in	Connection Type Hose, Male ORFS	Connection Type 1 Hose	Connection Type 2 Male ORFS	Construction Style Crimp	Cut-Off Factor 0.95 in	d Dimensions 1.95 in	Dimension Standards SAE J1176	Dimensions 1.95 in L x 1.07 in W x 1.07 in H	End Connection Torque 32 to 35 lb-ft	End Gender 1 Male	End Size 1 13/16 in	End Size 2 3/8 in	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With 2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses	Hex Size 0.826 in	Hose Dash Size 06	Inside Diameter 0.26 in	Manufacturing Cage Code VAN WERT OH - 0X660	Material Steel	Material Construction Carbon Steel	Series 1A Series	Thread Sealant Without Thread Sealant	Thread Size 13/16-16	Thread Type UN

Similar Products

Model Number	Thread Size	Hose Dash Size	d Dimensions
1AA12MR12 TTC Steel ORS Crimp Fitting	1-3/16-12	12	1.44 in
1AA4MR4 TTC Steel ORS Crimp Fitting	9/16-18	04	0.86 in
1AA10MR8 TTC Steel ORS Crimp Fitting	1-14S	08	1.17 in
1AA12MR10 TTC Steel ORS Crimp Fitting	1-3/16-12	10	1.24 in
1AA16MR12 TTC Steel ORS Crimp Fitting	1-7/16-12	12	1.34 in
1AA6MR6 TTC Steel ORS Crimp Fitting	11/16-16	06	0.99 in
1AA8MR8 TTC Steel ORS Crimp Fitting	13/16-16	08	1.13 in

Product Questions & Answers (2)

Question by: Lance T on Jan 29, 2026, 3:31 PM

fitting says no mandrel needed, is that right? never used one that didn't need it and just want to make sure before i order a bunch

Answer by: Customer Support on Jan 31, 2026, 9:41 AM

Correct, no mandrel is required during installation. That's one of the practical advantages of this 1A Series crimp fitting. You can crimp directly onto 1 or 2 wire braid hose without that extra step, which keeps the process simpler and faster, especially if you're doing multiple assemblies at once.

Question by: Terry R on Jul 23, 2025, 9:28 AM

Trying to match up a hose end, is this one a straight -06 crimp with a 13/16-16 male ORFS?

Answer by: Customer Support on Jul 24, 2025, 7:34 PM

You’re looking at a straight steel crimp fitting for -06 hose size with a 13/16-16 male O-Ring Face Seal (ORS) end. It’s built for 1 and 2 wire braid hose.
