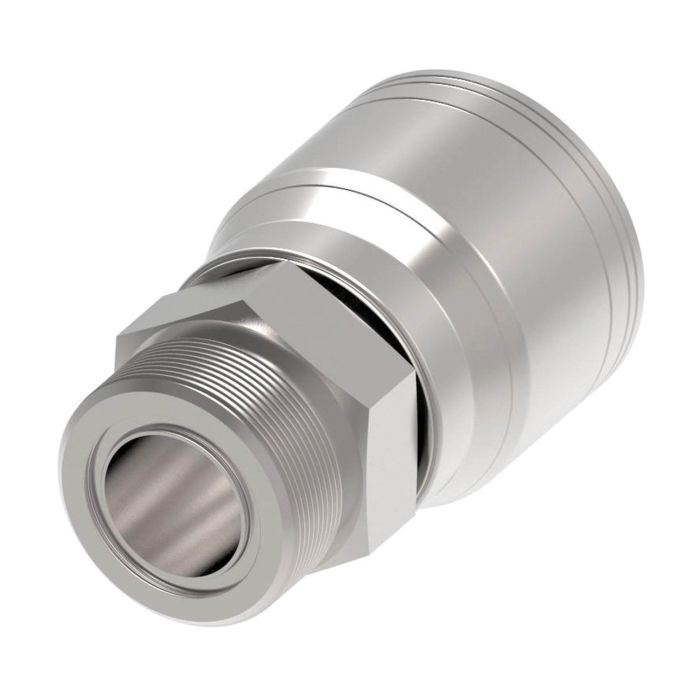

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Male O-Ring Face Seal, -08 Hose, Straight

Ask A Question

Description & Features

The Aeroquip TTC Steel Crimp Fittings are specifically designed for general-purpose low and medium-pressure hydraulic applications. These fittings are engineered to handle shock hazards when paired with H277 or H435 hoses ensuring reliable performance.

Featuring a 13/16-16 Male O-Ring Face Seal the fitting is compatible with -08 hose sizes. The precision-crafted straight design ensures accurate fitment and secure sealing providing robust connections in various hydraulic systems.

The 1A Series from Danfoss Power Solutions (II LLC Aeroquip) stands out due to its durable steel construction making it suitable for demanding industrial environments.

This crimp fitting does not require a mandrel and is free from thread sealant simplifying installation and reducing the potential for leaks. The Aeroquip TTC Steel Crimp Fittings are an excellent choice for maintaining stringent standards in hydraulic systems.

Supplier Part Number: 1AA8MR8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.47 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Hose, Male ORFS
Connection Type 1
Hose
Connection Type 2
Male ORFS
Construction Style
Crimp
Cut-Off Factor
1.34 in
d Dimensions
1.13 in
Dimension Standards
SAE J1176
Dimensions
2.66 in L x 1.22 in W x 1.22 in H
End Connection Torque
32 to 35 lb-ft
End Gender 1
Male
End Size 1
13/16 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
7/8 in
Hose Dash Size
08
Inside Diameter
0.38 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
13/16-16
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Male O-Ring Face Seal, -12 Hose, Straight

1AA12MR12 TTC Steel ORS Crimp Fitting

1-3/16-12

12

1.44 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Male O-Ring Face Seal, -04 Hose, Straight

1AA4MR4 TTC Steel ORS Crimp Fitting

9/16-18

04

0.86 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Male O-Ring Face Seal, -08 Hose, Straight

1AA10MR8 TTC Steel ORS Crimp Fitting

1-14S

08

1.17 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Male O-Ring Face Seal, -10 Hose, Straight

1AA12MR10 TTC Steel ORS Crimp Fitting

1-3/16-12

10

1.24 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Male O-Ring Face Seal, -12 Hose, Straight

1AA16MR12 TTC Steel ORS Crimp Fitting

1-7/16-12

12

1.34 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Male O-Ring Face Seal, -06 Hose, Straight

1AA6MR6 TTC Steel ORS Crimp Fitting

11/16-16

06

0.99 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Male O-Ring Face Seal, -06 Hose, Straight

1AA8MR6 TTC Steel ORS Crimp Fitting

13/16-16

06

1.95 in

Product Questions & Answers (1)

Question by: Earl W on Dec 21, 2025, 4:08 PM
got a -08 hose and need a straight male ORFS end, is this the right one with 13/16-16 threads?
Answer by: Customer Support on Dec 23, 2025, 10:56 AM
For a straight male O-Ring Face Seal connection on a -08 hose, this fitting matches those callouts. It’s a 13/16-16 Male ORFS in the Aeroquip 1A Series, built as a 1 and 2 wire braid steel crimp fitting.
