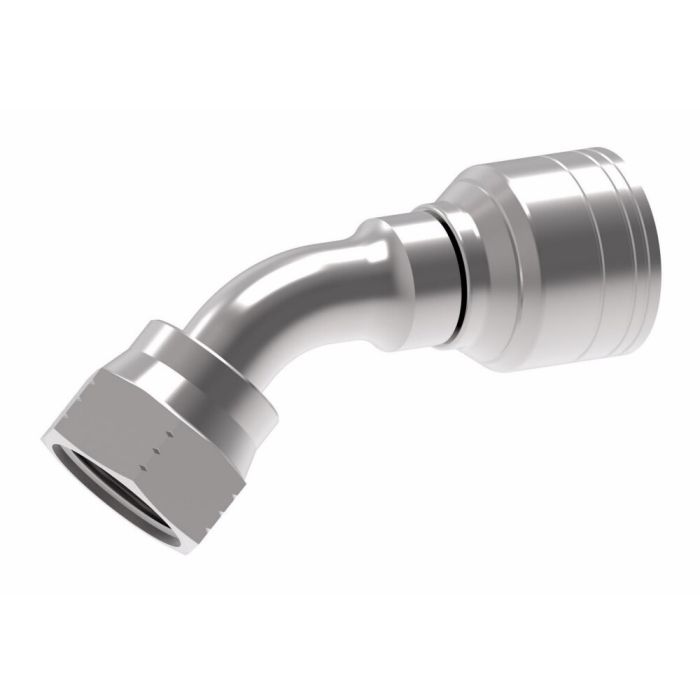

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, 45 deg Elbow

Ask A Question

Description & Features

Designed for use with 1 and 2 wire braid steel hose, the Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, 45 deg Elbow provides a reliable crimped connection in demanding hydraulic circuit applications. The female O-ring face seal (ORFS) swivel end conforms to industry-standard thread sizing at 1-11/16-12, ensuring leak-resistant sealing at the port interface. The 45-degree elbow configuration is well suited for routing hose assemblies in confined or angled installations where a straight fitting would not be practical.

With an overall dimension of 3.37 inches (D), this fitting is part of the Aeroquip Matchmate TTC series and carries catalog reference C1AR19. The zinc-plated finish provides corrosion resistance for general industrial hydraulic service. Compatible with a broad range of hydraulic fluids, detailed in the Eaton fluid compatibility documentation, this fitting is appropriate for use in mobile equipment, industrial machinery, and fluid power systems requiring -20 hose connections.

SKU: 1AV20FRA20

Supplier Part Number (MPN): 1AA20FRA20

Specifications

D
3.37
Drop Dimension
1.00
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Type 1
ORS
End Type 2
Line/Hose/Tube
H
1 in
Hose Size
-20
Mandrel Required
No
Supplier Part Number
1AA20FRA20
Thread 1
1-11/16-12
Thread Sealant
No
Product Weight
1.59 lbs

Related Documents

Similar Products

Model Number Thread 1 Hose Size D H Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -12 Hose, 45 deg Elbow

1AA12FRA12 TTC Steel ORS Crimp Fitting

1-3/16-12

-12

2.38

0.83 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-7/16-12 Female O-Ring Face Seal Swivel, -16 Hose, 45 deg Elbow

1AA16FRA16 TTC Steel ORS Crimp Fitting

1-7/16-12

-16

2.88

0.94 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow

1AA8FRA8 TTC Steel ORS Crimp Fitting

13/16-16

-08

1.79

0.59 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, 45 deg Elbow

1AA10FRA10 TTC Steel ORS Crimp Fitting

1-14

-10

2.02

0.65 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-14 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow

1AA10FRA8 TTC Steel ORS Crimp Fitting

1-14

-08

2.01

0.65 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-3/16-12 Female O-Ring Face Seal Swivel, -10 Hose, 45 deg Elbow

1AA12FRA10 TTC Steel ORS Crimp Fitting

1-3/16-12

-10

2.36

0.83 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 9/16-18 Female O-Ring Face Seal Swivel, -04 Hose, 45 deg Elbow

1AA4FRA4 TTC Steel ORS Crimp Fitting

9/16-18

-04

1.2

0.41 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -04 Hose, 45 deg Elbow

1AA6FRA4 TTC Steel ORS Crimp Fitting

11/16-16

-04

1.38

0.43 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 45 deg Elbow

1AA6FRA6 TTC Steel ORS Crimp Fitting

11/16-16

-06

1.43

0.41 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 45 deg Elbow

1AA8FRA6 TTC Steel ORS Crimp Fitting

13/16-16

-06

1.74

0.59 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-11/16-12 Female O-Ring Face Seal Swivel, -20 Hose, 45 deg Elbow

1AV20FRA20 TTC Steel ORS Crimp Fitting

1-11/16-12

-20

3.37

1 in

Product Questions & Answers (1)

Question by: Ross R on Feb 15, 2026, 10:18 AM
What kind of hydraulic fluids can I run through this fitting without any issues?
Answer by: Customer Support on Feb 17, 2026, 6:12 AM
You can use a broad range of hydraulic fluids with this fitting, but Eaton's fluid compatibility documentation has the specifics. A link to that document is included in the product details.
