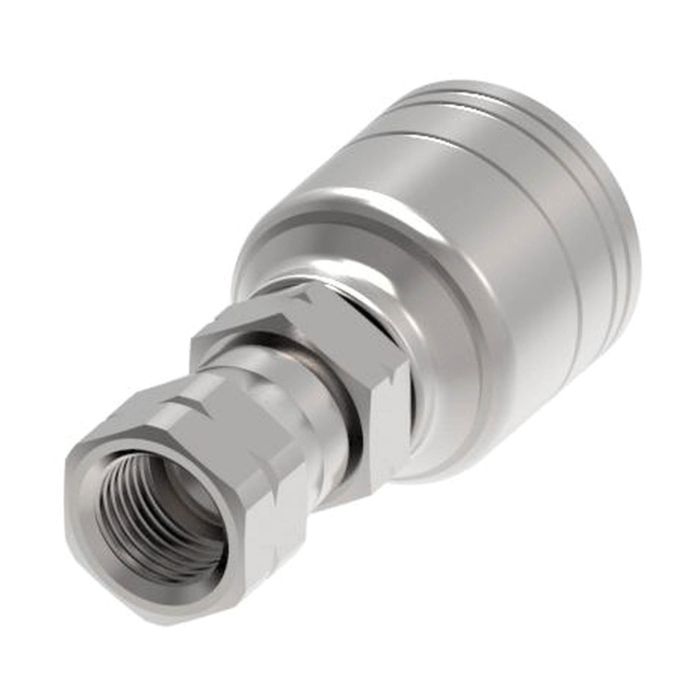

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-1/16-14 Female SAE 45 deg Flare Swivel, -12 Hose, Straight

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is designed for general purpose low and medium pressure hydraulics. Featuring a 1-1/16-14 Female SAE 45-degree Flare Swivel this fitting is engineered to provide reliability in various industrial applications. It is compatible with -12 size hoses ensuring a precise and secure connection.

Constructed by Danfoss Power Solutions (II LLC Aeroquip) this steel crimp fitting supports use with H277 or H435 hoses where shock hazards exist. Its straight configuration and robust design make it suitable for demanding environments.

The fitting has a hex size of 1.125 and does not require a mandrel. Engineered with precision it offers a seamless connection without the need for thread sealant. This specific model identified as Aeroquip TTC Steel Crimp Fittings delivers durability and performance.

Supplier Part Number: 1AA12FS12

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.72 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female SAE Flared Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg Swivel
Construction Style
Crimp
Cut-Off Factor
1.65 in
d Dimensions
1.65 in
Dimension Standards
SAE J1176
Dimensions
2.84 in L x 1.563 in W x 1.563 in H
End Gender 1
Female
End Size 1
12
End Size 2
3/4 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
1-1/4 x 1-1/8 in
Hose Dash Size
12
Inside Diameter
0.61 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-14
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 5/8-18 Female SAE 45 deg Flare Swivel, -06 Hose, Straight

1AA6FS6 TTC Steel SAE Crimp Fitting

5/8-18

06

1.31 in

Product Questions & Answers (1)

Question by: Ralph M on Dec 6, 2025, 11:45 AM
got a -12 hose here, will this straight crimp end match up to a 1-1/16-14 female SAE 45 flare swivel?
Answer by: Customer Support on Dec 8, 2025, 6:04 AM
You are looking at a -12 hose crimp fitting with a 1-1/16-14 female SAE 45 degree flare swivel in a straight configuration, so those are the connection details it is built around.
