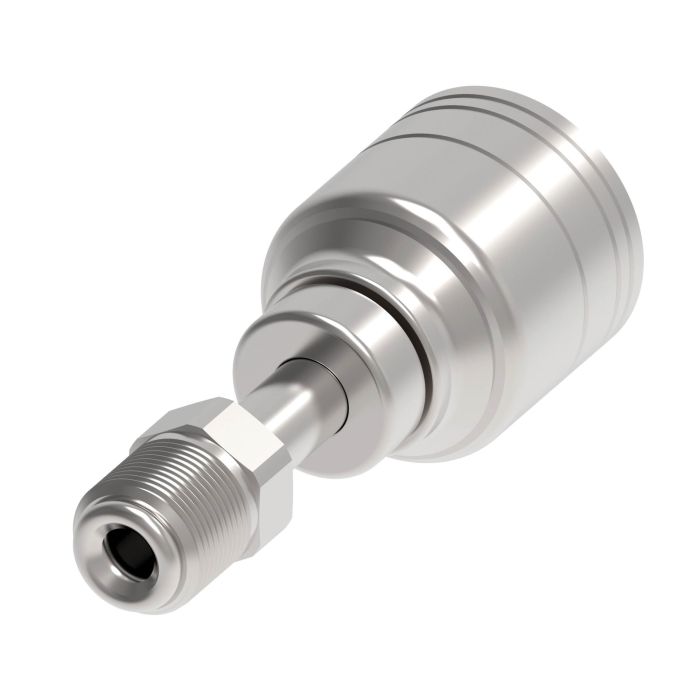

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 5/8-18 Male SAE Inverted Flare, -06 Hose, Straight

Description & Features

Designed for general purpose low and medium pressure hydraulics this fitting ensures reliable performance.

This fitting features a 5/8-18 male SAE inverted flare end and a connection for a -06 hose making it suitable for various industrial applications.

It is crafted with high-quality steel providing strength and durability and is compatible with Aeroquip TTC crimp systems.

Ideal for environments where shock hazards exist this crimp fitting is perfect for use with H277 or H435 hoses.

The fitting requires no mandrel and does not need thread sealant ensuring a seamless installation process.

**End Type:** Male SAE inverted flare on one end and line/hose/tube connection on the other.

**End Sizes:** 0.625 and 0.375.

**Supplier Part Number:** 1AA6MF6

**MPN:** 1AA6MF6

Brand Aeroquip® by Danfoss	a Dimensions 2.44 in	Compatible Hose ID 0.38 in	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Hose, Male SAE Inverted Flared Swivel	Connection Type 1 Hose	Connection Type 2 Male SAE Inverted Flare Swivel	Construction Style Crimp	Cut-Off Factor 1.61 in	d Dimensions 1.61 in	Dimension Standards SAE J1176	Dimensions 2.6 in L x 1.07 in W x 1.07 in H	End Gender 1 Male	End Size 1 5/8 in	End Size 2 3/8 in	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With 2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses	Hex Size 5/8 in	Hose Dash Size 06	Inside Diameter 0.26 in	Material Steel	Material Construction Carbon Steel	Series 1A Series	Thread Sealant Without Thread Sealant	Thread Size 5/8-18	Thread Type UNF

Model Number	Thread Size	Hose Dash Size	d Dimensions	Price	Action
1AA4MF4 TTC Steel SAE Inv Crimp Fitting	7/16-24	04	1.46 in
1AA8MF8 TTC Steel SAE Inv Crimp Fitting	3/4-18	08	1.62 in

Question by: Ralph P on Jul 2, 2025, 1:15 PM

Will this fitting work with a standard Aeroquip TTC crimper?

Answer by: Customer Support on Jul 4, 2025, 8:21 AM

Yes, this fitting is compatible with Aeroquip TTC crimp systems, so you should be good to go.
