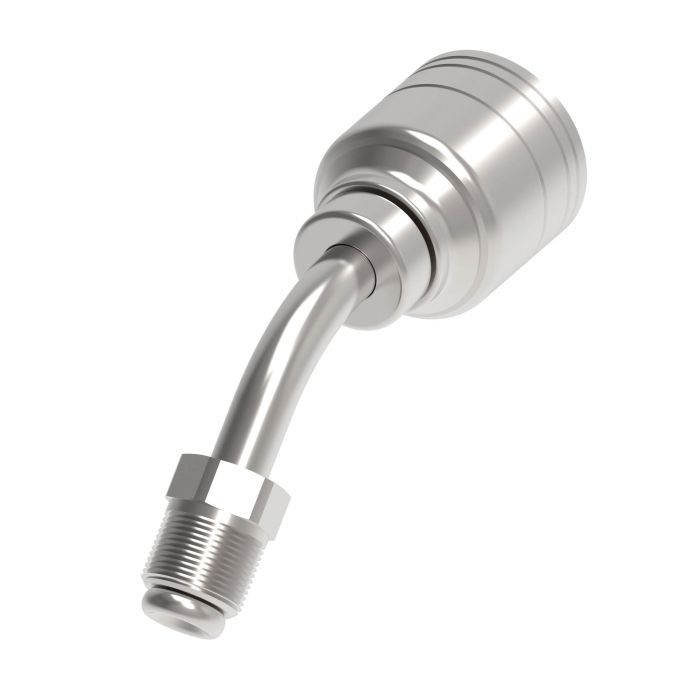

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 5/8-18 Male SAE Inverted Flare, -06 Hose, 45 deg Elbow

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulics the Global TTC 1 & 2 Wire Braid Steel Crimp Fitting is a reliable choice for various industrial applications. It features a robust 5/8-18 Male SAE Inverted Flare making it ideal for use with H277 or H435 hoses where shock hazards exist.

Engineered by Danfoss Power Solutions (II LLC Aeroquip) this crimp fitting offers a 45-degree elbow ensuring versatile connectivity and efficient fluid routing. With a drop dimension of 0.9600 inches and no requirement for a mandrel installation is straightforward and efficient.

The fitting is constructed with high-quality materials providing durable performance and long-lasting functionality. The end sizes are 0.625 for the male inverted flare and 0.375 for the line/hose/tube ensuring a secure and leak-free connection.

Additionally the product comes under the segment code 'seg_code_a' and is categorized under ECCN: EAR99 for export compliance.

MPN: 1AA6MFA6

Supplier Part Number: 1AA6MFA6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.72 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Hose, Male SAE Inverted Flared Swivel
Connection Type 1
Hose
Connection Type 2
Male SAE Inverted Flare Swivel
Construction Style
Crimp
Cut-Off Factor
1.89 in
d Dimensions
1.88 in
Dimension Standards
SAE J1176
Drop Dimensions
0.96 in
End Gender 1
Male
End Size 1
5/8 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
h Dimensions
0.96 in
Hex Size
5/8 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/16-24 Male SAE Inverted Flare, -04 Hose, 45 deg Elbow

1AA4MFA4 TTC Steel SAE Inv Crimp Fitting

7/16-24

04

1-3/4 in

0.96 in

Product Questions & Answers (2)

Question by: Cheryl E on Jul 9, 2025, 1:57 PM
does this fitting work with -06 hose only, or can it handle other sizes too?
Answer by: Customer Support on Jul 11, 2025, 6:33 AM
For -06 hose size, you're in the right place. The fitting is specifically sized for -06 hose and pairs with H277 or H435 hose types, particularly in situations where shock hazards are a concern. The hose end measures 0.375 inches, so trying to run it on a different hose size isn't going to give you a reliable connection.
Question by: Peggy R on Nov 16, 2025, 4:19 PM
trying to swap out a fitting on a -06 hose, is this one the 45 degree elbow with the 5/8-18 male inverted flare end?
Answer by: Customer Support on Nov 18, 2025, 6:55 AM
You are looking at a -06 hose crimp fitting with a 45 degree elbow and a 5/8-18 male SAE inverted flare on one end. The other end is the hose side listed as 0.375 line/hose/tube, with an end size of 0.625 on the male inverted flare side.
