main product photo

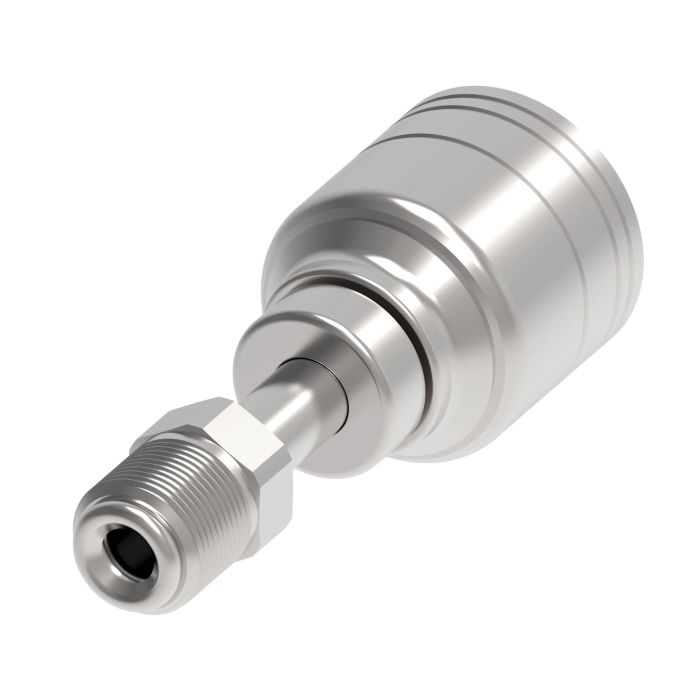

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 3/4-18 Male SAE Inverted Flare, -08 Hose, Straight

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulics the DANFOSS Power Solutions (II LLC Aeroquip) TTC Steel SAE Inverted Crimp Fitting offers robust performance and reliability. This fitting is crafted from high-quality steel and is suited for -08 hoses. It features a 3/4-18 male SAE inverted flare connection which supports secure and durable hydraulic linkages.

Engineered for use with H277 or H435 hoses where shock hazards may exist this crimp fitting does not require a mandrel or thread sealant streamlining the installation process. The product ensures compatibility with both 1-wire and 2-wire braid hoses providing flexibility and efficiency in various hydraulic applications.

Its straight design simplifies routing and minimizes potential leakage points making it an invaluable component in maintaining hydraulic system integrity.

MPN: C1AQ80

Supplier Part Number: 1AA8MF8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.63 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Hose, Male SAE Inverted Flared Swivel
Connection Type 1
Hose
Connection Type 2
Male SAE Inverted Flare Swivel
Construction Style
Crimp
Cut-Off Factor
1.62 in
d Dimensions
1.62 in
Dimension Standards
SAE J1176
Dimensions
2.79 in L x 1.22 in W x 1.22 in H
End Gender 1
Male
End Size 1
3/4 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
3/4 in
Hose Dash Size
08
Inside Diameter
0.38 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-18

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 7/16-24 Male SAE Inverted Flare, -04 Hose, Straight

1AA4MF4 TTC Steel SAE Inv Crimp Fitting

7/16-24

04

1.46 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 5/8-18 Male SAE Inverted Flare, -06 Hose, Straight

1AA6MF6 TTC Steel SAE Inv Crimp Fitting

5/8-18

06

1.61 in

Product Questions & Answers (1)

Question by: Lee S on May 16, 2025, 1:12 PM
fitting says it works with 1-wire and 2-wire braid hose, does that mean I don't have to buy two different fittings if I'm switching between the two on the same job?
Answer by: Customer Support on May 18, 2025, 6:20 AM
Correct on that. The 1AA8MF8 is rated for both 1-wire and 2-wire braid hose in the -08 size, so one part number covers both configurations. That's handy when you're working across a mix of hose types without wanting to stock two separate fittings for the same connection point.
