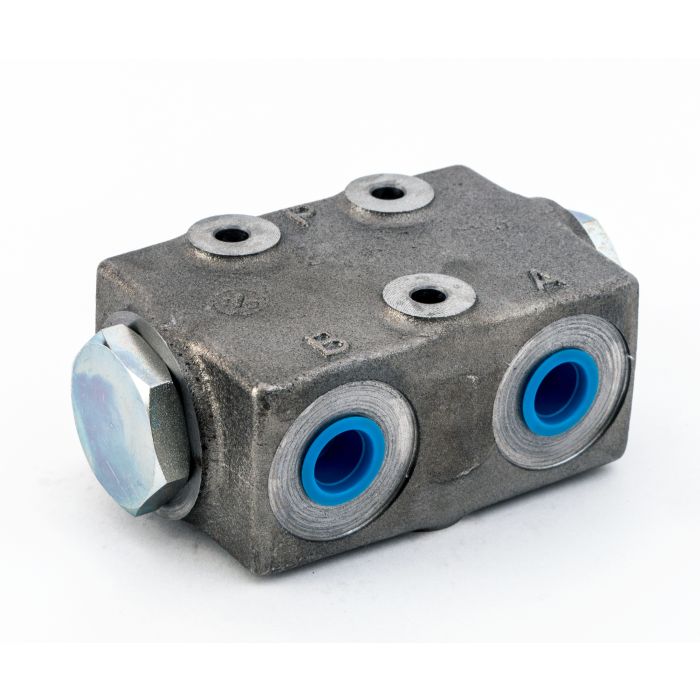

FDC60 Series Flow Divider Combiner FDC60-70-6-50/50 | TW2458-10

Ask A Question

Description & Features

Part of the FDC60 Series, this WEBTEC flow divider combiner is designed to split a single hydraulic supply into two equal flows or merge two return flows into one, making it well suited to synchronised cylinder and motor circuits. Rated to 310 bar (4500 psi) with a working flow range of 55 to 70 L/min (14.5 to 18.5 US gpm), it delivers a flow accuracy of plus or minus 2% of rated flow across both outlet ports.

The unit is constructed from grey cast iron and mild steel with hardened internal components and NBR seals, supporting a fluid and ambient temperature range of -30 to 100 degrees C (-22 to 212 degrees F). Port connections comprise a 7/8-14UN SAE ORB inlet and dual 3/4-16UN SAE ORB outlets. Compatible with mineral oils to ISO 11158, the assembly weighs 2 kg (4.4 lbs).

SKU: TW2458-10
Supplier Part Number (MPN): FDC60-70-6-50/50

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TW2458-10
Flow Accuracy
±2% of Rated Flow
Ambient Temperature
-30 to 100°C, -22 to 212°F
Body Materials
Grey cast iron & mild steel
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
14.5 - 18.5
Flow Range (L/min)
55 - 70
Fluid Temperature Range
-30 to 100°C, -22 to 212°F
Gross Weight
2 kg, 4.4 lbs
Internal Materials
Hardened steel & high carbon spring steel
Maximum Rated Flow
70 L/Min, 18.5 US gpm
Max Rated Pressure
310 bar, 4500 psi
Net Weight
2 kg, 4.4 lbs
Porting
P Port 7/8"-14UN #10 SAE ORB, A Port 3/4” -16UN #8 SAE ORB, B Port 3/4” -16UN #8 SAE ORB
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Sherry H on Jul 7, 2025, 3:50 PM
How much pressure can the FDC60 Series Flow Divider Combiner handle?
Answer by: Customer Support on Jul 9, 2025, 11:55 AM
The FDC60 Series Flow Divider Combiner can handle a maximum pressure of 310 bar or 4500 psi, making it suitable for high-pressure applications.
Question by: Tony F on May 28, 2026, 7:08 AM
porting on this thing, is the inlet a different size than the two outlets?
Answer by: Customer Support on May 30, 2026, 7:56 AM
the ports are not all the same. The P port (inlet) is 7/8"-14UN, which is a #10 SAE ORB fitting. Both the A and B outlet ports are 3/4"-16UN, so they're #8 SAE ORB. Pretty common sizing for this flow range, but worth double-checking your existing lines before you plumb it in.
