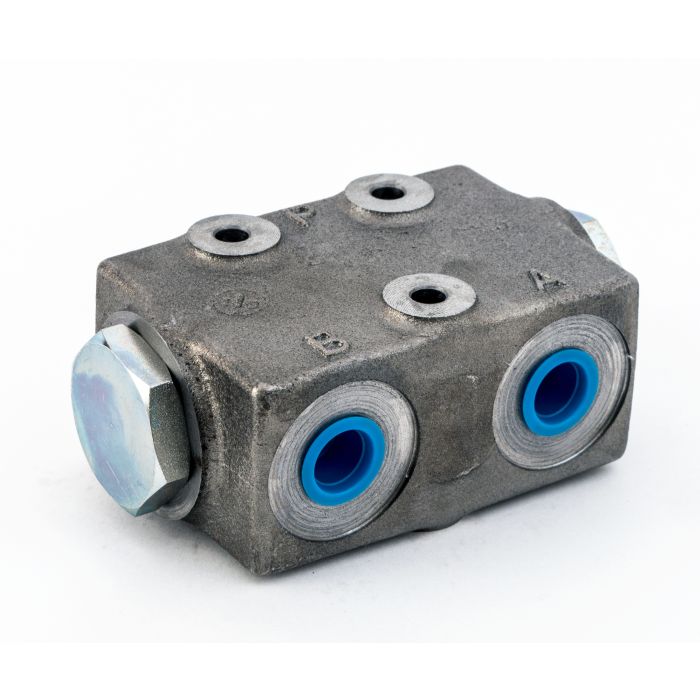

FDC60 Series Flow Divider Combiner FDC60-10-8-50/50 | TW2458-124

Description & Features

The WEBTEC FDC60 Series Flow Divider Combiner is designed to split a single hydraulic flow into two proportional flows with remarkable precision, achieving a flow accuracy of ±2% of the rated flow. This model, FDC60-10-8-50/50, is capable of handling a maximum flow rate of 10 L/Min (2.6 US gpm) and a maximum pressure of 310 bar (4500 psi), making it suitable for demanding industrial environments. Constructed with a grey cast iron and mild steel body, it ensures durability and reliability under high-pressure conditions. The internal components are crafted from hardened steel and high carbon spring steel, further ensuring long-lasting performance.

The device is compatible with mineral oils conforming to ISO 11158, with other fluid options available upon request. It operates efficiently across a wide fluid and ambient temperature range from -30 to 100°C (-22 to 212°F). Featuring NBR seals and standard 1/2" NPTF porting, the FDC60 Series is versatile and straightforward to integrate into existing hydraulic systems.

SKU: TW2458-124
Supplier Part Number (MPN): FDC60-10-8-50/50

Specifications

Brand WEBTEC	Brand Webtec	Pack Size 1.00	UOM EA	Supplier Part Number TW2458-124	Flow Accuracy ±2% of Rated Flow	Ambient Temperature -30 to 100°C, -22 to 212°F	Body Materials Grey cast iron & mild steel	Compatible Fluid Mineral oils to ISO 11158 (other fluids on request)	Flow Range (US gpm) 1.3 - 2.6	Flow Range (L/min) 5 - 10	Fluid Temperature Range -30 to 100°C, -22 to 212°F	Gross Weight 2 kg, 4.4 lbs	Internal Materials Hardened steel & high carbon spring steel	Maximum Rated Flow 10 L/Min, 2.6 US gpm	Max Rated Pressure 310 bar, 4500 psi	Net Weight 2 kg, 4.4 lbs	Porting P Port 1/2" NPTF, A Port 1/2" NPTF, B Port 1/2" NPTF	Seals NBR	Product Weight 0.99 lbs

Product Questions & Answers (2)

Question by: Wade A on Jun 10, 2026, 10:34 PM

How does the FDC60 Series Flow Divider Combiner handle different flow rates?

Answer by: Customer Support on Jun 12, 2026, 9:47 AM

For applications where splitting a single flow into two proportional flows is required, the FDC60 Series Flow Divider Combiner efficiently manages flow rates. It supports a flow range from 5 to 10 liters per minute (1.3 to 2.6 US gallons per minute), maintaining an accuracy of ±2% of the rated flow.

Question by: Shawn R on Mar 11, 2026, 8:39 AM

porting on this thing is 1/2" NPTF on all three ports, does that mean P, A, and B are all the same size?

Answer by: Customer Support on Mar 13, 2026, 7:08 AM

All three ports run 1/2" NPTF, so yes, P, A, and B are consistent across the board. That makes plumbing straightforward since you're not dealing with mixed thread sizes or reducers. NPTF is a dryseal tapered thread, so proper torque and good thread condition matter more than sealant tape in most cases.
