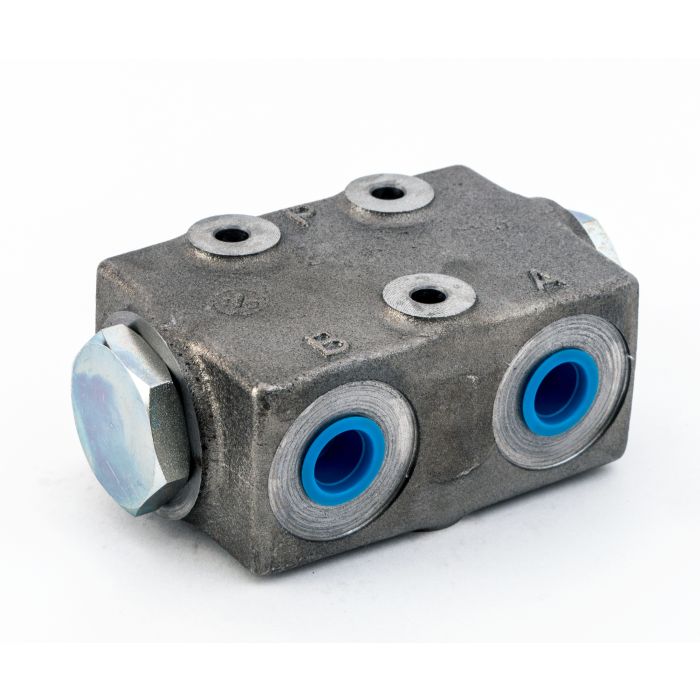

main product photo

FDC60 Series Flow Divider Combiner FDC60-30-6-50/50 | TW2458-142

Ask A Question

Description & Features

Part of the FDC60 Series, this WEBTEC flow divider combiner is designed to divide a single hydraulic supply into two equal proportional flows, or conversely combine two return flows into one. It handles a working flow range of 16 to 30 L/min (4.2 to 7.9 US gpm) at a maximum pressure of 310 bar (4500 psi), with a flow accuracy of plus or minus 2% of rated flow across both outlets.

The unit is rated for fluid and ambient temperatures from -30 to 100 degrees C (-22 to 212 degrees F), making it suitable for a wide range of environmental conditions. Porting is via a 7/8"-14UN SAE ORB inlet and dual 3/4"-16UN SAE ORB work ports. The body is constructed from grey cast iron and mild steel, with hardened steel internals and NBR seals. Compatible with mineral oils to ISO 11158, the unit weighs 2 kg (4.4 lbs).

SKU: TW2458-142
Supplier Part Number (MPN): FDC60-30-6-50/50

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TW2458-142
Flow Accuracy
±2% of Rated Flow
Ambient Temperature
-30 to 100°C, -22 to 212°F
Body Materials
Grey cast iron & mild steel
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
4.2 - 7.9
Flow Range (L/min)
16 - 30
Fluid Temperature Range
-30 to 100°C, -22 to 212°F
Gross Weight
2 kg, 4.4 lbs
Internal Materials
Hardened steel & high carbon spring steel
Maximum Rated Flow
30 L/Min, 7.9 US gpm
Max Rated Pressure
310 bar, 4500 psi
Net Weight
2 kg, 4.4 lbs
Porting
P Port 7/8"-14UN #10 SAE ORB, A Port 3/4” -16UN #8 SAE ORB, B Port 3/4” -16UN #8 SAE ORB
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Phil H on Feb 22, 2026, 12:26 PM
what's the flow split on this thing, does it divide evenly or can you set it different ratios?
Answer by: Customer Support on Feb 24, 2026, 9:04 AM
For this particular model, the split is fixed at 50/50, meaning it divides the incoming flow equally between the two output ports. The rated flow range runs from 16 to 30 L/min (roughly 4.2 to 7.9 gpm), and accuracy holds to within ±2% of rated flow across that range. If you need an uneven ratio, that would require a different model in the FDC60 series configured for that split.
