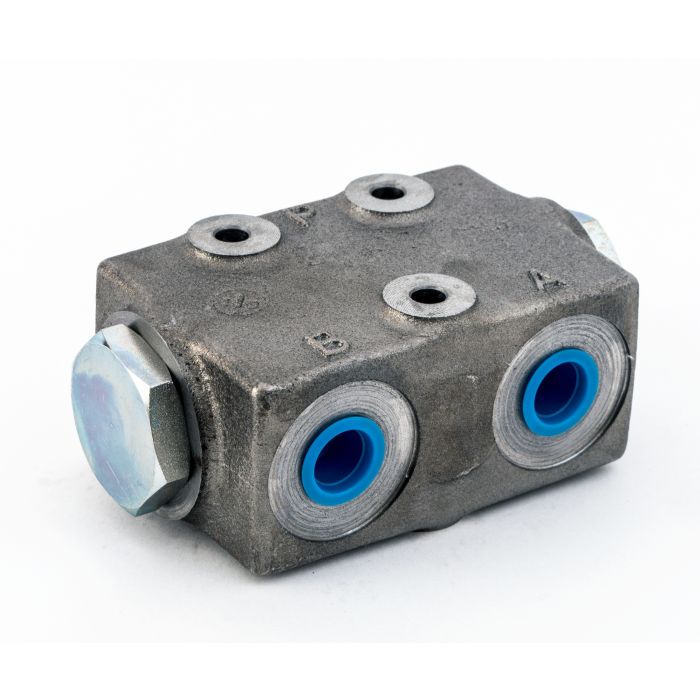

main product photo

FDC60 Series Flow Divider Combiner FDC60-60-8-15/85 | TW2458-146

Ask A Question

Description & Features

Designed for proportional flow splitting and combining in hydraulic circuits, the WEBTEC FDC60-60-8-15/85 handles flows from 45 to 60 L/min (11.9 to 15.9 US gpm) at pressures up to 310 bar (4500 psi). Flow accuracy is held to within ±2% of rated flow, providing consistent proportional division across the working range.

All three ports, P, A, and B, are 1/2" NPTF, suiting direct integration into standard hydraulic lines. The body combines grey cast iron and mild steel construction, with hardened steel and high carbon spring steel internals and NBR seals, giving the unit good mechanical durability across a fluid and ambient temperature range of -30 to 100°C (-22 to 212°F). Compatible with mineral oils to ISO 11158 as standard, with alternative fluid compatibility available on request. At 2 kg (4.4 lbs), the unit is compact relative to its pressure and flow rating.

SKU: TW2458-146
Supplier Part Number (MPN): FDC60-60-8-15/85

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TW2458-146
Flow Accuracy
±2% of Rated Flow
Ambient Temperature
-30 to 100°C, -22 to 212°F
Body Materials
Grey cast iron & mild steel
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
11.9 - 15.9
Flow Range (L/min)
45 - 60
Fluid Temperature Range
-30 to 100°C, -22 to 212°F
Gross Weight
2 kg, 4.4 lbs
Internal Materials
Hardened steel & high carbon spring steel
Maximum Rated Flow
60 L/Min, 15.9 US gpm
Max Rated Pressure
310 bar, 4500 psi
Net Weight
2 kg, 4.4 lbs
Porting
P Port 1/2" NPTF, A Port 1/2" NPTF, B Port 1/2" NPTF
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Wade S on Sep 8, 2025, 7:15 AM
How does the FDC60-60-8-15/85 handle variations in flow rate?
Answer by: Customer Support on Sep 9, 2025, 9:27 PM
For applications needing to split a single flow into two proportional flows, the FDC60-60-8-15/85 operates effectively within a flow range of 45 to 60 L/min. It maintains a flow accuracy of ±2% of the rated flow, ensuring reliable performance even as the flow rate changes within this range.
Question by: Lyle B on May 25, 2026, 9:27 AM
ports on this are all 1/2" NPTF -- does that go for both outlets and the inlet too, or just one of them?
Answer by: Customer Support on May 27, 2026, 7:53 AM
All three ports are 1/2" NPTF. The P port is your inlet, and both the A and B outlet ports are the same 1/2" NPTF thread. So if you're plumbing this into an existing 1/2" NPTF circuit, all three connections are consistent and you won't need reducers or adapters on either side.
