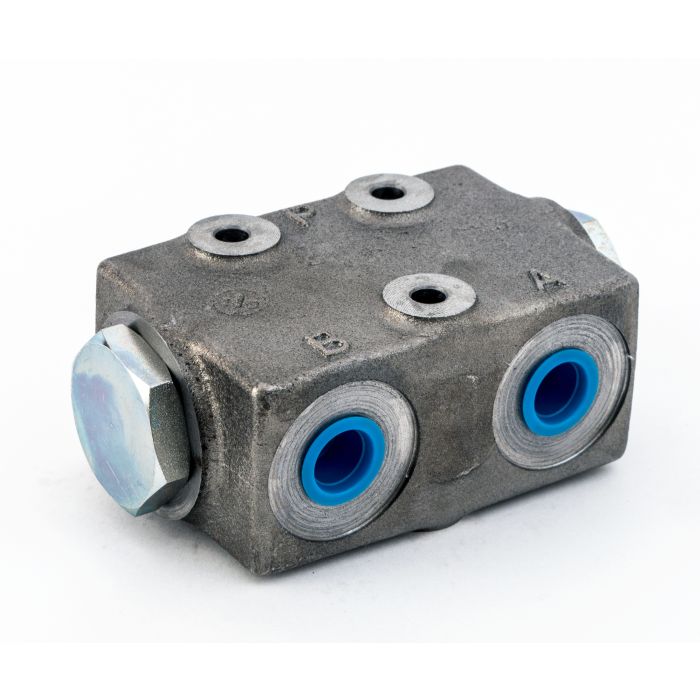

main product photo

FDC60 Series Flow Divider Combiner FDC60-40-8-50/50 | TW2458-40

Ask A Question

Description & Features

The WEBTEC FDC60 Series Flow Divider Combiner is a reliable solution for hydraulic systems needing precise flow management. This model, FDC60-40-8-50/50, can handle a maximum flow of 40 L/Min (10.6 US gpm) and withstand pressures up to 310 bar (4500 psi). Designed for versatility, it operates effectively within a flow range of 25 to 40 L/min (6.6 to 10.6 US gpm) and maintains a flow accuracy of ±2% of rated flow. Its robust construction features grey cast iron and mild steel for the body, with hardened steel and high carbon spring steel for internal components, ensuring durability under demanding conditions.

The FDC60's compatibility with mineral oils to ISO 11158 and its temperature resilience from -30 to 100°C (-22 to 212°F) make it suitable for various applications. With NBR seals and precision porting of P, A, and B Ports at 1/2" NPTF, this flow divider combiner meets rigorous industrial standards for performance and reliability.

SKU: TW2458-40
Supplier Part Number (MPN): FDC60-40-8-50/50

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TW2458-40
Flow Accuracy
±2% of Rated Flow
Ambient Temperature
-30 to 100°C, -22 to 212°F
Body Materials
Grey cast iron & mild steel
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
6.6 - 10.6
Flow Range (L/min)
25 - 40
Fluid Temperature Range
-30 to 100°C, -22 to 212°F
Gross Weight
2 kg, 4.4 lbs
Internal Materials
Hardened steel & high carbon spring steel
Maximum Rated Flow
40 L/Min, 10.6 US gpm
Max Rated Pressure
310 bar, 4500 psi
Net Weight
2 kg, 4.4 lbs
Porting
P Port 1/2" NPTF, A Port 1/2" NPTF, B Port 1/2" NPTF
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Ross J on Feb 13, 2026, 6:23 PM
How well does the FDC60-40-8-50/50 perform in terms of flow accuracy?
Answer by: Customer Support on Feb 15, 2026, 11:39 AM
The FDC60-40-8-50/50 offers a flow accuracy of ±2% of the rated flow, ensuring precise performance in applications where flow division is critical.
Question by: Steve C on Dec 24, 2025, 4:45 PM
porting on this is 1/2" NPTF on all three ports -- does that mean P, A, and B are all the same size?
Answer by: Customer Support on Dec 26, 2025, 7:12 AM
All three ports on the FDC60-40-8-50/50 are 1/2" NPTF, so the inlet and both outlet ports are the same thread size and type. That keeps plumbing straightforward if you're running standard half-inch hydraulic fittings throughout the circuit.
