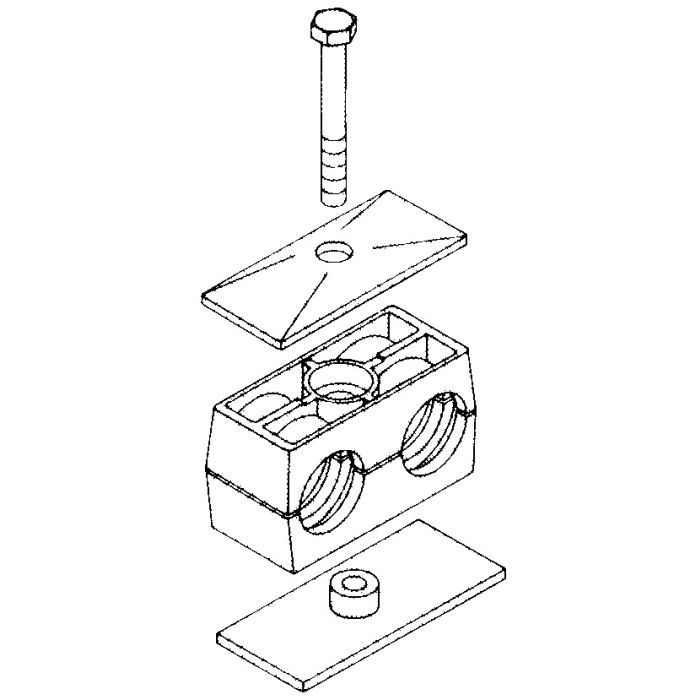

Twin Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 9.5 mm mm Size

Description & Features

Designed for varied diameters from 1/4" to 1-1/2" this STAUFF Twin Series Support Clamp ensures dependable industrial support. Crafted from durable polypropylene it is optimized for secure installations with single weld plate and hex head bolts with cover plate. With a size of 9.5 mm the clamp supports tubing up to 0.375 inches in diameter and functions reliably within a temperature range of -22deg;F to 194deg;F. The profiled body I.D. ensures a snug fit and precise spacing guidelines uphold stability and performance. Various mounting styles including weld plate and rail provide adaptable setup options making it suitable for a range of industrial environments. Polypropylene material offers robustness while polyamide alternatives cater to higher temperature ranges. The recommended spacing from 3 to 7 feet for tubing ensures solid and stable support in diverse conditions enhancing the overall reliability of the support system. MPN: 6100081837 Supplier Part Number: 6100081837

Specifications

B2 1.18	Body I.D. Profiled	Brand Stauff Corporation	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Group 2	H2 1.73	H3 0.73	I1 2.09	Materials Polypropylene	Package Qty. 1	Size 9.5 mm	Supplier Part Number 6100081837	Thread Sealant No	Tube Size 0.38	Alternate Part Numbers Alternate Part Number .37TX2-S, Alternate Part Number C1EU95, Alternate Part Number C1ML87, Alternate Part Number SP-209, Alternate Part Number 5/09, Alternate Part Number 5-PP-GD-AS-U-W10-#K, Alternate Part Number SP-209.5/09.5-PP-GD-AS-U-W10-K, Alternate Part Number SP2095/095PPGDASUW10#K, Alternate Part Number SP2095/095PPGDASUW10K, Alternate Part Number SP2095/095PPGDASUW10K CLAMP 3/8 INCH TUB, Alternate Part Number STNA12789	Product Weight 0.31 lbs

Similar Products

Model Number	Size	Pipe Size	Tube Size	Hose O.D.	Group	Materials	Body I.D.	Package Qty.	B2	H2	H3	I1
STNA12839 Twin Series Support Clamp	17.4 mm			0.685	3	Polypropylene	Smooth	1	1.18	1.93	0.92	2.64
STNA17378 Twin Series Support Clamp	12.7 mm		0.5		2	Polypropylene	Profiled	1	1.18	1.73	0.73	2.09
SP3213/213DPPGDA Twin Series Support Clamp	21.3 mm	0.5		0.84	3D	Polypropylene	Profiled	1	1.18	2.17	0.92	2.64
6100081837 Twin Series Support Clamp	9.5 mm		0.375		2	Polypropylene	Profiled	1	1.18	1.73	0.73	2.09
STNA12801 Twin Series Support Clamp	13.4 mm	0.25		0.528	3	Polypropylene	Smooth	1	1.18	1.93	0.92	2.64
STNA12846 Twin Series Support Clamp	19 mm		0.75		3	Polypropylene	Profiled	1	1.18	1.93	0.93	2.64
STNA12897 Twin Series Support Clamp	28 mm			1.102	4	Polypropylene	Smooth	1	1.18	2.17	0.94	3.15
STNA12919 Twin Series Support Clamp	35.7 mm			1.406	5	Polypropylene	Smooth	1	1.18	2.72	1.22	4.17

Product Questions & Answers (3)

Question by: Ross P on Jul 4, 2025, 6:16 PM

got 3/8 tubing on a little hydraulic setup. is the 9.5 mm clamp the right one for that

Answer by: Customer Support on Jul 6, 2025, 1:54 PM

For 9.5 mm size, this clamp is matched to tubing up to 0.375 inch outside diameter, which is the common 3/8 inch tubing size.

Question by: Cheryl H on May 18, 2025, 5:50 PM

How far apart should these be spaced on half-inch tubing?

Answer by: Customer Support on May 19, 2025, 9:12 PM

For tubing that's a half-inch in diameter, you'll want to space these clamps about 3 feet apart to get good support.

Question by: Janice T on Dec 12, 2025, 6:36 AM

trying to figure out if this'll hold 3/8 inch tubing or if i need something bigger. what size does this actually clamp?

Answer by: Customer Support on Dec 13, 2025, 10:20 AM

For 3/8 inch tubing, this is the right one. The 9.5 mm size corresponds to a 0.375 inch tube diameter, so it's a direct fit. Just keep in mind the body I.D. is profiled, which gives you that snug, secure fit on rigid tubing. If you ever need to clamp hose instead of hard tubing, you'd want to look at the smooth body I.D. version of this clamp rather than this one.
