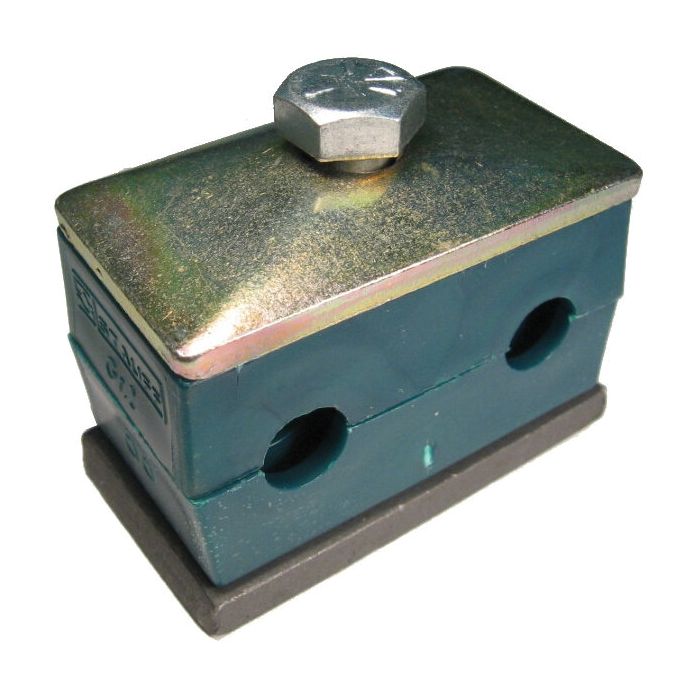

Twin Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 19 mm mm Size

Description & Features

Designed specifically for industrial fluid systems this support clamp is built to accommodate tube sizes up to 19 mm while supporting rail mounting styles for all sizes. With its single weld plate combined with hex head bolts and a cover plate the design prioritizes structural stability. Fabricated from robust polypropylene this clamp handles a temperature range of -22deg;F to 194deg;F. The profiled body I.D. adds to its adaptability in various industrial applications making it a reliable choice for securing tubing and pipes with equal or unequal outside diameters ranging from 1/4" to 1-1/2". The flexibility in installation allows the clamp to be used in different configurations ensuring optimal support without compromising on stability. The recommended spacing for tubing and pipe varies enabling efficient clamping solutions. Additionally hoses can be clamped using the smooth body I.D. style clamps broadening the range of its applications. Supplier Part Number: 6100082029

Specifications

B2 1.18	Body I.D. Profiled	Brand Stauff Corporation	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Group 3	H2 1.93	H3 0.93	I1 2.64	Materials Polypropylene	Package Qty. 1	Size 19 mm	Supplier Part Number 6100082029	Thread Sealant No	Tube Size 0.75	Alternate Part Numbers Alternate Part Number 6100082029, Alternate Part Number C1EU96, Alternate Part Number C1ML91, Alternate Part Number SP-319/19-PP-GD-AS-U-W10-#K, Alternate Part Number SP-319/19-PP-GD-AS-U-W10-K, Alternate Part Number SP319/19PPGDASUW10#K, Alternate Part Number SP319/19PPGDASUW10K	Product Weight 0.39 lbs

Similar Products

Model Number	Size	Pipe Size	Tube Size	Hose O.D.	Group	Materials	Body I.D.	Package Qty.	B2	H2	H3	I1
STNA12839 Twin Series Support Clamp	17.4 mm			0.685	3	Polypropylene	Smooth	1	1.18	1.93	0.92	2.64
STNA17378 Twin Series Support Clamp	12.7 mm		0.5		2	Polypropylene	Profiled	1	1.18	1.73	0.73	2.09
SP3213/213DPPGDA Twin Series Support Clamp	21.3 mm	0.5		0.84	3D	Polypropylene	Profiled	1	1.18	2.17	0.92	2.64
6100081837 Twin Series Support Clamp	9.5 mm		0.375		2	Polypropylene	Profiled	1	1.18	1.73	0.73	2.09
STNA12801 Twin Series Support Clamp	13.4 mm	0.25		0.528	3	Polypropylene	Smooth	1	1.18	1.93	0.92	2.64
STNA12846 Twin Series Support Clamp	19 mm		0.75		3	Polypropylene	Profiled	1	1.18	1.93	0.93	2.64
STNA12897 Twin Series Support Clamp	28 mm			1.102	4	Polypropylene	Smooth	1	1.18	2.17	0.94	3.15
STNA12919 Twin Series Support Clamp	35.7 mm			1.406	5	Polypropylene	Smooth	1	1.18	2.72	1.22	4.17

Product Questions & Answers (3)

Question by: Jimmy P on Mar 31, 2025, 8:27 PM

Will this clamp work with standard 19mm OD tubing?

Answer by: Customer Support on Apr 2, 2025, 6:42 AM

The 19 mm size refers to the inside diameter of the clamp. It's designed to securely hold pipes or tubes with a 19 mm outer diameter.

Question by: Cindy O on Jun 23, 2025, 9:59 AM

Got a 19mm pipe that needs support - will this polypropylene clamp handle it okay?

Answer by: Customer Support on Jun 24, 2025, 8:55 PM

Absolutely, that's exactly what this clamp is sized for. The 19mm designation means it's built to securely hold pipes and tubing of that diameter. The polypropylene construction gives you chemical resistance and durability, while the single weld plate design with hex head bolts and cover plate provides solid mounting and protection for your piping system.

Question by: Ralph P on Mar 17, 2025, 3:06 PM

Got some 19mm tubing I need to secure, this clamp the one for that?

Answer by: Customer Support on Mar 18, 2025, 8:02 PM

Sized specifically for 19 mm pipes and tubing, so it should handle that job just fine with its polypropylene body and the included weld plate setup.
