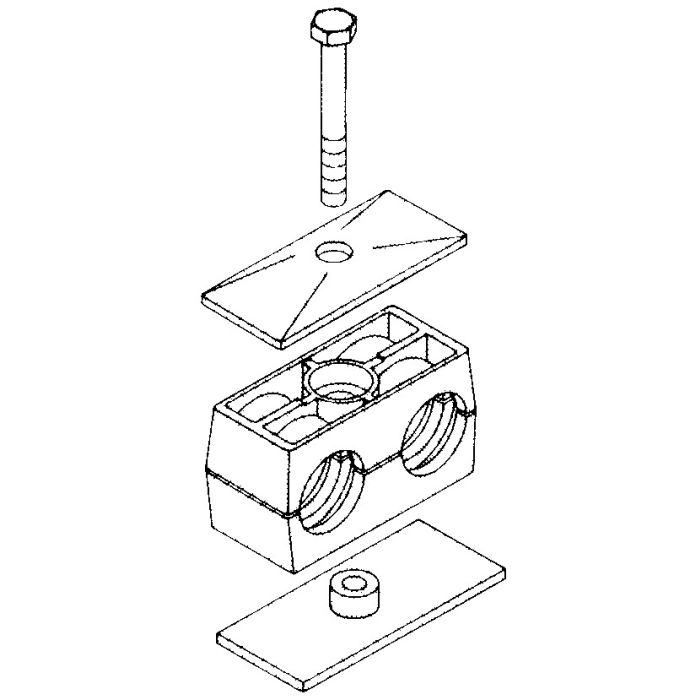

Twin Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 28 mm mm Size

Ask A Question

Description & Features

Constructed with durable polypropylene the Twin Series Pipe & Tubing Polypropylene Support Clamp features a single weld plate and hex head bolts with a cover plate designed precisely for a 28 mm size. This support clamp is ideal for securing pipes and tubing in various industrial applications.

Engineered to support equal or unequal outside diameters from 1/4" to 1-1/2" it is available in both weld plate and rail mounting styles. The smooth body I.D. makes it suitable for clamping hoses effectively. The recommended spacing for pipe varies: 1/4in requires 3FT 3/8in needs 4FT and so on up to 1-1/4in needing 8FT. For tubing the recommended spacing is from 3FT to 7FT depending on the size.

This versatile support clamp operates efficiently within a temperature range of -22deg;F to 194deg;F making it suitable for different industrial environments.

MPN: 6100082264

Supplier Part Number: 6100082264

Specifications

B2
1.18
Body I.D.
Smooth
Brand
Stauff Corporation
Brand
Stauff Corporation
Pack Size
1.00
UOM
EA
Group
4
H2
2.17
H3
0.94
Hose O.D.
1.10
I1
3.15
Materials
Polypropylene
Package Qty.
1
Size
28 mm
Supplier Part Number
6100082264
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number 6100082264, Alternate Part Number C1HG82, Alternate Part Number C1MC68, Alternate Part Number SP-428/28-PP-H-GD-AS-U-W10-K, Alternate Part Number SP-428/28-PPH-GD-AS-U-W10-#K, Alternate Part Number SP428/28PPHGD-ASUW10#K, Alternate Part Number SP428/28PPHGDASUW10#K, Alternate Part Number SP428/28PPHGDASUW10K
Product Weight
0.46 lbs

Similar Products

Model Number Size Pipe Size Tube Size Hose O.D. Group Materials Body I.D. Package Qty. B2 H2 H3 I1 Price Action
Twin Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 17.4 mm mm Size

STNA12839 Twin Series Support Clamp

17.4 mm

0.685

3

Polypropylene

Smooth

1

1.18

1.93

0.92

2.64

Twin Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 12.7 mm mm Size

STNA17378 Twin Series Support Clamp

12.7 mm

0.5

2

Polypropylene

Profiled

1

1.18

1.73

0.73

2.09

Twin Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 21.3 mm mm Size

SP3213/213DPPGDA Twin Series Support Clamp

21.3 mm

0.5

0.84

3D

Polypropylene

Profiled

1

1.18

2.17

0.92

2.64

Twin Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 9.5 mm mm Size

6100081837 Twin Series Support Clamp

9.5 mm

0.375

2

Polypropylene

Profiled

1

1.18

1.73

0.73

2.09

Twin Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 13.4 mm mm Size

STNA12801 Twin Series Support Clamp

13.4 mm

0.25

0.528

3

Polypropylene

Smooth

1

1.18

1.93

0.92

2.64

Twin Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 19 mm mm Size

STNA12846 Twin Series Support Clamp

19 mm

0.75

3

Polypropylene

Profiled

1

1.18

1.93

0.93

2.64

Twin Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 28 mm mm Size

STNA12897 Twin Series Support Clamp

28 mm

1.102

4

Polypropylene

Smooth

1

1.18

2.17

0.94

3.15

Twin Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 35.7 mm mm Size

STNA12919 Twin Series Support Clamp

35.7 mm

1.406

5

Polypropylene

Smooth

1

1.18

2.72

1.22

4.17

Product Questions & Answers (1)

Question by: Lyle H on Apr 2, 2026, 6:45 PM
trying to clamp a 28 mm line, is this the right size clamp or am i mixing up mm and inch sizes?
Answer by: Customer Support on Apr 4, 2026, 3:21 PM
For sizing, the clamp is a 28 mm size, and the note provided is mm size x 0.03937 = inch size. Using that conversion, 28 mm comes out to about 1.10 inches.
