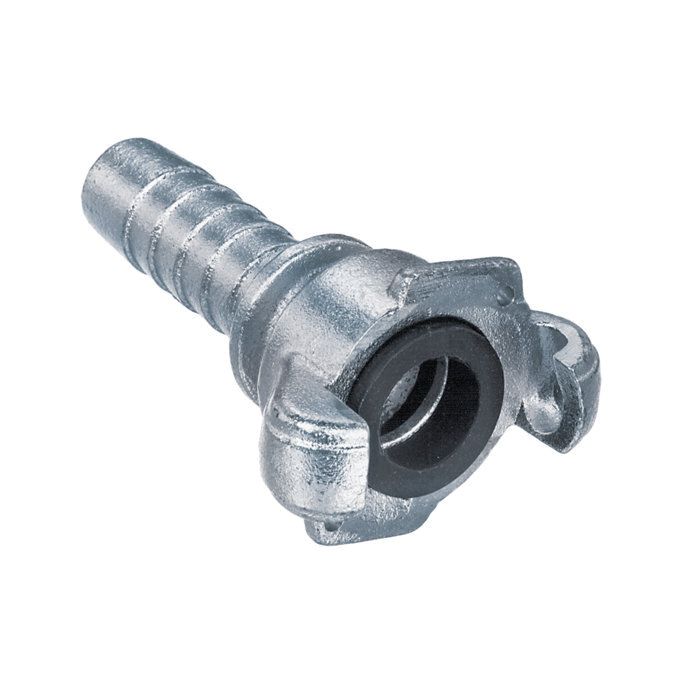

Cast Steel Universal Air Hose Coupling, 1 Inch ID Hose Barb

Description & Features

The Kuriyama of America Inc Universal Barb Air Hose Coupling is engineered for air and water service applications. This coupling is made from durable cast steel ensuring long-lasting performance and resistance to wear and tear. The 1 inch ID hose barb design provides a secure reliable connection.

It operates efficiently within a temperature range of -20F to 160F given the standard rubber washer and is pressure-rated up to 150 PSI at 70F ambient temperature. This fitting is suitable for various industrial environments requiring secure air and water hose connections.

The coupling features a two-lug design increasing stability during use. Note that the working pressure can vary depending on the hose construction clamp type and placement.

MPN: C1JN91

Supplier Part Number: HE-100

Specifications

Brand Kuriyama Of America Inc	Brand Kuriyama Of America	Pack Size 1.00	UOM EA	Materials Cast Steel	Mfg. Name Kuriyama	Seal Material Rubber	Size 1	Supplier Part Number HE-100	Alternate Part Numbers Alternate Part Number C1JN91, Alternate Part Number MI-02375044, Alternate Part Number MINO-00501F80765	Product Weight 0.67 lbs

Similar Products

Model Number	Size	Materials	Seal Material	Price	Action
HE-50 Universal Barb Air Hose Coupling	1/2	Cast Steel	Rubber
HE-75 Universal Barb Air Hose Coupling	3/4	Cast Steel	Rubber

Product Questions & Answers (3)

Question by: Carl B on Dec 12, 2025, 9:53 PM

got a 1 inch air hose here, is this the kind of fitting that just shoves in and clamps down on the barb?

Answer by: Customer Support on Dec 14, 2025, 6:08 AM

For a 1 inch ID hose, the 1 inch hose barb is meant to insert into the hose and be secured with clamps. Keep in mind the working pressure can change based on the hose construction, the clamp type, how many clamps you use, and where they’re placed.

Question by: Frank H on Apr 11, 2025, 7:27 AM

what's the temp range on this thing? got an outdoor setup that sees some pretty cold winters and hot summers

Answer by: Customer Support on Apr 12, 2025, 9:55 AM

Rated for use between -20°F and 160°F with the standard rubber washer, so seasonal swings in most climates won't be a problem. Just keep in mind that rating applies to the washer included. If you swap it out for a different seal material down the road, that range could change.

Question by: Carl R on Jan 3, 2026, 4:13 PM

Is this compatible with standard air hose fittings, or do I need special adapters?

Answer by: Customer Support on Jan 5, 2026, 1:41 PM

This coupling uses a 1-inch ID hose barb, which is a pretty common size. It should work with most standard air hose clamps and fittings designed for that size, but always double-check your specific hose and clamp to make sure you've got a good match.
