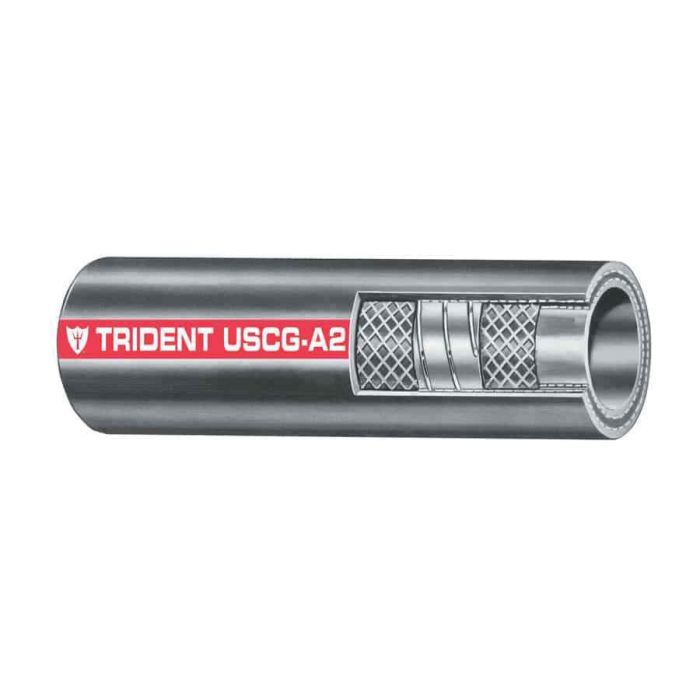

USCG Type A2 SAE J1527 Fuel Fill Hose, 1.50 Inch ID, Up To 60.00 PSI

Ask A Question

Description & Features

Designed for demanding marine settings, this high-quality hose ensures reliable performance in fuel systems. It features a diameter of 1.5 inches and boasts a maximum operating pressure of 60 PSI. This Marine Hose by Trident Rubber LLC meets the stringent standards of USCG Type A2 SAE J1527.

With an outer diameter of 2 inches and a minimum bend radius of 5.5 inches, this hose offers excellent flexibility and durability. It includes a unique "Barrier Liner" construction, preventing fuel from direct contact with rubber, thereby significantly reducing fuel permeation and extending the hose's lifespan.

The product is designed to accommodate shank type fittings, typically made from brass or stainless steel, and should be secured with stainless steel T-Bolt clamps for optimal performance. This construction provides superior resistance to aging, fire, heat, cold, and ozone, ensuring reliability and safety in critical applications.

Excellent for both gasoline (including ethanol blends) and diesel (including biodiesel blends), it complies with ABYC H-24 & H-33, SAE J1527, ISO 7840 standards and is NMMA Type Accepted. Additionally, it holds CARB Executive Order and EPA Certification for low permeation Type A1-15, ensuring environmentally safe performance.

Supplier Part Number: 327-1126

Specifications

Brand
Trident Rubber LLC
Brand
Trident Rubber
Pack Size
12.00
UOM
FT
Hose I.D.
1.50
Hose O.D.
2
Maximum Operating Pressure
60
Minimum Bend Radius
5.50
Minimum Bend Radius
5.5
Package Qty.
50 ft roll
Supplier Part Number
327-1126
Alternate Part Numbers
Alternate Part Number C1FT63
Product Weight
0.51 lbs

Key Applications

This Trident marine fuel fill hose is designed for professional and recreational vessels that require dependable, compliant fuel delivery solutions.

Common applications include:

  • Fuel fill lines for inboard and outboard marine engines

  • Boat fuel tank connections for gasoline and diesel systems

  • Marine generator and auxiliary fuel tank systems

  • Dockside fuel transfer systems requiring USCG Type A2 compliance

For more marine hose options, visit our Marine Hoses or Fuel Hoses categories.

Compatibility & Installation Notes

For best results, use stainless steel or brass T-Bolt clamps when securing this hose to fittings. Avoid bending tighter than the 5.5-inch minimum radius to maintain hose integrity. This hose is suitable for both above-deck and below-deck fuel fill installations. It is fully compatible with ethanol-blended gasoline and biodiesel fuel.

About the Manufacturer

Trident Rubber LLC, known in the marine industry as Trident Marine, manufactures high-performance marine hoses and accessories engineered for fuel, exhaust, and water systems. Each Trident Marine hose meets or exceeds USCG, ABYC, and ISO standards for safety, low permeation, and durability.

With more than 40 years of experience, Trident Marine continues to supply OEMs, shipbuilders, and maintenance professionals worldwide with hoses designed for reliability in demanding marine environments.

Learn more about Hydraulic Supply Company’s offerings for the Marine and Shipbuilding industry.

FAQs

What Does USCG Type A2 SAE J1527 Certification Mean?

It indicates the hose meets U.S. Coast Guard and SAE standards for low fuel permeation, flame resistance, and durability in marine applications.

Can this Hose Be Used with Ethanol Fuel?

Yes, this hose is ethanol-safe and compatible with gasoline, E10, E85, diesel, and biodiesel blends.

What is the Minimum Bend Radius for this Hose?

The minimum bend radius is 5.5 inches. Exceeding this radius may reduce flexibility or cause stress cracking.

Is this Hose Approved for Below-Deck Fuel Fill Systems?

Yes, this USCG Type A2 hose is approved for both above-deck and below-deck fuel fill applications when properly clamped and routed.

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Minimum Bend Radius Vacuum Service Package Qty. Price Action
USCG Type A2 SAE J1527 Fuel Fill Hose, 0.75 Inch ID, Up To 100.00 PSI

327-0346 USCG Type A2 Fuel Fill Hose

0.75

1.2

100

2.5

50 ft roll

USCG Type A2 SAE J1527 Fuel Fill Hose, 1.00 Inch ID, Up To 80.00 PSI

327-1006 USCG Type A2 Fuel Fill Hose

1

1.42

80

3

50 ft roll

USCG Type A2 SAE J1527 Fuel Fill Hose, 1.25 Inch ID, Up To 70.00 PSI

327-1146 USCG Type A2 Fuel Fill Hose

1.25

1.7

70

4.5

50 ft roll

USCG Type A2 SAE J1527 Fuel Fill Hose, 2.00 Inch ID, Up To 50.00 PSI

327-2006 USCG Type A2 Fuel Fill Hose

2

2.5

50

7

50 ft roll

Product Questions & Answers (3)

Question by: Sheila W on Mar 13, 2025, 10:44 AM
reckon this hose can handle much pressure for fillin up my boat tank
Answer by: Customer Support on Mar 15, 2025, 8:55 AM
Rated for up to 60 PSI, which suits standard fuel fill needs under USCG Type A2 and SAE J1527 specs.
Question by: Rhonda K on Oct 8, 2025, 1:51 PM
How tough is this hose for handling fuel pressure?
Answer by: Customer Support on Oct 9, 2025, 5:57 PM
This hose can handle up to 60 PSI, making it robust enough for standard fuel filling needs. It's designed to meet USCG Type A2 and SAE J1527 specifications, ensuring it works well in marine environments where reliable fuel transfer is crucial.
Question by: Bobby C on Nov 24, 2025, 6:47 AM
What kind of pressure can this hose handle?
Answer by: Customer Support on Nov 25, 2025, 4:28 PM
This USCG Type A2 SAE J1527 fuel fill hose is rated for pressures up to 60.00 PSI.
