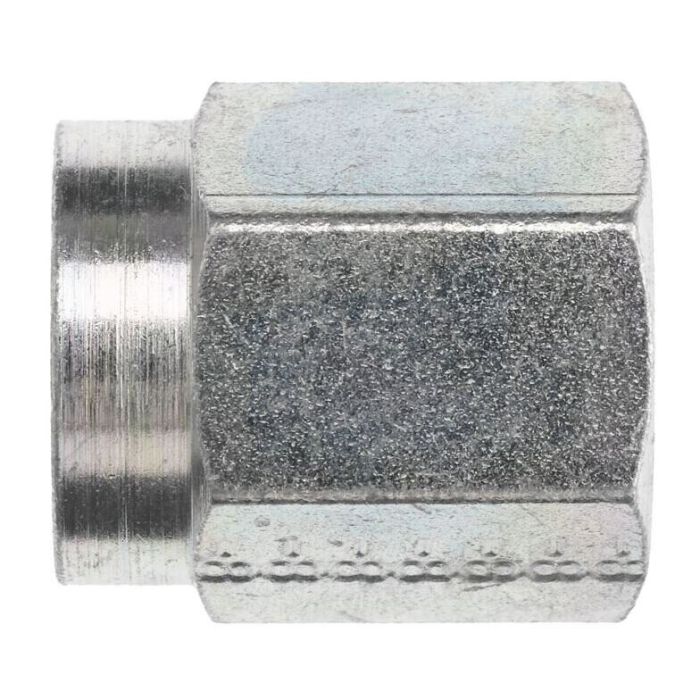

04JIC Flareless Nut

Description & Features

The 04JIC Flareless Nut is designed for secure and leak-free connections in high-pressure hydraulic systems. Manufactured from straight steel, this durable nut is built to withstand demanding industrial environments. With a thread size of 7/16-20, it accommodates a tube outer diameter of 1/4 inch, ensuring compatibility with standard hydraulic tubing. The female JIC flareless design provides a reliable seal without the need for flaring, simplifying installation and maintenance.

This product features a Brennan C Hex measurement of 0.562 mm and an overall length of 0.830 mm, making it compact and efficient for various applications. As part of the Brennan Industries V0318 series, this nut is crafted with precision to meet industry standards. Please note that California residents should be aware of the PROP-65 warning associated with this product.

SKU: V0318-04

Supplier Part Number (MPN): V0318-04

Specifications

Brand BRENNAN	Connection Size 1 1/4 in	Connection Type JIC	Connection Type 1 JIC	Dimension Standards SAE 070110	Dimensions 0.62 in L	Finish Trivalent Zinc-Plated	Fitting Type Nut	Hex Size 0.563 in	Material Steel	Material Construction Steel	Series V0318 Series	Thread B1 Drill 7/16-20	Thread Size 7/16-20	Tube OD 1/4 in

Similar Products

Model Number	Connection Size 1	Thread Size	Hex Size
V0318-05	5/16 in	1/2-20	5/8 in
V0318-06	3/8 in	9/16-18	11/16 in
V0318-08	1/2 in	3/4-16	7/8 in
V0318-10	5/8 in	7/8-14	1 x 1 in
V0318-12	3/4 in	11/16-12	1-1/4
V0318-16	1 in	1-5/16-12	1-1/2 in
