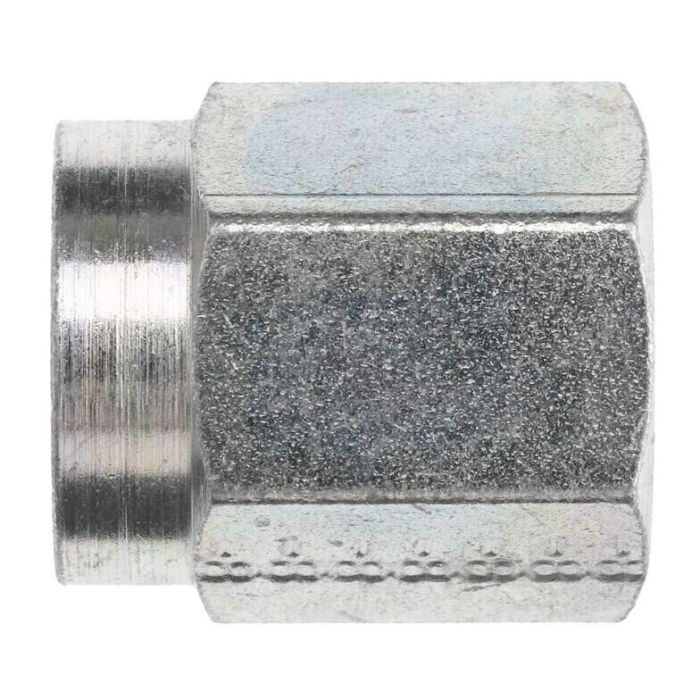

05JIC Flareless Nut

Description & Features

Constructed from durable straight steel, the 05JIC Flareless Nut is expertly designed for industrial hydraulic systems demanding reliable connections. Featuring a female JIC flareless design, it accommodates a tube outer diameter of 5/16 inches with a thread size of 1/2-20, providing a secure and leak-resistant fit. With a compact overall length of 0.830 mm and a hex size of 0.625 mm, this nut facilitates easy installation and maintenance in confined spaces.

Manufactured by Brennan Industries, the 05JIC Flareless Nut belongs to the V0318 series, ensuring compatibility and interchangeability within this range. Please note the PROP-65 warning for California residents, a compliance measure for safety and environmental standards.

SKU: V0318-05

Supplier Part Number (MPN): V0318-05

Specifications

Brand BRENNAN	Connection Size 1 5/16 in	Connection Type JIC	Connection Type 1 JIC	Dimension Standards SAE 070110	Dimensions 0.68 in L	Finish Trivalent Zinc-Plated	Fitting Type Nut	Hex Size 5/8 in	Material Steel	Material Construction Steel	Series V0318 Series	Thread B1 Drill 1/2-20	Thread Size 1/2-20

Similar Products

Model Number	Connection Size 1	Thread Size	Hex Size
V0318-04	1/4 in	7/16-20	0.563 in
V0318-06	3/8 in	9/16-18	11/16 in
V0318-08	1/2 in	3/4-16	7/8 in
V0318-10	5/8 in	7/8-14	1 x 1 in
V0318-12	3/4 in	11/16-12	1-1/4
V0318-16	1 in	1-5/16-12	1-1/2 in

Product Questions & Answers (1)

Question by: Debbie W on Aug 19, 2025, 1:40 PM

I need a flareless nut for a hydraulic line with a 5/16 outer diameter. Will this one work?

Answer by: Customer Support on Aug 21, 2025, 9:10 AM

This 05JIC flareless nut is designed specifically for tubes with a 5/16 inch outer diameter. It should provide a secure, leak-resistant fit in your hydraulic system.
