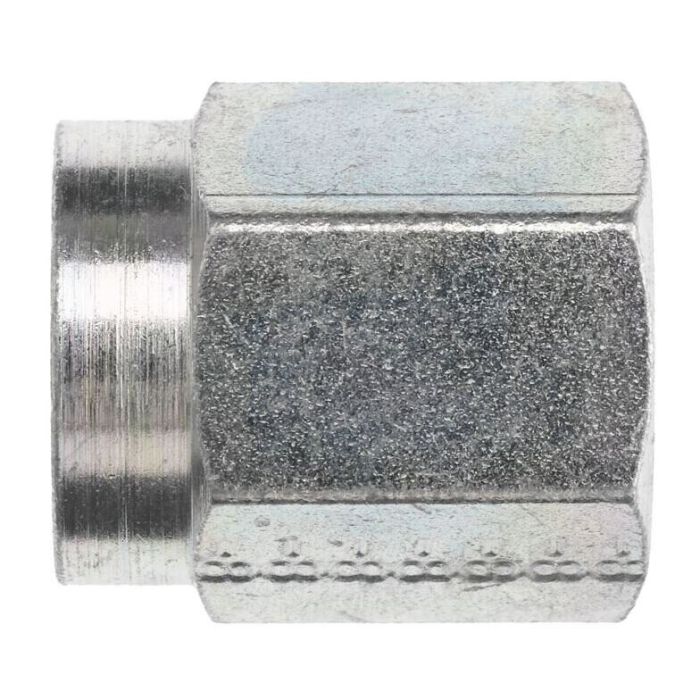

16JIC Flareless Nut

Description & Features

Designed for use with 1-inch OD tubing, this straight steel flareless nut features a 1-5/16-12 female JIC thread and is built to Brennan Industries' V0318 series specification. The hex measures 1.500 inches across and the overall length is 1.400 inches, making it a compact fitting component suited to tight hydraulic assemblies.

The 16JIC Flareless Nut is manufactured from straight steel, providing reliable mechanical performance in standard hydraulic line connections where a flareless tube end configuration is required. California residents should note that this product carries a Prop 65 warning per Brennan Industries' compliance guidelines.

SKU: V0318-16

Supplier Part Number (MPN): V0318-16

Specifications

Brand BRENNAN	Connection Size 1 1 in	Connection Type JIC	Connection Type 1 JIC	Dimension Standards SAE 070110	Dimensions 1.13 in L	Finish Trivalent Zinc-Plated	Fitting Type Nut	Hex Size 1-1/2 in	Material Steel	Material Construction Steel	Series V0318 Series	Thread B1 Drill 1-5/16-12	Thread Size 1-5/16-12

Similar Products

Model Number	Connection Size 1	Thread Size	Hex Size
V0318-04	1/4 in	7/16-20	0.563 in
V0318-05	5/16 in	1/2-20	5/8 in
V0318-06	3/8 in	9/16-18	11/16 in
V0318-08	1/2 in	3/4-16	7/8 in
V0318-10	5/8 in	7/8-14	1 x 1 in
V0318-12	3/4 in	11/16-12	1-1/4
