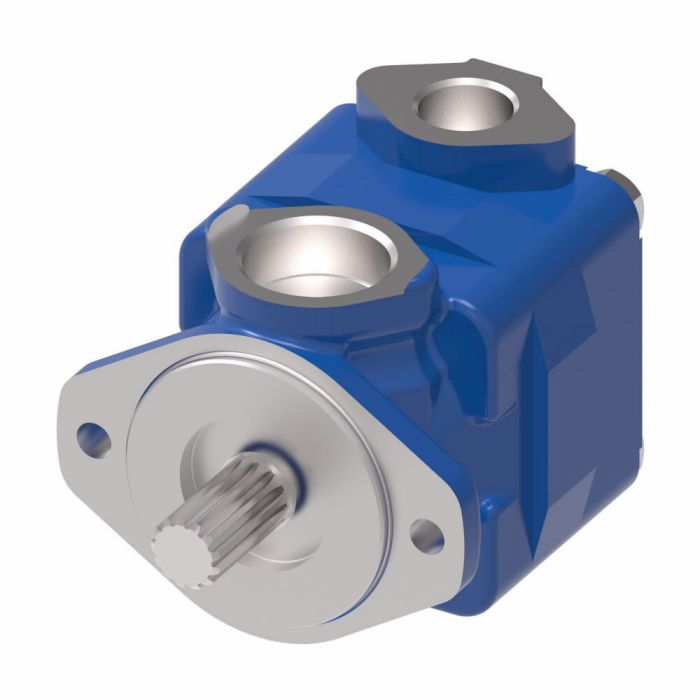

main product photo

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

Ask A Question

Description & Features

The V20 Series Vane Pump from Danfoss Power Solutions is engineered with a robust pressure-balanced modular 12-vane design which significantly reduces noise and flow pulsation. Ideal for applications in the oil and gas sector metal cutting dump trucks wheel loaders and plastic injection molding. Its 11 ring size and 3/4" straight keyed shaft provide optimal performance and reliability.

This pump supports a maximum pressure capacity of 2500 PSI and a speed rating of 2500 RPM ensuring high efficiency and durability for demanding tasks.

With a rated flow of 16.5 GPM the V20 Series Vane Pump facilitates efficient fluid handling. The NPT ports and the inline inlet/outlet configuration make it adaptable and convenient for various configurations. It uses Buna-N seals enhancing its compatibility with different fluids.

Model Number: V20-1P11P-1C11

Supplier Part Number: 372617-3

The mounting flange options include 2-Bolt SAE A or 2-Bolt SAE B making it versatile for diverse installations. The clockwise rotation and 1-1/4" NPT inlet and 3/4" NPT outlet connections further streamline this product's usability for industry-specific requirements.

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
2.22
Displacement
2.22
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Pressure-balanced, modular 12-vane design|Reduces noise and flow pulsation|Wide range of available displacements
Maximum Pressure
2500
Maximum Pressure
2500
Port Location
Inline with Inlet
Ports
NPT
Ports
NPT
Rated Flow
16.50
Rated Flow
16.5
Ring Size
11
Ring Size
11
Rotation
CW
Seal Material
Buna-N
Series
V20
Shaft
3/4 straight Keyed
Shaft
3/4 straight Keyed
Special Features
None
Speed Rating
2500 RPM
Speed Rating
2500 RPM
Supplier Part Number
372617-3
Alternate Part Numbers
Alternate Part Number C1BM51, Alternate Part Number V201P11P1C11
Product Weight
18.00 lbs
