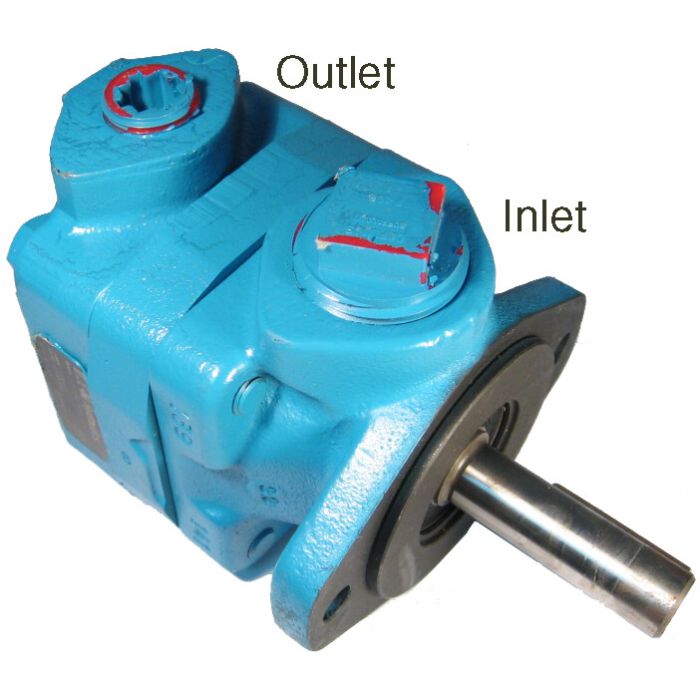

main product photo

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

Ask A Question

Description & Features

Experience the reliability and efficiency of the V20 Series Vane Pump, designed for demanding industrial applications such as oil and gas, metal cutting, and plastic injection molding. The 07 ring size with a 3/4 straight keyed shaft ensures precise performance, while the NPT ports offer seamless integration with existing systems. With a displacement of 1.39 and a rated flow of 10.5, this pump delivers consistent pressure up to 2500 PSI in counter-clockwise (CCW) rotation. The pressure-balanced, modular 12-vane design reduces noise and flow pulsation, making it ideal for environments where noise reduction is crucial.

Manufactured by Eaton Vickers, the pump features a 2-bolt SAE A or B mounting flange, aligning the outlet inline with the inlet for streamlined operation. With a maximum speed rating of 3000 RPM, the V20 Series Vane Pump is engineered for durability and high performance, ensuring long service life and minimal maintenance. Choose this pump for applications requiring robust and reliable fluid power solutions.

SKU: 394450-7

Supplier Part Number (MPN): 394450-7

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
1.39
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Pressure-balanced, modular 12-vane design|Reduces noise and flow pulsation|Wide range of available displacements
Maximum Pressure
2500
Port Location
Inline with Inlet
Ports
NPT
Rated Flow
10.50
Ring Size
07
Rotation
CCW
Seal Material
None
Series
V20
Shaft
3/4 straight Keyed
Special Features
None
Speed Rating
3000 RPM
Supplier Part Number
394450-7
Alternate Part Numbers
Alternate Part Number MINO-00900X55384
Product Weight
18.00 lbs

Related Documents

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-6S6S-15B11 V20 Series Vane Pump

02-102226-2

13 Tooth SAE B Splined

1.19

06

9

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-6S6S-15C11 V20 Series Vane Pump

02-102226-3

13 Tooth SAE B Splined

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-6S6S-15D11 V20 Series Vane Pump

02-102226-4

13 Tooth SAE B Splined

1.19

06

9

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-6S6S-15A11-L V20 Series Vane Pump

02-102226-5

13 Tooth SAE B Splined

1.19

06

9

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-6S6S-15C11-L V20 Series Vane Pump

02-102226-7

13 Tooth SAE B Splined

1.19

06

9

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-6S6S-15D11-L V20 Series Vane Pump

02-102226-8

13 Tooth SAE B Splined

1.19

06

9

90 deg CW from Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P10P-38B11 V20 Series Vane Pump

02-125318-2

11 Tooth Splined - Short

2

10

15

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P10P-38C11 V20 Series Vane Pump

02-125318-3

11 Tooth Splined - Short

2

10

15

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P10P-38D11 V20 Series Vane Pump

02-125318-4

11 Tooth Splined - Short

2

10

15

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P10P-38A11-L V20 Series Vane Pump

02-125318-5

11 Tooth Splined - Short

2

10

15

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P10P-38C11-L V20 Series Vane Pump

02-125318-7

11 Tooth Splined - Short

2

10

15

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-6S12S-15B11 V20 Series Vane Pump

02-142805-2

13 Tooth SAE B Splined

2.38

12

18

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-6S12S-15C11 V20 Series Vane Pump

02-142805-3

13 Tooth SAE B Splined

2.38

12

18

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-6S12S-15D11 V20 Series Vane Pump

02-142805-4

13 Tooth SAE B Splined

2.38

12

18

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-6S12S-15A11-L V20 Series Vane Pump

02-142805-5

13 Tooth SAE B Splined

2.38

12

18

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-6S12S-15C11-L V20 Series Vane Pump

02-142805-7

13 Tooth SAE B Splined

2.38

12

18

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 05 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P5P-11B11 V20 Series Vane Pump

02-143242-2

11 Tooth Splined Extended Length

1

05

7.5

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P5P-11C11 V20 Series Vane Pump

02-143242-3

11 Tooth Splined Extended Length

1

05

7.5

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P5P-11D11 V20 Series Vane Pump

02-143242-4

11 Tooth Splined Extended Length

1

05

7.5

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P5P-11A11-L V20 Series Vane Pump

02-143242-5

11 Tooth Splined Extended Length

1

05

7.5

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P5P-11C11-L V20 Series Vane Pump

02-143242-7

11 Tooth Splined Extended Length

1

05

7.5

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-6S8S-15B11 V20 Series Vane Pump

02-151574-2

13 Tooth SAE B Splined

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-6S8S-15C11 V20 Series Vane Pump

02-151574-3

13 Tooth SAE B Splined

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-6S8S-15D11 V20 Series Vane Pump

02-151574-4

13 Tooth SAE B Splined

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-6S8S-15A11-L V20 Series Vane Pump

02-151574-5

13 Tooth SAE B Splined

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-6S8S-15C11-L V20 Series Vane Pump

02-151574-7

13 Tooth SAE B Splined

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-6S8S-15D11-L V20 Series Vane Pump

02-151574-8

13 Tooth SAE B Splined

1.62

08

12

90 deg CW from Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S10S-38B11 V20 Series Vane Pump

02-151688-2

11 Tooth Splined - Short

2

10

15

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S10S-38C11 V20 Series Vane Pump

02-151688-3

11 Tooth Splined - Short

2

10

15

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S10S-38D11 V20 Series Vane Pump

02-151688-4

11 Tooth Splined - Short

2

10

15

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S10S-38A11-L V20 Series Vane Pump

02-151688-5

11 Tooth Splined - Short

2

10

15

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S10S-38C11-L V20 Series Vane Pump

02-151688-7

11 Tooth Splined - Short

2

10

15

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S12S-38C11 V20 Series Vane Pump

02-315408-3

11 Tooth Splined - Short

2.38

12

18

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S12S-38A11-L V20 Series Vane Pump

02-315408-5

11 Tooth Splined - Short

2.38

12

18

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S12S-38C11-L V20 Series Vane Pump

02-315408-7

11 Tooth Splined - Short

2.38

12

18

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S10S-1C11 V20 Series Vane Pump

02-322148-3

3/4 straight Keyed

2

10

15

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S10S-1D11 V20 Series Vane Pump

02-322148-4

3/4 straight Keyed

2

10

15

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S7S-38C11 V20 Series Vane Pump

02-334748-3

11 Tooth Splined - Short

1.39

07

10.5

Inline with Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S5S-1B11 V20 Series Vane Pump

02-345217-2

3/4 straight Keyed

1

05

7.5

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S5S-1C11 V20 Series Vane Pump

02-345217-3

3/4 straight Keyed

1

05

7.5

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-6S9S-15C11 V20 Series Vane Pump

02-345506-3

13 Tooth SAE B Splined

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-6S9S-15C11-L V20 Series Vane Pump

02-345506-7

13 Tooth SAE B Splined

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S13S-38B11-063 V20 Series Vane Pump

02-347239-2

11 Tooth Splined - Short

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S13S-38C11LH-063 V20 Series Vane Pump

02-347239-7

11 Tooth Splined - Short

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P9P-1B11 V20 Series Vane Pump

358357-2

3/4 straight Keyed

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P9P-1C11 V20 Series Vane Pump

358357-3

3/4 straight Keyed

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P9P-1D11 V20 Series Vane Pump

358357-4

3/4 straight Keyed

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P9P-1A11-L V20 Series Vane Pump

358357-5

3/4 straight Keyed

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P9P-1C11-L V20 Series Vane Pump

358357-7

3/4 straight Keyed

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1P9P-1D11-L V20 Series Vane Pump

358357-8

3/4 straight Keyed

1.81

09

13.5

90 deg CW from Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S11S-1B11 V20 Series Vane Pump

358358-2

3/4 straight Keyed

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S11S-1C11 V20 Series Vane Pump

358358-3

3/4 straight Keyed

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S11S-1D11 V20 Series Vane Pump

358358-4

3/4 straight Keyed

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S11S-1A11-L V20 Series Vane Pump

358358-5

3/4 straight Keyed

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S11S-1C11-L V20 Series Vane Pump

358358-7

3/4 straight Keyed

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S13S-1B11 V20 Series Vane Pump

372561-2

3/4 straight Keyed

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S13S-1C11 V20 Series Vane Pump

372561-3

3/4 straight Keyed

2.59

13

19.5

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S13S-1D11 V20 Series Vane Pump

372561-4

3/4 straight Keyed

2.59

13

19.5

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S13S-1A11-L V20 Series Vane Pump

372561-5

3/4 straight Keyed

2.59

13

19.5

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S13S-1C11-L V20 Series Vane Pump

372561-7

3/4 straight Keyed

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S8S-1B11 V20 Series Vane Pump

372564-2

3/4 straight Keyed

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S8S-1C11 V20 Series Vane Pump

372564-3

3/4 straight Keyed

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S8S-1D11 V20 Series Vane Pump

372564-4

3/4 straight Keyed

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S8S-1A11-L V20 Series Vane Pump

372564-5

3/4 straight Keyed

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S8S-1C11-L V20 Series Vane Pump

372564-7

3/4 straight Keyed

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1S8S-1D11-L V20 Series Vane Pump

372564-8

3/4 straight Keyed

1.62

08

12

90 deg CW from Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S11S-11B11 V20 Series Vane Pump

372580-2

11 Tooth Splined Extended Length

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S11S-11C11 V20 Series Vane Pump

372580-3

11 Tooth Splined Extended Length

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S11S-11D11 V20 Series Vane Pump

372580-4

11 Tooth Splined Extended Length

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S11S-11A11-L V20 Series Vane Pump

372580-5

11 Tooth Splined Extended Length

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S11S-11C11-L V20 Series Vane Pump

372580-7

11 Tooth Splined Extended Length

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S6S-1B11 V20 Series Vane Pump

372585-2

3/4 straight Keyed

1.19

06

9

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S6S-1C11 V20 Series Vane Pump

372585-3

3/4 straight Keyed

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S6S-1D11 V20 Series Vane Pump

372585-4

3/4 straight Keyed

1.19

06

9

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S6S-1A11-L V20 Series Vane Pump

372585-5

3/4 straight Keyed

1.19

06

9

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S6S-1C11-L V20 Series Vane Pump

372585-7

3/4 straight Keyed

1.19

06

9

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1S6S-1D11-L V20 Series Vane Pump

372585-8

3/4 straight Keyed

1.19

06

9

90 deg CW from Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S9S-1B11 V20 Series Vane Pump

372586-2

3/4 straight Keyed

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S9S-1C11 V20 Series Vane Pump

372586-3

3/4 straight Keyed

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S9S-1D11 V20 Series Vane Pump

372586-4

3/4 straight Keyed

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S9S-1A11-L V20 Series Vane Pump

372586-5

3/4 straight Keyed

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CCW Rotation

V20-1S9S-1B11-L V20 Series Vane Pump

372586-6

3/4 straight Keyed

1.81

09

13.5

90 deg CCW from Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S9S-1C11-L V20 Series Vane Pump

372586-7

3/4 straight Keyed

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1S9S-1D11-L V20 Series Vane Pump

372586-8

3/4 straight Keyed

1.81

09

13.5

90 deg CW from Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S11S-15B11 V20 Series Vane Pump

372591-2

13 Tooth SAE B Splined

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S11S-15C11 V20 Series Vane Pump

372591-3

13 Tooth SAE B Splined

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S11S-15D11 V20 Series Vane Pump

372591-4

13 Tooth SAE B Splined

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S11S-15A11-L V20 Series Vane Pump

372591-5

13 Tooth SAE B Splined

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S11S-15C11-L V20 Series Vane Pump

372591-7

13 Tooth SAE B Splined

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S6S-11C11 V20 Series Vane Pump

372594-3

11 Tooth Splined Extended Length

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S13S-15B11 V20 Series Vane Pump

372598-2

13 Tooth SAE B Splined

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S13S-15C11 V20 Series Vane Pump

372598-3

13 Tooth SAE B Splined

2.59

13

19.5

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S13S-15D11 V20 Series Vane Pump

372598-4

13 Tooth SAE B Splined

2.59

13

19.5

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S13S-15A11-L V20 Series Vane Pump

372598-5

13 Tooth SAE B Splined

2.59

13

19.5

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S13S-15C11-L V20 Series Vane Pump

372598-7

13 Tooth SAE B Splined

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1S13S-15D11-L V20 Series Vane Pump

372598-8

13 Tooth SAE B Splined

2.59

13

19.5

90 deg CW from Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P13P-1B11 V20 Series Vane Pump

372606-2

3/4 straight Keyed

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P13P-1C11 V20 Series Vane Pump

372606-3

3/4 straight Keyed

2.59

13

19.5

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P13P-1D11 V20 Series Vane Pump

372606-4

3/4 straight Keyed

2.59

13

19.5

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P13P-1A11-L V20 Series Vane Pump

372606-5

3/4 straight Keyed

2.59

13

19.5

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CCW Rotation

V20-1P13P-1B11-L V20 Series Vane Pump

372606-6

3/4 straight Keyed

2.59

13

19.5

90 deg CCW from Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P13P-1C11-L V20 Series Vane Pump

372606-7

3/4 straight Keyed

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1P13P-1D11-L V20 Series Vane Pump

372606-8

3/4 straight Keyed

2.59

13

19.5

90 deg CW from Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P6P-1B11 V20 Series Vane Pump

372613-2

3/4 straight Keyed

1.19

06

9

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P6P-1C11 V20 Series Vane Pump

372613-3

3/4 straight Keyed

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P6P-1D11 V20 Series Vane Pump

372613-4

3/4 straight Keyed

1.19

06

9

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P6P-1A11-L V20 Series Vane Pump

372613-5

3/4 straight Keyed

1.19

06

9

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CCW Rotation

V20-1P6P-1B11-L V20 Series Vane Pump

372613-6

3/4 straight Keyed

1.19

06

9

90 deg CCW from Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P6P-1C11-L V20 Series Vane Pump

372613-7

3/4 straight Keyed

1.19

06

9

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1P6P-1D11-L V20 Series Vane Pump

372613-8

3/4 straight Keyed

1.19

06

9

90 deg CW from Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P11P-1B11 V20 Series Vane Pump

372617-2

3/4 straight Keyed

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P11P-1C11 V20 Series Vane Pump

372617-3

3/4 straight Keyed

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P11P-1D11 V20 Series Vane Pump

372617-4

3/4 straight Keyed

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P11P-1A11-L V20 Series Vane Pump

372617-5

3/4 straight Keyed

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CCW Rotation

V20-1P11P-1B11-L V20 Series Vane Pump

372617-6

3/4 straight Keyed

2.22

11

16.5

90 deg CCW from Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P11P-1C11-L V20 Series Vane Pump

372617-7

3/4 straight Keyed

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1P11P-1D11-L V20 Series Vane Pump

372617-8

3/4 straight Keyed

2.22

11

16.5

90 deg CW from Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P8P-1B11 V20 Series Vane Pump

372639-2

3/4 straight Keyed

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P8P-1C11 V20 Series Vane Pump

372639-3

3/4 straight Keyed

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P8P-1D11 V20 Series Vane Pump

372639-4

3/4 straight Keyed

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P8P-1A11-L V20 Series Vane Pump

372639-5

3/4 straight Keyed

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P8P-1C11-L V20 Series Vane Pump

372639-7

3/4 straight Keyed

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P8P-15B11 V20 Series Vane Pump

372736-2

13 Tooth SAE B Splined

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P8P-15C11 V20 Series Vane Pump

372736-3

13 Tooth SAE B Splined

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P8P-15D11 V20 Series Vane Pump

372736-4

13 Tooth SAE B Splined

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P8P-15A11-L V20 Series Vane Pump

372736-5

13 Tooth SAE B Splined

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P8P-15C11-L V20 Series Vane Pump

372736-7

13 Tooth SAE B Splined

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P6P-11B11 V20 Series Vane Pump

372746-2

11 Tooth Splined Extended Length

1.19

06

9

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P6P-11C11 V20 Series Vane Pump

372746-3

11 Tooth Splined Extended Length

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P6P-11D11 V20 Series Vane Pump

372746-4

11 Tooth Splined Extended Length

1.19

06

9

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P6P-11A11-L V20 Series Vane Pump

372746-5

11 Tooth Splined Extended Length

1.19

06

9

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P6P-11C11-L V20 Series Vane Pump

372746-7

11 Tooth Splined Extended Length

1.19

06

9

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P8P-11B11 V20 Series Vane Pump

372756-2

11 Tooth Splined Extended Length

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P8P-11C11 V20 Series Vane Pump

372756-3

11 Tooth Splined Extended Length

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P8P-11D11 V20 Series Vane Pump

372756-4

11 Tooth Splined Extended Length

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P8P-11A11-L V20 Series Vane Pump

372756-5

11 Tooth Splined Extended Length

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P8P-11C11-L V20 Series Vane Pump

372756-7

11 Tooth Splined Extended Length

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P13P-15B11 V20 Series Vane Pump

373669-2

13 Tooth SAE B Splined

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P13P-15C11 V20 Series Vane Pump

373669-3

13 Tooth SAE B Splined

2.59

13

19.5

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P13P-15D11 V20 Series Vane Pump

373669-4

13 Tooth SAE B Splined

2.59

13

19.5

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P13P-15A11-L V20 Series Vane Pump

373669-5

13 Tooth SAE B Splined

2.59

13

19.5

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P13P-15C11-L V20 Series Vane Pump

373669-7

13 Tooth SAE B Splined

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S8S-15B11 V20 Series Vane Pump

373670-2

13 Tooth SAE B Splined

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S8S-15C11 V20 Series Vane Pump

373670-3

13 Tooth SAE B Splined

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P13P-11B11 V20 Series Vane Pump

374344-2

11 Tooth Splined Extended Length

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P13P-11C11 V20 Series Vane Pump

374344-3

11 Tooth Splined Extended Length

2.59

13

19.5

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P13P-11D11 V20 Series Vane Pump

374344-4

11 Tooth Splined Extended Length

2.59

13

19.5

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P13P-11A11-L V20 Series Vane Pump

374344-5

11 Tooth Splined Extended Length

2.59

13

19.5

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CCW Rotation

V20-1P13P-11B11-L V20 Series Vane Pump

374344-6

11 Tooth Splined Extended Length

2.59

13

19.5

90 deg CCW from Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P13P-11C11-L V20 Series Vane Pump

374344-7

11 Tooth Splined Extended Length

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1P13P-11D11-L V20 Series Vane Pump

374344-8

11 Tooth Splined Extended Length

2.59

13

19.5

90 deg CW from Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S9S-15B11 V20 Series Vane Pump

380297-2

13 Tooth SAE B Splined

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S9S-15C11 V20 Series Vane Pump

380297-3

13 Tooth SAE B Splined

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S9S-15D11 V20 Series Vane Pump

380297-4

13 Tooth SAE B Splined

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S9S-15A11-L V20 Series Vane Pump

380297-5

13 Tooth SAE B Splined

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S9S-15C11-L V20 Series Vane Pump

380297-7

13 Tooth SAE B Splined

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P9P-11B11 V20 Series Vane Pump

383526-2

11 Tooth Splined Extended Length

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P9P-11C11 V20 Series Vane Pump

383526-3

11 Tooth Splined Extended Length

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P9P-11D11 V20 Series Vane Pump

383526-4

11 Tooth Splined Extended Length

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P9P-11A11-L V20 Series Vane Pump

383526-5

11 Tooth Splined Extended Length

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P9P-11C11-L V20 Series Vane Pump

383526-7

11 Tooth Splined Extended Length

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S8S-11B11 V20 Series Vane Pump

385533-2

11 Tooth Splined Extended Length

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S8S-11C11 V20 Series Vane Pump

385533-3

11 Tooth Splined Extended Length

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S8S-11D11 V20 Series Vane Pump

385533-4

11 Tooth Splined Extended Length

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S8S-11A11-L V20 Series Vane Pump

385533-5

11 Tooth Splined Extended Length

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S8S-11C11-L V20 Series Vane Pump

385533-7

11 Tooth Splined Extended Length

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P6P-15B11 V20 Series Vane Pump

385535-2

13 Tooth SAE B Splined

1.19

06

9

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P6P-15C11 V20 Series Vane Pump

385535-3

13 Tooth SAE B Splined

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P6P-15D11 V20 Series Vane Pump

385535-4

13 Tooth SAE B Splined

1.19

06

9

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P6P-15A11-L V20 Series Vane Pump

385535-5

13 Tooth SAE B Splined

1.19

06

9

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P6P-15C11-L V20 Series Vane Pump

385535-7

13 Tooth SAE B Splined

1.19

06

9

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P6P-38B11 V20 Series Vane Pump

389463-2

11 Tooth Splined - Short

1.19

06

9

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P6P-38C11 V20 Series Vane Pump

389463-3

11 Tooth Splined - Short

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P6P-38D11 V20 Series Vane Pump

389463-4

11 Tooth Splined - Short

1.19

06

9

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P6P-38A11-L V20 Series Vane Pump

389463-5

11 Tooth Splined - Short

1.19

06

9

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P6P-38C11-L V20 Series Vane Pump

389463-7

11 Tooth Splined - Short

1.19

06

9

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P11P-11B11 V20 Series Vane Pump

390925-2

11 Tooth Splined Extended Length

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P11P-11C11 V20 Series Vane Pump

390925-3

11 Tooth Splined Extended Length

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P11P-11D11 V20 Series Vane Pump

390925-4

11 Tooth Splined Extended Length

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P11P-11A11-L V20 Series Vane Pump

390925-5

11 Tooth Splined Extended Length

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P11P-11C11-L V20 Series Vane Pump

390925-7

11 Tooth Splined Extended Length

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1P11P-11D11-L V20 Series Vane Pump

390925-8

11 Tooth Splined Extended Length

2.22

11

16.5

90 deg CW from Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P10P-1B11 V20 Series Vane Pump

391763-2

3/4 straight Keyed

2

10

15

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P10P-1C11 V20 Series Vane Pump

391763-3

3/4 straight Keyed

2

10

15

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P10P-1D11 V20 Series Vane Pump

391763-4

3/4 straight Keyed

2

10

15

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P10P-1A11-L V20 Series Vane Pump

391763-5

3/4 straight Keyed

2

10

15

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P10P-1C11-L V20 Series Vane Pump

391763-7

3/4 straight Keyed

2

10

15

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S7S-1B11 V20 Series Vane Pump

393719-2

3/4 straight Keyed

1.39

07

10.5

90 deg CCW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S7S-1C11 V20 Series Vane Pump

393719-3

3/4 straight Keyed

1.39

07

10.5

Inline with Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S7S-1D11 V20 Series Vane Pump

393719-4

3/4 straight Keyed

1.39

07

10.5

90 deg CW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S7S-1A11-L V20 Series Vane Pump

393719-5

3/4 straight Keyed

1.39

07

10.5

Opposite Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S7S-1C11-L V20 Series Vane Pump

393719-7

3/4 straight Keyed

1.39

07

10.5

Inline with Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P12P-1B11 V20 Series Vane Pump

393723-2

3/4 straight Keyed

2.38

12

18

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P12P-1C11 V20 Series Vane Pump

393723-3

3/4 straight Keyed

2.38

12

18

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P12P-1D11 V20 Series Vane Pump

393723-4

3/4 straight Keyed

2.38

12

18

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P12P-1A11-L V20 Series Vane Pump

393723-5

3/4 straight Keyed

2.38

12

18

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P12P-1C11-L V20 Series Vane Pump

393723-7

3/4 straight Keyed

2.38

12

18

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P7P-1B11 V20 Series Vane Pump

394450-2

3/4 straight Keyed

1.39

07

10.5

90 deg CCW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P7P-1C11 V20 Series Vane Pump

394450-3

3/4 straight Keyed

1.39

07

10.5

Inline with Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P7P-1D11 V20 Series Vane Pump

394450-4

3/4 straight Keyed

1.39

07

10.5

90 deg CW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P7P-1A11-L V20 Series Vane Pump

394450-5

3/4 straight Keyed

1.39

07

10.5

Opposite Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P7P-1C11-L V20 Series Vane Pump

394450-7

3/4 straight Keyed

1.39

07

10.5

Inline with Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P7P-11B11 V20 Series Vane Pump

399221-2

11 Tooth Splined Extended Length

1.39

07

10.5

90 deg CCW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P7P-11C11 V20 Series Vane Pump

399221-3

11 Tooth Splined Extended Length

1.39

07

10.5

Inline with Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P7P-11D11 V20 Series Vane Pump

399221-4

11 Tooth Splined Extended Length

1.39

07

10.5

90 deg CW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P7P-11A11-L V20 Series Vane Pump

399221-5

11 Tooth Splined Extended Length

1.39

07

10.5

Opposite Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P7P-11C11-L V20 Series Vane Pump

399221-7

11 Tooth Splined Extended Length

1.39

07

10.5

Inline with Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S12S-1B11 V20 Series Vane Pump

399722-2

3/4 straight Keyed

2.38

12

18

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S12S-1C11 V20 Series Vane Pump

399722-3

3/4 straight Keyed

2.38

12

18

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S12S-1D11 V20 Series Vane Pump

399722-4

3/4 straight Keyed

2.38

12

18

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S12S-1A11-L V20 Series Vane Pump

399722-5

3/4 straight Keyed

2.38

12

18

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S12S-1C11-L V20 Series Vane Pump

399722-7

3/4 straight Keyed

2.38

12

18

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P12P-15B11 V20 Series Vane Pump

399748-2

13 Tooth SAE B Splined

2.38

12

18

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P12P-15C11 V20 Series Vane Pump

399748-3

13 Tooth SAE B Splined

2.38

12

18

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P12P-15D11 V20 Series Vane Pump

399748-4

13 Tooth SAE B Splined

2.38

12

18

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P12P-15A11-L V20 Series Vane Pump

399748-5

13 Tooth SAE B Splined

2.38

12

18

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P12P-15C11-L V20 Series Vane Pump

399748-7

13 Tooth SAE B Splined

2.38

12

18

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S7S-11B11 V20 Series Vane Pump

401088-2

11 Tooth Splined Extended Length

1.39

07

10.5

90 deg CCW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S7S-11C11 V20 Series Vane Pump

401088-3

11 Tooth Splined Extended Length

1.39

07

10.5

Inline with Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S7S-11D11 V20 Series Vane Pump

401088-4

11 Tooth Splined Extended Length

1.39

07

10.5

90 deg CW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S7S-11A11-L V20 Series Vane Pump

401088-5

11 Tooth Splined Extended Length

1.39

07

10.5

Opposite Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S7S-11C11-L V20 Series Vane Pump

401088-7

11 Tooth Splined Extended Length

1.39

07

10.5

Inline with Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P11P-38B11 V20 Series Vane Pump

406555-2

11 Tooth Splined - Short

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P11P-38C11 V20 Series Vane Pump

406555-3

11 Tooth Splined - Short

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P11P-38D11 V20 Series Vane Pump

406555-4

11 Tooth Splined - Short

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P11P-38A11-L V20 Series Vane Pump

406555-5

11 Tooth Splined - Short

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P11P-38C11-L V20 Series Vane Pump

406555-7

11 Tooth Splined - Short

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P9P-15B11 V20 Series Vane Pump

407502-2

13 Tooth SAE B Splined

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P9P-15C11 V20 Series Vane Pump

407502-3

13 Tooth SAE B Splined

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P9P-15D11 V20 Series Vane Pump

407502-4

13 Tooth SAE B Splined

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P9P-15A11-L V20 Series Vane Pump

407502-5

13 Tooth SAE B Splined

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P9P-15C11-L V20 Series Vane Pump

407502-7

13 Tooth SAE B Splined

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S9S-11B11 V20 Series Vane Pump

415716-2

11 Tooth Splined Extended Length

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S9S-11C11 V20 Series Vane Pump

415716-3

11 Tooth Splined Extended Length

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S9S-11D11 V20 Series Vane Pump

415716-4

11 Tooth Splined Extended Length

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S9S-11A11-L V20 Series Vane Pump

415716-5

11 Tooth Splined Extended Length

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S9S-11C11-L V20 Series Vane Pump

415716-7

11 Tooth Splined Extended Length

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S6S-38B11 V20 Series Vane Pump

418930-2

11 Tooth Splined - Short

1.19

06

9

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S6S-38C11 V20 Series Vane Pump

418930-3

11 Tooth Splined - Short

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S6S-38D11 V20 Series Vane Pump

418930-4

11 Tooth Splined - Short

1.19

06

9

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S6S-38A11-L V20 Series Vane Pump

418930-5

11 Tooth Splined - Short

1.19

06

9

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CCW Rotation

V20-1S6S-38B11-L V20 Series Vane Pump

418930-6

11 Tooth Splined - Short

1.19

06

9

90 deg CCW from Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S6S-38C11-L V20 Series Vane Pump

418930-7

11 Tooth Splined - Short

1.19

06

9

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P9P-38B11 V20 Series Vane Pump

424838-2

11 Tooth Splined - Short

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P9P-38C11 V20 Series Vane Pump

424838-3

11 Tooth Splined - Short

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P9P-38D11 V20 Series Vane Pump

424838-4

11 Tooth Splined - Short

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P9P-38A11-L V20 Series Vane Pump

424838-5

11 Tooth Splined - Short

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P9P-38C11-L V20 Series Vane Pump

424838-7

11 Tooth Splined - Short

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P13P-38B11 V20 Series Vane Pump

424884-2

11 Tooth Splined - Short

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P13P-38C11 V20 Series Vane Pump

424884-3

11 Tooth Splined - Short

2.59

13

19.5

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P13P-38D11 V20 Series Vane Pump

424884-4

11 Tooth Splined - Short

2.59

13

19.5

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P13P-38A11-L V20 Series Vane Pump

424884-5

11 Tooth Splined - Short

2.59

13

19.5

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P13P-38C11-L V20 Series Vane Pump

424884-7

11 Tooth Splined - Short

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1P13P-38D11-L V20 Series Vane Pump

424884-8

11 Tooth Splined - Short

2.59

13

19.5

90 deg CW from Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S11S-38B11 V20 Series Vane Pump

426653-2

11 Tooth Splined - Short

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S11S-38C11 V20 Series Vane Pump

426653-3

11 Tooth Splined - Short

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S11S-38D11 V20 Series Vane Pump

426653-4

11 Tooth Splined - Short

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S11S-38A11-L V20 Series Vane Pump

426653-5

11 Tooth Splined - Short

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S11S-38C11-L V20 Series Vane Pump

426653-7

11 Tooth Splined - Short

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S13S-38B11 V20 Series Vane Pump

428669-2

11 Tooth Splined - Short

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S13S-38C11 V20 Series Vane Pump

428669-3

11 Tooth Splined - Short

2.59

13

19.5

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S13S-38D11 V20 Series Vane Pump

428669-4

11 Tooth Splined - Short

2.59

13

19.5

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S13S-38A11-L V20 Series Vane Pump

428669-5

11 Tooth Splined - Short

2.59

13

19.5

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S13S-38C11-L V20 Series Vane Pump

428669-7

11 Tooth Splined - Short

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P7P-38B11 V20 Series Vane Pump

431789-2

11 Tooth Splined - Short

1.39

07

10.5

90 deg CCW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P7P-38C11 V20 Series Vane Pump

431789-3

11 Tooth Splined - Short

1.39

07

10.5

Inline with Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P7P-38D11 V20 Series Vane Pump

431789-4

11 Tooth Splined - Short

1.39

07

10.5

90 deg CW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P7P-38A11-L V20 Series Vane Pump

431789-5

11 Tooth Splined - Short

1.39

07

10.5

Opposite Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P7P-38C11-L V20 Series Vane Pump

431789-7

11 Tooth Splined - Short

1.39

07

10.5

Inline with Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P8P-38B11 V20 Series Vane Pump

433338-2

11 Tooth Splined - Short

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P8P-38C11 V20 Series Vane Pump

433338-3

11 Tooth Splined - Short

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P8P-38D11 V20 Series Vane Pump

433338-4

11 Tooth Splined - Short

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P8P-38A11-L V20 Series Vane Pump

433338-5

11 Tooth Splined - Short

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P8P-38C11-L V20 Series Vane Pump

433338-7

11 Tooth Splined - Short

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 07 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-6S7S-15B11 V20 Series Vane Pump

478057-2

13 Tooth SAE B Splined

1.39

07

10.5

90 deg CCW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-6S7S-15C11 V20 Series Vane Pump

478057-3

13 Tooth SAE B Splined

1.39

07

10.5

Inline with Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-6S7S-15D11 V20 Series Vane Pump

478057-4

13 Tooth SAE B Splined

1.39

07

10.5

90 deg CW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-6S7S-15C11-L V20 Series Vane Pump

478057-7

13 Tooth SAE B Splined

1.39

07

10.5

Inline with Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S8S-38B11 V20 Series Vane Pump

576970-2

11 Tooth Splined - Short

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S8S-38C11 V20 Series Vane Pump

576970-3

11 Tooth Splined - Short

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S8S-38D11 V20 Series Vane Pump

576970-4

11 Tooth Splined - Short

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S8S-38A11-L V20 Series Vane Pump

576970-5

11 Tooth Splined - Short

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S8S-38C11-L V20 Series Vane Pump

576970-7

11 Tooth Splined - Short

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S9S-38B11 V20 Series Vane Pump

576980-2

11 Tooth Splined - Short

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S9S-38C11 V20 Series Vane Pump

576980-3

11 Tooth Splined - Short

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S9S-38D11 V20 Series Vane Pump

576980-4

11 Tooth Splined - Short

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S9S-38A11-L V20 Series Vane Pump

576980-5

11 Tooth Splined - Short

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S9S-38C11-L V20 Series Vane Pump

576980-7

11 Tooth Splined - Short

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P12P-38B11 V20 Series Vane Pump

578167-2

11 Tooth Splined - Short

2.38

12

18

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P12P-38C11 V20 Series Vane Pump

578167-3

11 Tooth Splined - Short

2.38

12

18

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P12P-38D11 V20 Series Vane Pump

578167-4

11 Tooth Splined - Short

2.38

12

18

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P12P-38A11-L V20 Series Vane Pump

578167-5

11 Tooth Splined - Short

2.38

12

18

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P12P-38C11-L V20 Series Vane Pump

578167-7

11 Tooth Splined - Short

2.38

12

18

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P12P-11B11 V20 Series Vane Pump

584195-2

11 Tooth Splined Extended Length

2.38

12

18

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P12P-11C11 V20 Series Vane Pump

584195-3

11 Tooth Splined Extended Length

2.38

12

18

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P12P-11D11 V20 Series Vane Pump

584195-4

11 Tooth Splined Extended Length

2.38

12

18

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P12P-11A11-L V20 Series Vane Pump

584195-5

11 Tooth Splined Extended Length

2.38

12

18

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P12P-11C11-L V20 Series Vane Pump

584195-7

11 Tooth Splined Extended Length

2.38

12

18

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-6S11S-15B11 V20 Series Vane Pump

591418-2

13 Tooth SAE B Splined

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-6S11S-15C11 V20 Series Vane Pump

591418-3

13 Tooth SAE B Splined

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-6S11S-15D11 V20 Series Vane Pump

591418-4

13 Tooth SAE B Splined

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-6S11S-15A11-L V20 Series Vane Pump

591418-5

13 Tooth SAE B Splined

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-6S11S-15C11-L V20 Series Vane Pump

591418-7

13 Tooth SAE B Splined

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined ・3/4・OD Shaft, NPT Ports, Outlet In-line with inlet (C), CCW Rotation

V20-1P13S-38C11L-063 V20 Series Vane Pump

720AR00236A

11 Tooth Splined ・3/4・OD

2.59

13

19.5

In-line with inlet (C)

CCW

2200

2400 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P5P-1B11 V20 Series Vane Pump

875445-2

3/4 straight Keyed

1

05

7.5

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P5P-1C11 V20 Series Vane Pump

875445-3

3/4 straight Keyed

1

05

7.5

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P5P-1D11 V20 Series Vane Pump

875445-4

3/4 straight Keyed

1

05

7.5

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P5P-1A11-L V20 Series Vane Pump

875445-5

3/4 straight Keyed

1

05

7.5

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P5P-1C11-L V20 Series Vane Pump

875445-7

3/4 straight Keyed

1

05

7.5

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-6S8S-1C11 V20 Series Vane Pump

02-466262-3

3/4 straight Keyed

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-6S6S-15A11 V20 Series Vane Pump

02-102226-1

13 Tooth SAE B Splined

1.19

06

9

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P10P-38A11 V20 Series Vane Pump

02-125318-1

11 Tooth Splined - Short

2

10

15

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-6S12S-15A11 V20 Series Vane Pump

02-142805-1

13 Tooth SAE B Splined

2.38

12

18

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 05 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P5P-11A11 V20 Series Vane Pump

02-143242-1

11 Tooth Splined Extended Length

1

05

7.5

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-6S8S-15A11 V20 Series Vane Pump

02-151574-1

13 Tooth SAE B Splined

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S10S-38A11 V20 Series Vane Pump

02-151688-1

11 Tooth Splined - Short

2

10

15

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-6S8S-1A11 V20 Series Vane Pump

02-466262-1

3/4 straight Keyed

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P9P-1A11 V20 Series Vane Pump

358357-1

3/4 straight Keyed

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S11S-1A11 V20 Series Vane Pump

358358-1

3/4 straight Keyed

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S13S-1A11 V20 Series Vane Pump

372561-1

3/4 straight Keyed

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S8S-1A11 V20 Series Vane Pump

372564-1

3/4 straight Keyed

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S13S-11A11 V20 Series Vane Pump

372579-1

11 Tooth Splined Extended Length

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S11S-11A11 V20 Series Vane Pump

372580-1

11 Tooth Splined Extended Length

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S6S-1A11 V20 Series Vane Pump

372585-1

3/4 straight Keyed

1.19

06

9

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S9S-1A11 V20 Series Vane Pump

372586-1

3/4 straight Keyed

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S11S-15A11 V20 Series Vane Pump

372591-1

13 Tooth SAE B Splined

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S13S-15A11 V20 Series Vane Pump

372598-1

13 Tooth SAE B Splined

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P13P-1A11 V20 Series Vane Pump

372606-1

3/4 straight Keyed

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P6P-1A11 V20 Series Vane Pump

372613-1

3/4 straight Keyed

1.19

06

9

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P11P-1A11 V20 Series Vane Pump

372617-1

3/4 straight Keyed

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P8P-1A11 V20 Series Vane Pump

372639-1

3/4 straight Keyed

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P8P-15A11 V20 Series Vane Pump

372736-1

13 Tooth SAE B Splined

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P6P-11A11 V20 Series Vane Pump

372746-1

11 Tooth Splined Extended Length

1.19

06

9

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P8P-11A11 V20 Series Vane Pump

372756-1

11 Tooth Splined Extended Length

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P13P-15A11 V20 Series Vane Pump

373669-1

13 Tooth SAE B Splined

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S8S-15A11 V20 Series Vane Pump

373670-1

13 Tooth SAE B Splined

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P13P-11A11 V20 Series Vane Pump

374344-1

11 Tooth Splined Extended Length

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S9S-15A11 V20 Series Vane Pump

380297-1

13 Tooth SAE B Splined

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P9P-11A11 V20 Series Vane Pump

383526-1

11 Tooth Splined Extended Length

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S8S-11A11 V20 Series Vane Pump

385533-1

11 Tooth Splined Extended Length

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P6P-15A11 V20 Series Vane Pump

385535-1

13 Tooth SAE B Splined

1.19

06

9

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P6P-38A11 V20 Series Vane Pump

389463-1

11 Tooth Splined - Short

1.19

06

9

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P11P-11A11 V20 Series Vane Pump

390925-1

11 Tooth Splined Extended Length

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P10P-1A11 V20 Series Vane Pump

391763-1

3/4 straight Keyed

2

10

15

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S7S-1A11 V20 Series Vane Pump

393719-1

3/4 straight Keyed

1.39

07

10.5

Opposite Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P12P-1A11 V20 Series Vane Pump

393723-1

3/4 straight Keyed

2.38

12

18

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P7P-1A11 V20 Series Vane Pump

394450-1

3/4 straight Keyed

1.39

07

10.5

Opposite Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P7P-11A11 V20 Series Vane Pump

399221-1

11 Tooth Splined Extended Length

1.39

07

10.5

Opposite Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S12S-1A11 V20 Series Vane Pump

399722-1

3/4 straight Keyed

2.38

12

18

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P12P-15A11 V20 Series Vane Pump

399748-1

13 Tooth SAE B Splined

2.38

12

18

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S7S-11A11 V20 Series Vane Pump

401088-1

11 Tooth Splined Extended Length

1.39

07

10.5

Opposite Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P11P-38A11 V20 Series Vane Pump

406555-1

11 Tooth Splined - Short

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P9P-15A11 V20 Series Vane Pump

407502-1

13 Tooth SAE B Splined

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S9S-11A11 V20 Series Vane Pump

415716-1

11 Tooth Splined Extended Length

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S6S-38A11 V20 Series Vane Pump

418930-1

11 Tooth Splined - Short

1.19

06

9

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P9P-38A11 V20 Series Vane Pump

424838-1

11 Tooth Splined - Short

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P13P-38A11 V20 Series Vane Pump

424884-1

11 Tooth Splined - Short

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S11S-38A11 V20 Series Vane Pump

426653-1

11 Tooth Splined - Short

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S13S-38A11 V20 Series Vane Pump

428669-1

11 Tooth Splined - Short

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P7P-38A11 V20 Series Vane Pump

431789-1

11 Tooth Splined - Short

1.39

07

10.5

Opposite Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P8P-38A11 V20 Series Vane Pump

433338-1

11 Tooth Splined - Short

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 07 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-6S7S-15A11 V20 Series Vane Pump

478057-1

13 Tooth SAE B Splined

1.39

07

10.5

Opposite Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S8S-38A11 V20 Series Vane Pump

576970-1

11 Tooth Splined - Short

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S9S-38A11 V20 Series Vane Pump

576980-1

11 Tooth Splined - Short

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P12P-38A11 V20 Series Vane Pump

578167-1

11 Tooth Splined - Short

2.38

12

18

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P12P-11A11 V20 Series Vane Pump

584195-1

11 Tooth Splined Extended Length

2.38

12

18

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-6S11S-15A11 V20 Series Vane Pump

591418-1

13 Tooth SAE B Splined

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P5P-1A11 V20 Series Vane Pump

875445-1

3/4 straight Keyed

1

05

7.5

Opposite Inlet

CW

2500

3400 RPM

Product Questions & Answers (2)

Question by: Pete P on Feb 10, 2026, 3:52 PM
runs counterclockwise -- is that the rotation on this pump or do I got that backwards?
Answer by: Customer Support on Feb 12, 2026, 10:21 AM
CCW is correct for this one. The V20-1P7P-1C11-L is configured for counterclockwise rotation, so if your setup drives the shaft CCW when viewed from the shaft end, you're good to go. Running a vane pump in the wrong direction will cause it to pull from the wrong port and starve the vanes, so it's worth double-checking before you bolt it up.
Question by: Lyle J on May 3, 2025, 9:49 AM
Will this V20 pump bolt right up where an old Vickers pump used to be? Just trying to avoid drilling new holes.
Answer by: Customer Support on May 5, 2025, 8:05 AM
Mounting flange is either a 2-bolt SAE A or 2-bolt SAE B, so check that against your existing setup to make sure they match.
