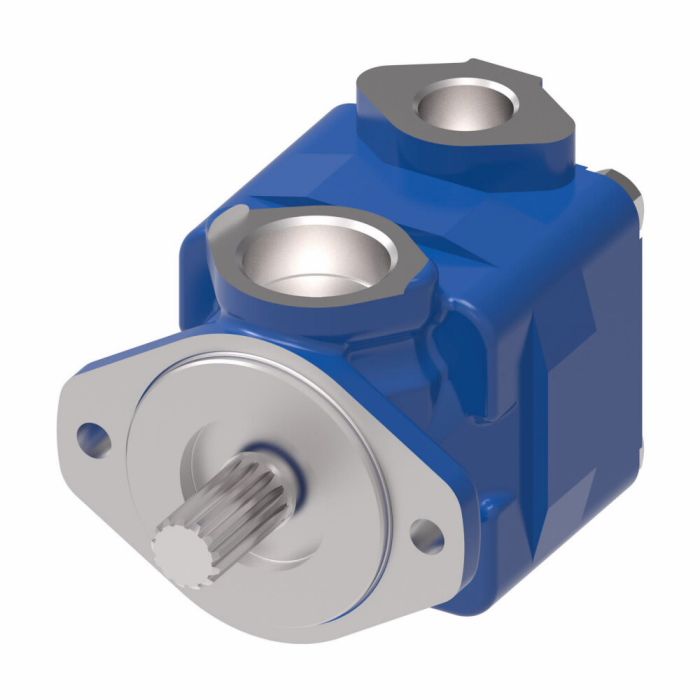

main product photo

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

Ask A Question

Description & Features

This Eaton Vickers V20 Series Vane Pump features a pressure-balanced, modular 12-vane design that reduces noise and flow pulsation. With a 13 ring size, this pump is designed for applications such as metal cutting, plastic injection molding, oil and gas, dump trucks, and wheel loaders.

The V20 Series Vane Pump has a 2.59 displacement and a rated flow of 19.5 GPM at 2400 RPM. It is configured with SAE ports and an outlet inline with the inlet, along with an 11 tooth splined short shaft. This model has clockwise rotation and a maximum pressure of 2200 PSI. It uses Buna-N seals.

SKU: 428669-3

Supplier Part Number (MPN): 428669-3

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
2.59
Displacement
2.59
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Pressure-balanced, modular 12-vane design|Reduces noise and flow pulsation|Wide range of available displacements
Maximum Pressure
2200
Maximum Pressure
2200
Port Location
Inline with Inlet
Ports
SAE
Ports
SAE
Rated Flow
19.50
Rated Flow
19.5
Ring Size
13
Ring Size
13
Rotation
CW
Seal Material
Buna-N
Series
V20
Shaft
11 Tooth Splined - Short
Shaft
11 Tooth Splined - Short
Special Features
None
Speed Rating
2400 RPM
Speed Rating
2400 RPM
Supplier Part Number
428669-3
Alternate Part Numbers
Alternate Part Number MINO-00900X56491
Product Weight
18.00 lbs

Related Documents

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-6S6S-15B11 V20 Series Vane Pump

02-102226-2

13 Tooth SAE B Splined

1.19

06

9

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-6S6S-15C11 V20 Series Vane Pump

02-102226-3

13 Tooth SAE B Splined

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-6S6S-15D11 V20 Series Vane Pump

02-102226-4

13 Tooth SAE B Splined

1.19

06

9

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-6S6S-15A11-L V20 Series Vane Pump

02-102226-5

13 Tooth SAE B Splined

1.19

06

9

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-6S6S-15C11-L V20 Series Vane Pump

02-102226-7

13 Tooth SAE B Splined

1.19

06

9

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-6S6S-15D11-L V20 Series Vane Pump

02-102226-8

13 Tooth SAE B Splined

1.19

06

9

90 deg CW from Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P10P-38B11 V20 Series Vane Pump

02-125318-2

11 Tooth Splined - Short

2

10

15

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P10P-38C11 V20 Series Vane Pump

02-125318-3

11 Tooth Splined - Short

2

10

15

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P10P-38D11 V20 Series Vane Pump

02-125318-4

11 Tooth Splined - Short

2

10

15

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P10P-38A11-L V20 Series Vane Pump

02-125318-5

11 Tooth Splined - Short

2

10

15

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P10P-38C11-L V20 Series Vane Pump

02-125318-7

11 Tooth Splined - Short

2

10

15

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-6S12S-15B11 V20 Series Vane Pump

02-142805-2

13 Tooth SAE B Splined

2.38

12

18

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-6S12S-15C11 V20 Series Vane Pump

02-142805-3

13 Tooth SAE B Splined

2.38

12

18

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-6S12S-15D11 V20 Series Vane Pump

02-142805-4

13 Tooth SAE B Splined

2.38

12

18

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-6S12S-15A11-L V20 Series Vane Pump

02-142805-5

13 Tooth SAE B Splined

2.38

12

18

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-6S12S-15C11-L V20 Series Vane Pump

02-142805-7

13 Tooth SAE B Splined

2.38

12

18

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 05 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P5P-11B11 V20 Series Vane Pump

02-143242-2

11 Tooth Splined Extended Length

1

05

7.5

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P5P-11C11 V20 Series Vane Pump

02-143242-3

11 Tooth Splined Extended Length

1

05

7.5

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P5P-11D11 V20 Series Vane Pump

02-143242-4

11 Tooth Splined Extended Length

1

05

7.5

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P5P-11A11-L V20 Series Vane Pump

02-143242-5

11 Tooth Splined Extended Length

1

05

7.5

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P5P-11C11-L V20 Series Vane Pump

02-143242-7

11 Tooth Splined Extended Length

1

05

7.5

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-6S8S-15B11 V20 Series Vane Pump

02-151574-2

13 Tooth SAE B Splined

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-6S8S-15C11 V20 Series Vane Pump

02-151574-3

13 Tooth SAE B Splined

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-6S8S-15D11 V20 Series Vane Pump

02-151574-4

13 Tooth SAE B Splined

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-6S8S-15A11-L V20 Series Vane Pump

02-151574-5

13 Tooth SAE B Splined

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-6S8S-15C11-L V20 Series Vane Pump

02-151574-7

13 Tooth SAE B Splined

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-6S8S-15D11-L V20 Series Vane Pump

02-151574-8

13 Tooth SAE B Splined

1.62

08

12

90 deg CW from Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S10S-38B11 V20 Series Vane Pump

02-151688-2

11 Tooth Splined - Short

2

10

15

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S10S-38C11 V20 Series Vane Pump

02-151688-3

11 Tooth Splined - Short

2

10

15

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S10S-38D11 V20 Series Vane Pump

02-151688-4

11 Tooth Splined - Short

2

10

15

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S10S-38A11-L V20 Series Vane Pump

02-151688-5

11 Tooth Splined - Short

2

10

15

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S10S-38C11-L V20 Series Vane Pump

02-151688-7

11 Tooth Splined - Short

2

10

15

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S12S-38C11 V20 Series Vane Pump

02-315408-3

11 Tooth Splined - Short

2.38

12

18

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S12S-38A11-L V20 Series Vane Pump

02-315408-5

11 Tooth Splined - Short

2.38

12

18

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S12S-38C11-L V20 Series Vane Pump

02-315408-7

11 Tooth Splined - Short

2.38

12

18

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S10S-1C11 V20 Series Vane Pump

02-322148-3

3/4 straight Keyed

2

10

15

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S10S-1D11 V20 Series Vane Pump

02-322148-4

3/4 straight Keyed

2

10

15

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S7S-38C11 V20 Series Vane Pump

02-334748-3

11 Tooth Splined - Short

1.39

07

10.5

Inline with Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S5S-1B11 V20 Series Vane Pump

02-345217-2

3/4 straight Keyed

1

05

7.5

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S5S-1C11 V20 Series Vane Pump

02-345217-3

3/4 straight Keyed

1

05

7.5

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-6S9S-15C11 V20 Series Vane Pump

02-345506-3

13 Tooth SAE B Splined

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-6S9S-15C11-L V20 Series Vane Pump

02-345506-7

13 Tooth SAE B Splined

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S13S-38B11-063 V20 Series Vane Pump

02-347239-2

11 Tooth Splined - Short

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S13S-38C11LH-063 V20 Series Vane Pump

02-347239-7

11 Tooth Splined - Short

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P9P-1B11 V20 Series Vane Pump

358357-2

3/4 straight Keyed

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P9P-1C11 V20 Series Vane Pump

358357-3

3/4 straight Keyed

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P9P-1D11 V20 Series Vane Pump

358357-4

3/4 straight Keyed

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P9P-1A11-L V20 Series Vane Pump

358357-5

3/4 straight Keyed

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P9P-1C11-L V20 Series Vane Pump

358357-7

3/4 straight Keyed

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1P9P-1D11-L V20 Series Vane Pump

358357-8

3/4 straight Keyed

1.81

09

13.5

90 deg CW from Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S11S-1B11 V20 Series Vane Pump

358358-2

3/4 straight Keyed

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S11S-1C11 V20 Series Vane Pump

358358-3

3/4 straight Keyed

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S11S-1D11 V20 Series Vane Pump

358358-4

3/4 straight Keyed

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S11S-1A11-L V20 Series Vane Pump

358358-5

3/4 straight Keyed

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S11S-1C11-L V20 Series Vane Pump

358358-7

3/4 straight Keyed

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S13S-1B11 V20 Series Vane Pump

372561-2

3/4 straight Keyed

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S13S-1C11 V20 Series Vane Pump

372561-3

3/4 straight Keyed

2.59

13

19.5

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S13S-1D11 V20 Series Vane Pump

372561-4

3/4 straight Keyed

2.59

13

19.5

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S13S-1A11-L V20 Series Vane Pump

372561-5

3/4 straight Keyed

2.59

13

19.5

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S13S-1C11-L V20 Series Vane Pump

372561-7

3/4 straight Keyed

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S8S-1B11 V20 Series Vane Pump

372564-2

3/4 straight Keyed

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S8S-1C11 V20 Series Vane Pump

372564-3

3/4 straight Keyed

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S8S-1D11 V20 Series Vane Pump

372564-4

3/4 straight Keyed

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S8S-1A11-L V20 Series Vane Pump

372564-5

3/4 straight Keyed

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S8S-1C11-L V20 Series Vane Pump

372564-7

3/4 straight Keyed

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1S8S-1D11-L V20 Series Vane Pump

372564-8

3/4 straight Keyed

1.62

08

12

90 deg CW from Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S11S-11B11 V20 Series Vane Pump

372580-2

11 Tooth Splined Extended Length

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S11S-11C11 V20 Series Vane Pump

372580-3

11 Tooth Splined Extended Length

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S11S-11D11 V20 Series Vane Pump

372580-4

11 Tooth Splined Extended Length

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S11S-11A11-L V20 Series Vane Pump

372580-5

11 Tooth Splined Extended Length

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S11S-11C11-L V20 Series Vane Pump

372580-7

11 Tooth Splined Extended Length

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S6S-1B11 V20 Series Vane Pump

372585-2

3/4 straight Keyed

1.19

06

9

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S6S-1C11 V20 Series Vane Pump

372585-3

3/4 straight Keyed

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S6S-1D11 V20 Series Vane Pump

372585-4

3/4 straight Keyed

1.19

06

9

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S6S-1A11-L V20 Series Vane Pump

372585-5

3/4 straight Keyed

1.19

06

9

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S6S-1C11-L V20 Series Vane Pump

372585-7

3/4 straight Keyed

1.19

06

9

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1S6S-1D11-L V20 Series Vane Pump

372585-8

3/4 straight Keyed

1.19

06

9

90 deg CW from Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S9S-1B11 V20 Series Vane Pump

372586-2

3/4 straight Keyed

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S9S-1C11 V20 Series Vane Pump

372586-3

3/4 straight Keyed

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S9S-1D11 V20 Series Vane Pump

372586-4

3/4 straight Keyed

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S9S-1A11-L V20 Series Vane Pump

372586-5

3/4 straight Keyed

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CCW Rotation

V20-1S9S-1B11-L V20 Series Vane Pump

372586-6

3/4 straight Keyed

1.81

09

13.5

90 deg CCW from Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S9S-1C11-L V20 Series Vane Pump

372586-7

3/4 straight Keyed

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1S9S-1D11-L V20 Series Vane Pump

372586-8

3/4 straight Keyed

1.81

09

13.5

90 deg CW from Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S11S-15B11 V20 Series Vane Pump

372591-2

13 Tooth SAE B Splined

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S11S-15C11 V20 Series Vane Pump

372591-3

13 Tooth SAE B Splined

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S11S-15D11 V20 Series Vane Pump

372591-4

13 Tooth SAE B Splined

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S11S-15A11-L V20 Series Vane Pump

372591-5

13 Tooth SAE B Splined

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S11S-15C11-L V20 Series Vane Pump

372591-7

13 Tooth SAE B Splined

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S6S-11C11 V20 Series Vane Pump

372594-3

11 Tooth Splined Extended Length

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S13S-15B11 V20 Series Vane Pump

372598-2

13 Tooth SAE B Splined

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S13S-15C11 V20 Series Vane Pump

372598-3

13 Tooth SAE B Splined

2.59

13

19.5

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S13S-15D11 V20 Series Vane Pump

372598-4

13 Tooth SAE B Splined

2.59

13

19.5

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S13S-15A11-L V20 Series Vane Pump

372598-5

13 Tooth SAE B Splined

2.59

13

19.5

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S13S-15C11-L V20 Series Vane Pump

372598-7

13 Tooth SAE B Splined

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1S13S-15D11-L V20 Series Vane Pump

372598-8

13 Tooth SAE B Splined

2.59

13

19.5

90 deg CW from Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P13P-1B11 V20 Series Vane Pump

372606-2

3/4 straight Keyed

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P13P-1C11 V20 Series Vane Pump

372606-3

3/4 straight Keyed

2.59

13

19.5

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P13P-1D11 V20 Series Vane Pump

372606-4

3/4 straight Keyed

2.59

13

19.5

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P13P-1A11-L V20 Series Vane Pump

372606-5

3/4 straight Keyed

2.59

13

19.5

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CCW Rotation

V20-1P13P-1B11-L V20 Series Vane Pump

372606-6

3/4 straight Keyed

2.59

13

19.5

90 deg CCW from Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P13P-1C11-L V20 Series Vane Pump

372606-7

3/4 straight Keyed

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1P13P-1D11-L V20 Series Vane Pump

372606-8

3/4 straight Keyed

2.59

13

19.5

90 deg CW from Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P6P-1B11 V20 Series Vane Pump

372613-2

3/4 straight Keyed

1.19

06

9

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P6P-1C11 V20 Series Vane Pump

372613-3

3/4 straight Keyed

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P6P-1D11 V20 Series Vane Pump

372613-4

3/4 straight Keyed

1.19

06

9

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P6P-1A11-L V20 Series Vane Pump

372613-5

3/4 straight Keyed

1.19

06

9

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CCW Rotation

V20-1P6P-1B11-L V20 Series Vane Pump

372613-6

3/4 straight Keyed

1.19

06

9

90 deg CCW from Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P6P-1C11-L V20 Series Vane Pump

372613-7

3/4 straight Keyed

1.19

06

9

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1P6P-1D11-L V20 Series Vane Pump

372613-8

3/4 straight Keyed

1.19

06

9

90 deg CW from Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P11P-1B11 V20 Series Vane Pump

372617-2

3/4 straight Keyed

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P11P-1C11 V20 Series Vane Pump

372617-3

3/4 straight Keyed

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P11P-1D11 V20 Series Vane Pump

372617-4

3/4 straight Keyed

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P11P-1A11-L V20 Series Vane Pump

372617-5

3/4 straight Keyed

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CCW Rotation

V20-1P11P-1B11-L V20 Series Vane Pump

372617-6

3/4 straight Keyed

2.22

11

16.5

90 deg CCW from Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P11P-1C11-L V20 Series Vane Pump

372617-7

3/4 straight Keyed

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1P11P-1D11-L V20 Series Vane Pump

372617-8

3/4 straight Keyed

2.22

11

16.5

90 deg CW from Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P8P-1B11 V20 Series Vane Pump

372639-2

3/4 straight Keyed

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P8P-1C11 V20 Series Vane Pump

372639-3

3/4 straight Keyed

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P8P-1D11 V20 Series Vane Pump

372639-4

3/4 straight Keyed

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P8P-1A11-L V20 Series Vane Pump

372639-5

3/4 straight Keyed

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P8P-1C11-L V20 Series Vane Pump

372639-7

3/4 straight Keyed

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P8P-15B11 V20 Series Vane Pump

372736-2

13 Tooth SAE B Splined

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P8P-15C11 V20 Series Vane Pump

372736-3

13 Tooth SAE B Splined

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P8P-15D11 V20 Series Vane Pump

372736-4

13 Tooth SAE B Splined

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P8P-15A11-L V20 Series Vane Pump

372736-5

13 Tooth SAE B Splined

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P8P-15C11-L V20 Series Vane Pump

372736-7

13 Tooth SAE B Splined

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P6P-11B11 V20 Series Vane Pump

372746-2

11 Tooth Splined Extended Length

1.19

06

9

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P6P-11C11 V20 Series Vane Pump

372746-3

11 Tooth Splined Extended Length

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P6P-11D11 V20 Series Vane Pump

372746-4

11 Tooth Splined Extended Length

1.19

06

9

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P6P-11A11-L V20 Series Vane Pump

372746-5

11 Tooth Splined Extended Length

1.19

06

9

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P6P-11C11-L V20 Series Vane Pump

372746-7

11 Tooth Splined Extended Length

1.19

06

9

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P8P-11B11 V20 Series Vane Pump

372756-2

11 Tooth Splined Extended Length

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P8P-11C11 V20 Series Vane Pump

372756-3

11 Tooth Splined Extended Length

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P8P-11D11 V20 Series Vane Pump

372756-4

11 Tooth Splined Extended Length

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P8P-11A11-L V20 Series Vane Pump

372756-5

11 Tooth Splined Extended Length

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P8P-11C11-L V20 Series Vane Pump

372756-7

11 Tooth Splined Extended Length

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P13P-15B11 V20 Series Vane Pump

373669-2

13 Tooth SAE B Splined

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P13P-15C11 V20 Series Vane Pump

373669-3

13 Tooth SAE B Splined

2.59

13

19.5

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P13P-15D11 V20 Series Vane Pump

373669-4

13 Tooth SAE B Splined

2.59

13

19.5

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P13P-15A11-L V20 Series Vane Pump

373669-5

13 Tooth SAE B Splined

2.59

13

19.5

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P13P-15C11-L V20 Series Vane Pump

373669-7

13 Tooth SAE B Splined

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S8S-15B11 V20 Series Vane Pump

373670-2

13 Tooth SAE B Splined

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S8S-15C11 V20 Series Vane Pump

373670-3

13 Tooth SAE B Splined

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P13P-11B11 V20 Series Vane Pump

374344-2

11 Tooth Splined Extended Length

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P13P-11C11 V20 Series Vane Pump

374344-3

11 Tooth Splined Extended Length

2.59

13

19.5

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P13P-11D11 V20 Series Vane Pump

374344-4

11 Tooth Splined Extended Length

2.59

13

19.5

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P13P-11A11-L V20 Series Vane Pump

374344-5

11 Tooth Splined Extended Length

2.59

13

19.5

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CCW Rotation

V20-1P13P-11B11-L V20 Series Vane Pump

374344-6

11 Tooth Splined Extended Length

2.59

13

19.5

90 deg CCW from Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P13P-11C11-L V20 Series Vane Pump

374344-7

11 Tooth Splined Extended Length

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1P13P-11D11-L V20 Series Vane Pump

374344-8

11 Tooth Splined Extended Length

2.59

13

19.5

90 deg CW from Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S9S-15B11 V20 Series Vane Pump

380297-2

13 Tooth SAE B Splined

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S9S-15C11 V20 Series Vane Pump

380297-3

13 Tooth SAE B Splined

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S9S-15D11 V20 Series Vane Pump

380297-4

13 Tooth SAE B Splined

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S9S-15A11-L V20 Series Vane Pump

380297-5

13 Tooth SAE B Splined

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S9S-15C11-L V20 Series Vane Pump

380297-7

13 Tooth SAE B Splined

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P9P-11B11 V20 Series Vane Pump

383526-2

11 Tooth Splined Extended Length

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P9P-11C11 V20 Series Vane Pump

383526-3

11 Tooth Splined Extended Length

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P9P-11D11 V20 Series Vane Pump

383526-4

11 Tooth Splined Extended Length

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P9P-11A11-L V20 Series Vane Pump

383526-5

11 Tooth Splined Extended Length

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P9P-11C11-L V20 Series Vane Pump

383526-7

11 Tooth Splined Extended Length

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S8S-11B11 V20 Series Vane Pump

385533-2

11 Tooth Splined Extended Length

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S8S-11C11 V20 Series Vane Pump

385533-3

11 Tooth Splined Extended Length

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S8S-11D11 V20 Series Vane Pump

385533-4

11 Tooth Splined Extended Length

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S8S-11A11-L V20 Series Vane Pump

385533-5

11 Tooth Splined Extended Length

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S8S-11C11-L V20 Series Vane Pump

385533-7

11 Tooth Splined Extended Length

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P6P-15B11 V20 Series Vane Pump

385535-2

13 Tooth SAE B Splined

1.19

06

9

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P6P-15C11 V20 Series Vane Pump

385535-3

13 Tooth SAE B Splined

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P6P-15D11 V20 Series Vane Pump

385535-4

13 Tooth SAE B Splined

1.19

06

9

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P6P-15A11-L V20 Series Vane Pump

385535-5

13 Tooth SAE B Splined

1.19

06

9

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P6P-15C11-L V20 Series Vane Pump

385535-7

13 Tooth SAE B Splined

1.19

06

9

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P6P-38B11 V20 Series Vane Pump

389463-2

11 Tooth Splined - Short

1.19

06

9

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P6P-38C11 V20 Series Vane Pump

389463-3

11 Tooth Splined - Short

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P6P-38D11 V20 Series Vane Pump

389463-4

11 Tooth Splined - Short

1.19

06

9

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P6P-38A11-L V20 Series Vane Pump

389463-5

11 Tooth Splined - Short

1.19

06

9

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P6P-38C11-L V20 Series Vane Pump

389463-7

11 Tooth Splined - Short

1.19

06

9

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P11P-11B11 V20 Series Vane Pump

390925-2

11 Tooth Splined Extended Length

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P11P-11C11 V20 Series Vane Pump

390925-3

11 Tooth Splined Extended Length

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P11P-11D11 V20 Series Vane Pump

390925-4

11 Tooth Splined Extended Length

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P11P-11A11-L V20 Series Vane Pump

390925-5

11 Tooth Splined Extended Length

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P11P-11C11-L V20 Series Vane Pump

390925-7

11 Tooth Splined Extended Length

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1P11P-11D11-L V20 Series Vane Pump

390925-8

11 Tooth Splined Extended Length

2.22

11

16.5

90 deg CW from Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P10P-1B11 V20 Series Vane Pump

391763-2

3/4 straight Keyed

2

10

15

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P10P-1C11 V20 Series Vane Pump

391763-3

3/4 straight Keyed

2

10

15

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P10P-1D11 V20 Series Vane Pump

391763-4

3/4 straight Keyed

2

10

15

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P10P-1A11-L V20 Series Vane Pump

391763-5

3/4 straight Keyed

2

10

15

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P10P-1C11-L V20 Series Vane Pump

391763-7

3/4 straight Keyed

2

10

15

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S7S-1B11 V20 Series Vane Pump

393719-2

3/4 straight Keyed

1.39

07

10.5

90 deg CCW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S7S-1C11 V20 Series Vane Pump

393719-3

3/4 straight Keyed

1.39

07

10.5

Inline with Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S7S-1D11 V20 Series Vane Pump

393719-4

3/4 straight Keyed

1.39

07

10.5

90 deg CW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S7S-1A11-L V20 Series Vane Pump

393719-5

3/4 straight Keyed

1.39

07

10.5

Opposite Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S7S-1C11-L V20 Series Vane Pump

393719-7

3/4 straight Keyed

1.39

07

10.5

Inline with Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P12P-1B11 V20 Series Vane Pump

393723-2

3/4 straight Keyed

2.38

12

18

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P12P-1C11 V20 Series Vane Pump

393723-3

3/4 straight Keyed

2.38

12

18

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P12P-1D11 V20 Series Vane Pump

393723-4

3/4 straight Keyed

2.38

12

18

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P12P-1A11-L V20 Series Vane Pump

393723-5

3/4 straight Keyed

2.38

12

18

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P12P-1C11-L V20 Series Vane Pump

393723-7

3/4 straight Keyed

2.38

12

18

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P7P-1B11 V20 Series Vane Pump

394450-2

3/4 straight Keyed

1.39

07

10.5

90 deg CCW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P7P-1C11 V20 Series Vane Pump

394450-3

3/4 straight Keyed

1.39

07

10.5

Inline with Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P7P-1D11 V20 Series Vane Pump

394450-4

3/4 straight Keyed

1.39

07

10.5

90 deg CW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P7P-1A11-L V20 Series Vane Pump

394450-5

3/4 straight Keyed

1.39

07

10.5

Opposite Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P7P-1C11-L V20 Series Vane Pump

394450-7

3/4 straight Keyed

1.39

07

10.5

Inline with Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P7P-11B11 V20 Series Vane Pump

399221-2

11 Tooth Splined Extended Length

1.39

07

10.5

90 deg CCW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P7P-11C11 V20 Series Vane Pump

399221-3

11 Tooth Splined Extended Length

1.39

07

10.5

Inline with Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P7P-11D11 V20 Series Vane Pump

399221-4

11 Tooth Splined Extended Length

1.39

07

10.5

90 deg CW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P7P-11A11-L V20 Series Vane Pump

399221-5

11 Tooth Splined Extended Length

1.39

07

10.5

Opposite Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P7P-11C11-L V20 Series Vane Pump

399221-7

11 Tooth Splined Extended Length

1.39

07

10.5

Inline with Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S12S-1B11 V20 Series Vane Pump

399722-2

3/4 straight Keyed

2.38

12

18

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S12S-1C11 V20 Series Vane Pump

399722-3

3/4 straight Keyed

2.38

12

18

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S12S-1D11 V20 Series Vane Pump

399722-4

3/4 straight Keyed

2.38

12

18

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S12S-1A11-L V20 Series Vane Pump

399722-5

3/4 straight Keyed

2.38

12

18

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S12S-1C11-L V20 Series Vane Pump

399722-7

3/4 straight Keyed

2.38

12

18

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P12P-15B11 V20 Series Vane Pump

399748-2

13 Tooth SAE B Splined

2.38

12

18

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P12P-15C11 V20 Series Vane Pump

399748-3

13 Tooth SAE B Splined

2.38

12

18

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P12P-15D11 V20 Series Vane Pump

399748-4

13 Tooth SAE B Splined

2.38

12

18

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P12P-15A11-L V20 Series Vane Pump

399748-5

13 Tooth SAE B Splined

2.38

12

18

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P12P-15C11-L V20 Series Vane Pump

399748-7

13 Tooth SAE B Splined

2.38

12

18

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S7S-11B11 V20 Series Vane Pump

401088-2

11 Tooth Splined Extended Length

1.39

07

10.5

90 deg CCW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S7S-11C11 V20 Series Vane Pump

401088-3

11 Tooth Splined Extended Length

1.39

07

10.5

Inline with Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S7S-11D11 V20 Series Vane Pump

401088-4

11 Tooth Splined Extended Length

1.39

07

10.5

90 deg CW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S7S-11A11-L V20 Series Vane Pump

401088-5

11 Tooth Splined Extended Length

1.39

07

10.5

Opposite Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S7S-11C11-L V20 Series Vane Pump

401088-7

11 Tooth Splined Extended Length

1.39

07

10.5

Inline with Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P11P-38B11 V20 Series Vane Pump

406555-2

11 Tooth Splined - Short

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P11P-38C11 V20 Series Vane Pump

406555-3

11 Tooth Splined - Short

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P11P-38D11 V20 Series Vane Pump

406555-4

11 Tooth Splined - Short

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P11P-38A11-L V20 Series Vane Pump

406555-5

11 Tooth Splined - Short

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P11P-38C11-L V20 Series Vane Pump

406555-7

11 Tooth Splined - Short

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P9P-15B11 V20 Series Vane Pump

407502-2

13 Tooth SAE B Splined

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P9P-15C11 V20 Series Vane Pump

407502-3

13 Tooth SAE B Splined

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P9P-15D11 V20 Series Vane Pump

407502-4

13 Tooth SAE B Splined

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P9P-15A11-L V20 Series Vane Pump

407502-5

13 Tooth SAE B Splined

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P9P-15C11-L V20 Series Vane Pump

407502-7

13 Tooth SAE B Splined

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S9S-11B11 V20 Series Vane Pump

415716-2

11 Tooth Splined Extended Length

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S9S-11C11 V20 Series Vane Pump

415716-3

11 Tooth Splined Extended Length

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S9S-11D11 V20 Series Vane Pump

415716-4

11 Tooth Splined Extended Length

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S9S-11A11-L V20 Series Vane Pump

415716-5

11 Tooth Splined Extended Length

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S9S-11C11-L V20 Series Vane Pump

415716-7

11 Tooth Splined Extended Length

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S6S-38B11 V20 Series Vane Pump

418930-2

11 Tooth Splined - Short

1.19

06

9

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S6S-38C11 V20 Series Vane Pump

418930-3

11 Tooth Splined - Short

1.19

06

9

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S6S-38D11 V20 Series Vane Pump

418930-4

11 Tooth Splined - Short

1.19

06

9

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S6S-38A11-L V20 Series Vane Pump

418930-5

11 Tooth Splined - Short

1.19

06

9

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CCW Rotation

V20-1S6S-38B11-L V20 Series Vane Pump

418930-6

11 Tooth Splined - Short

1.19

06

9

90 deg CCW from Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S6S-38C11-L V20 Series Vane Pump

418930-7

11 Tooth Splined - Short

1.19

06

9

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P9P-38B11 V20 Series Vane Pump

424838-2

11 Tooth Splined - Short

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P9P-38C11 V20 Series Vane Pump

424838-3

11 Tooth Splined - Short

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P9P-38D11 V20 Series Vane Pump

424838-4

11 Tooth Splined - Short

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P9P-38A11-L V20 Series Vane Pump

424838-5

11 Tooth Splined - Short

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P9P-38C11-L V20 Series Vane Pump

424838-7

11 Tooth Splined - Short

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P13P-38B11 V20 Series Vane Pump

424884-2

11 Tooth Splined - Short

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P13P-38C11 V20 Series Vane Pump

424884-3

11 Tooth Splined - Short

2.59

13

19.5

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P13P-38D11 V20 Series Vane Pump

424884-4

11 Tooth Splined - Short

2.59

13

19.5

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P13P-38A11-L V20 Series Vane Pump

424884-5

11 Tooth Splined - Short

2.59

13

19.5

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P13P-38C11-L V20 Series Vane Pump

424884-7

11 Tooth Splined - Short

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CCW Rotation

V20-1P13P-38D11-L V20 Series Vane Pump

424884-8

11 Tooth Splined - Short

2.59

13

19.5

90 deg CW from Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S11S-38B11 V20 Series Vane Pump

426653-2

11 Tooth Splined - Short

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S11S-38C11 V20 Series Vane Pump

426653-3

11 Tooth Splined - Short

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S11S-38D11 V20 Series Vane Pump

426653-4

11 Tooth Splined - Short

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S11S-38A11-L V20 Series Vane Pump

426653-5

11 Tooth Splined - Short

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S11S-38C11-L V20 Series Vane Pump

426653-7

11 Tooth Splined - Short

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S13S-38B11 V20 Series Vane Pump

428669-2

11 Tooth Splined - Short

2.59

13

19.5

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S13S-38C11 V20 Series Vane Pump

428669-3

11 Tooth Splined - Short

2.59

13

19.5

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S13S-38D11 V20 Series Vane Pump

428669-4

11 Tooth Splined - Short

2.59

13

19.5

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S13S-38A11-L V20 Series Vane Pump

428669-5

11 Tooth Splined - Short

2.59

13

19.5

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S13S-38C11-L V20 Series Vane Pump

428669-7

11 Tooth Splined - Short

2.59

13

19.5

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P7P-38B11 V20 Series Vane Pump

431789-2

11 Tooth Splined - Short

1.39

07

10.5

90 deg CCW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P7P-38C11 V20 Series Vane Pump

431789-3

11 Tooth Splined - Short

1.39

07

10.5

Inline with Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P7P-38D11 V20 Series Vane Pump

431789-4

11 Tooth Splined - Short

1.39

07

10.5

90 deg CW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P7P-38A11-L V20 Series Vane Pump

431789-5

11 Tooth Splined - Short

1.39

07

10.5

Opposite Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P7P-38C11-L V20 Series Vane Pump

431789-7

11 Tooth Splined - Short

1.39

07

10.5

Inline with Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P8P-38B11 V20 Series Vane Pump

433338-2

11 Tooth Splined - Short

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P8P-38C11 V20 Series Vane Pump

433338-3

11 Tooth Splined - Short

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P8P-38D11 V20 Series Vane Pump

433338-4

11 Tooth Splined - Short

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P8P-38A11-L V20 Series Vane Pump

433338-5

11 Tooth Splined - Short

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P8P-38C11-L V20 Series Vane Pump

433338-7

11 Tooth Splined - Short

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 07 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-6S7S-15B11 V20 Series Vane Pump

478057-2

13 Tooth SAE B Splined

1.39

07

10.5

90 deg CCW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-6S7S-15C11 V20 Series Vane Pump

478057-3

13 Tooth SAE B Splined

1.39

07

10.5

Inline with Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-6S7S-15D11 V20 Series Vane Pump

478057-4

13 Tooth SAE B Splined

1.39

07

10.5

90 deg CW from Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-6S7S-15C11-L V20 Series Vane Pump

478057-7

13 Tooth SAE B Splined

1.39

07

10.5

Inline with Inlet

CCW

2500

3000 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S8S-38B11 V20 Series Vane Pump

576970-2

11 Tooth Splined - Short

1.62

08

12

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S8S-38C11 V20 Series Vane Pump

576970-3

11 Tooth Splined - Short

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S8S-38D11 V20 Series Vane Pump

576970-4

11 Tooth Splined - Short

1.62

08

12

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S8S-38A11-L V20 Series Vane Pump

576970-5

11 Tooth Splined - Short

1.62

08

12

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S8S-38C11-L V20 Series Vane Pump

576970-7

11 Tooth Splined - Short

1.62

08

12

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1S9S-38B11 V20 Series Vane Pump

576980-2

11 Tooth Splined - Short

1.81

09

13.5

90 deg CCW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-1S9S-38C11 V20 Series Vane Pump

576980-3

11 Tooth Splined - Short

1.81

09

13.5

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1S9S-38D11 V20 Series Vane Pump

576980-4

11 Tooth Splined - Short

1.81

09

13.5

90 deg CW from Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-1S9S-38A11-L V20 Series Vane Pump

576980-5

11 Tooth Splined - Short

1.81

09

13.5

Opposite Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-1S9S-38C11-L V20 Series Vane Pump

576980-7

11 Tooth Splined - Short

1.81

09

13.5

Inline with Inlet

CCW

2500

2800 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P12P-38B11 V20 Series Vane Pump

578167-2

11 Tooth Splined - Short

2.38

12

18

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P12P-38C11 V20 Series Vane Pump

578167-3

11 Tooth Splined - Short

2.38

12

18

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P12P-38D11 V20 Series Vane Pump

578167-4

11 Tooth Splined - Short

2.38

12

18

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P12P-38A11-L V20 Series Vane Pump

578167-5

11 Tooth Splined - Short

2.38

12

18

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P12P-38C11-L V20 Series Vane Pump

578167-7

11 Tooth Splined - Short

2.38

12

18

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P12P-11B11 V20 Series Vane Pump

584195-2

11 Tooth Splined Extended Length

2.38

12

18

90 deg CCW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P12P-11C11 V20 Series Vane Pump

584195-3

11 Tooth Splined Extended Length

2.38

12

18

Inline with Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P12P-11D11 V20 Series Vane Pump

584195-4

11 Tooth Splined Extended Length

2.38

12

18

90 deg CW from Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P12P-11A11-L V20 Series Vane Pump

584195-5

11 Tooth Splined Extended Length

2.38

12

18

Opposite Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P12P-11C11-L V20 Series Vane Pump

584195-7

11 Tooth Splined Extended Length

2.38

12

18

Inline with Inlet

CCW

2200

2400 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-6S11S-15B11 V20 Series Vane Pump

591418-2

13 Tooth SAE B Splined

2.22

11

16.5

90 deg CCW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-6S11S-15C11 V20 Series Vane Pump

591418-3

13 Tooth SAE B Splined

2.22

11

16.5

Inline with Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-6S11S-15D11 V20 Series Vane Pump

591418-4

13 Tooth SAE B Splined

2.22

11

16.5

90 deg CW from Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CCW Rotation

V20-6S11S-15A11-L V20 Series Vane Pump

591418-5

13 Tooth SAE B Splined

2.22

11

16.5

Opposite Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Inline with Inlet, CCW Rotation

V20-6S11S-15C11-L V20 Series Vane Pump

591418-7

13 Tooth SAE B Splined

2.22

11

16.5

Inline with Inlet

CCW

2500

2500 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined ・3/4・OD Shaft, NPT Ports, Outlet In-line with inlet (C), CCW Rotation

V20-1P13S-38C11L-063 V20 Series Vane Pump

720AR00236A

11 Tooth Splined ・3/4・OD

2.59

13

19.5

In-line with inlet (C)

CCW

2200

2400 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CCW from Inlet, CW Rotation

V20-1P5P-1B11 V20 Series Vane Pump

875445-2

3/4 straight Keyed

1

05

7.5

90 deg CCW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

V20-1P5P-1C11 V20 Series Vane Pump

875445-3

3/4 straight Keyed

1

05

7.5

Inline with Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet 90 deg CW from Inlet, CW Rotation

V20-1P5P-1D11 V20 Series Vane Pump

875445-4

3/4 straight Keyed

1

05

7.5

90 deg CW from Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CCW Rotation

V20-1P5P-1A11-L V20 Series Vane Pump

875445-5

3/4 straight Keyed

1

05

7.5

Opposite Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Inline with Inlet, CCW Rotation

V20-1P5P-1C11-L V20 Series Vane Pump

875445-7

3/4 straight Keyed

1

05

7.5

Inline with Inlet

CCW

2500

3400 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Inline with Inlet, CW Rotation

V20-6S8S-1C11 V20 Series Vane Pump

02-466262-3

3/4 straight Keyed

1.62

08

12

Inline with Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-6S6S-15A11 V20 Series Vane Pump

02-102226-1

13 Tooth SAE B Splined

1.19

06

9

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P10P-38A11 V20 Series Vane Pump

02-125318-1

11 Tooth Splined - Short

2

10

15

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-6S12S-15A11 V20 Series Vane Pump

02-142805-1

13 Tooth SAE B Splined

2.38

12

18

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 05 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P5P-11A11 V20 Series Vane Pump

02-143242-1

11 Tooth Splined Extended Length

1

05

7.5

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-6S8S-15A11 V20 Series Vane Pump

02-151574-1

13 Tooth SAE B Splined

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 10 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S10S-38A11 V20 Series Vane Pump

02-151688-1

11 Tooth Splined - Short

2

10

15

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-6S8S-1A11 V20 Series Vane Pump

02-466262-1

3/4 straight Keyed

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P9P-1A11 V20 Series Vane Pump

358357-1

3/4 straight Keyed

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S11S-1A11 V20 Series Vane Pump

358358-1

3/4 straight Keyed

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S13S-1A11 V20 Series Vane Pump

372561-1

3/4 straight Keyed

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S8S-1A11 V20 Series Vane Pump

372564-1

3/4 straight Keyed

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S13S-11A11 V20 Series Vane Pump

372579-1

11 Tooth Splined Extended Length

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S11S-11A11 V20 Series Vane Pump

372580-1

11 Tooth Splined Extended Length

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S6S-1A11 V20 Series Vane Pump

372585-1

3/4 straight Keyed

1.19

06

9

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 09 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S9S-1A11 V20 Series Vane Pump

372586-1

3/4 straight Keyed

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S11S-15A11 V20 Series Vane Pump

372591-1

13 Tooth SAE B Splined

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S13S-15A11 V20 Series Vane Pump

372598-1

13 Tooth SAE B Splined

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 13 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P13P-1A11 V20 Series Vane Pump

372606-1

3/4 straight Keyed

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 06 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P6P-1A11 V20 Series Vane Pump

372613-1

3/4 straight Keyed

1.19

06

9

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 11 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P11P-1A11 V20 Series Vane Pump

372617-1

3/4 straight Keyed

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 08 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P8P-1A11 V20 Series Vane Pump

372639-1

3/4 straight Keyed

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P8P-15A11 V20 Series Vane Pump

372736-1

13 Tooth SAE B Splined

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P6P-11A11 V20 Series Vane Pump

372746-1

11 Tooth Splined Extended Length

1.19

06

9

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P8P-11A11 V20 Series Vane Pump

372756-1

11 Tooth Splined Extended Length

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P13P-15A11 V20 Series Vane Pump

373669-1

13 Tooth SAE B Splined

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 08 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S8S-15A11 V20 Series Vane Pump

373670-1

13 Tooth SAE B Splined

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P13P-11A11 V20 Series Vane Pump

374344-1

11 Tooth Splined Extended Length

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S9S-15A11 V20 Series Vane Pump

380297-1

13 Tooth SAE B Splined

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P9P-11A11 V20 Series Vane Pump

383526-1

11 Tooth Splined Extended Length

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S8S-11A11 V20 Series Vane Pump

385533-1

11 Tooth Splined Extended Length

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 06 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P6P-15A11 V20 Series Vane Pump

385535-1

13 Tooth SAE B Splined

1.19

06

9

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P6P-38A11 V20 Series Vane Pump

389463-1

11 Tooth Splined - Short

1.19

06

9

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P11P-11A11 V20 Series Vane Pump

390925-1

11 Tooth Splined Extended Length

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 10 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P10P-1A11 V20 Series Vane Pump

391763-1

3/4 straight Keyed

2

10

15

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S7S-1A11 V20 Series Vane Pump

393719-1

3/4 straight Keyed

1.39

07

10.5

Opposite Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P12P-1A11 V20 Series Vane Pump

393723-1

3/4 straight Keyed

2.38

12

18

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 07 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P7P-1A11 V20 Series Vane Pump

394450-1

3/4 straight Keyed

1.39

07

10.5

Opposite Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P7P-11A11 V20 Series Vane Pump

399221-1

11 Tooth Splined Extended Length

1.39

07

10.5

Opposite Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 12 Ring Size, 3/4 straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S12S-1A11 V20 Series Vane Pump

399722-1

3/4 straight Keyed

2.38

12

18

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P12P-15A11 V20 Series Vane Pump

399748-1

13 Tooth SAE B Splined

2.38

12

18

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S7S-11A11 V20 Series Vane Pump

401088-1

11 Tooth Splined Extended Length

1.39

07

10.5

Opposite Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P11P-38A11 V20 Series Vane Pump

406555-1

11 Tooth Splined - Short

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 09 Ring Size, 13 Tooth SAE B Splined Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P9P-15A11 V20 Series Vane Pump

407502-1

13 Tooth SAE B Splined

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined Extended Length Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S9S-11A11 V20 Series Vane Pump

415716-1

11 Tooth Splined Extended Length

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 06 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S6S-38A11 V20 Series Vane Pump

418930-1

11 Tooth Splined - Short

1.19

06

9

Opposite Inlet

CW

2500

3400 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P9P-38A11 V20 Series Vane Pump

424838-1

11 Tooth Splined - Short

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P13P-38A11 V20 Series Vane Pump

424884-1

11 Tooth Splined - Short

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 11 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S11S-38A11 V20 Series Vane Pump

426653-1

11 Tooth Splined - Short

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S13S-38A11 V20 Series Vane Pump

428669-1

11 Tooth Splined - Short

2.59

13

19.5

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 07 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P7P-38A11 V20 Series Vane Pump

431789-1

11 Tooth Splined - Short

1.39

07

10.5

Opposite Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P8P-38A11 V20 Series Vane Pump

433338-1

11 Tooth Splined - Short

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 07 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-6S7S-15A11 V20 Series Vane Pump

478057-1

13 Tooth SAE B Splined

1.39

07

10.5

Opposite Inlet

CW

2500

3000 RPM

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S8S-38A11 V20 Series Vane Pump

576970-1

11 Tooth Splined - Short

1.62

08

12

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 09 Ring Size, 11 Tooth Splined - Short Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-1S9S-38A11 V20 Series Vane Pump

576980-1

11 Tooth Splined - Short

1.81

09

13.5

Opposite Inlet

CW

2500

2800 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P12P-38A11 V20 Series Vane Pump

578167-1

11 Tooth Splined - Short

2.38

12

18

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 12 Ring Size, 11 Tooth Splined Extended Length Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P12P-11A11 V20 Series Vane Pump

584195-1

11 Tooth Splined Extended Length

2.38

12

18

Opposite Inlet

CW

2200

2400 RPM

V20 Series Vane Pump, 11 Ring Size, 13 Tooth SAE B Splined Shaft, SAE Ports, Outlet Opposite Inlet, CW Rotation

V20-6S11S-15A11 V20 Series Vane Pump

591418-1

13 Tooth SAE B Splined

2.22

11

16.5

Opposite Inlet

CW

2500

2500 RPM

V20 Series Vane Pump, 05 Ring Size, 3/4 straight Keyed Shaft, NPT Ports, Outlet Opposite Inlet, CW Rotation

V20-1P5P-1A11 V20 Series Vane Pump

875445-1

3/4 straight Keyed

1

05

7.5

Opposite Inlet

CW

2500

3400 RPM

Product Questions & Answers (3)

Question by: Merle B on Sep 14, 2025, 6:51 PM
pump puts out 19.5 GPM at 1800 RPM -- is that the rated flow or just a max number they throw out there?
Answer by: Customer Support on Sep 16, 2025, 6:21 AM
Rated flow for this pump is 19.5 GPM at 1800 RPM, so that's a real operating figure, not a ceiling. The speed rating goes up to 2400 RPM, and the pressure ceiling sits at 2200 PSI. If your system runs at or near 1800 RPM, that flow number is what you can actually expect under normal conditions.
Question by: Scott H on Apr 8, 2025, 5:10 PM
got a pump here marked V20-1S13S-38C11, is that the same one as this C1LR40 deal or am i mixin stuff up
Answer by: Customer Support on Apr 9, 2025, 6:26 PM
For this pump, C1LR40 is the catalog number and V20-1S13S-38C11 is the model number. Both identifiers refer to the same V20 Series single vane pump configuration with a 13 ring size, 11 tooth short splined shaft, SAE ports, inline outlet with inlet, and clockwise rotation.
Question by: Harvey D on Apr 5, 2025, 8:22 PM
What kind of applications does this pump work for? I got a dump truck that needs a new one.
Answer by: Customer Support on Apr 7, 2025, 12:23 PM
Common applications include oil and gas, metal cutting, dump trucks, wheel loaders, and plastic injection molding.
