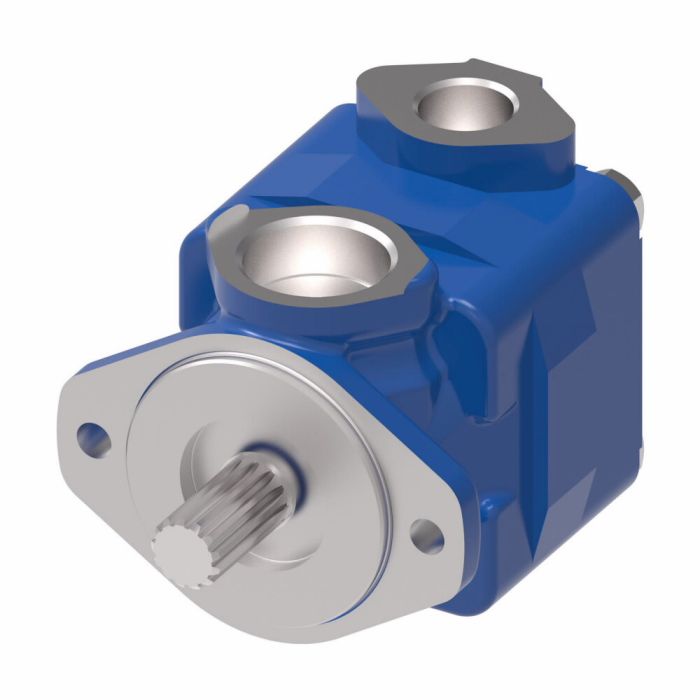

main product photo

V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation

Ask A Question

Description & Features

Designed for demanding industrial fluid power applications, the V20 Series Vane Pump, 08 Ring Size, 11 Tooth Splined - Short Shaft, NPT Ports, Outlet Inline with Inlet, CW Rotation delivers a rated flow of 12 GPM at a maximum pressure of 2500 PSI, with a speed rating of 2800 RPM. The pressure-balanced, modular 12-vane design reduces noise and flow pulsation, a practical advantage in environments where consistent hydraulic performance is critical.

Mounting is via a 2-bolt SAE A or 2-bolt SAE B flange, with 1-1/4" NPT inlet and 3/4" NPT outlet ports positioned inline. The clockwise rotation and short splined shaft configuration suit a range of mobile and stationary equipment, including dump trucks, wheel loaders, metal cutting machinery, and plastic injection molding systems. Manufactured under the Eaton Vickers brand, now part of Danfoss Power Solutions, this pump reflects a well-established platform with a wide range of available displacements across the V20 series.

SKU: 433338-3

Supplier Part Number (MPN): 433338-3

Alternate Part Numbers: V201P8P38C11

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
1.62
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Pressure-balanced, modular 12-vane design|Reduces noise and flow pulsation|Wide range of available displacements
Maximum Pressure
2500
Port Location
Inline with Inlet
Ports
NPT
Rated Flow
12
Ring Size
08
Rotation
CW
Seal Material
None
Series
V20
Shaft
11 Tooth Splined - Short
Special Features
None
Speed Rating
2800 RPM
Supplier Part Number
433338-3
Alternate Part Numbers
Alternate Part Number MINO-00900X57314, Alternate Part Number V201P8P38C11
Product Weight
18.00 lbs
