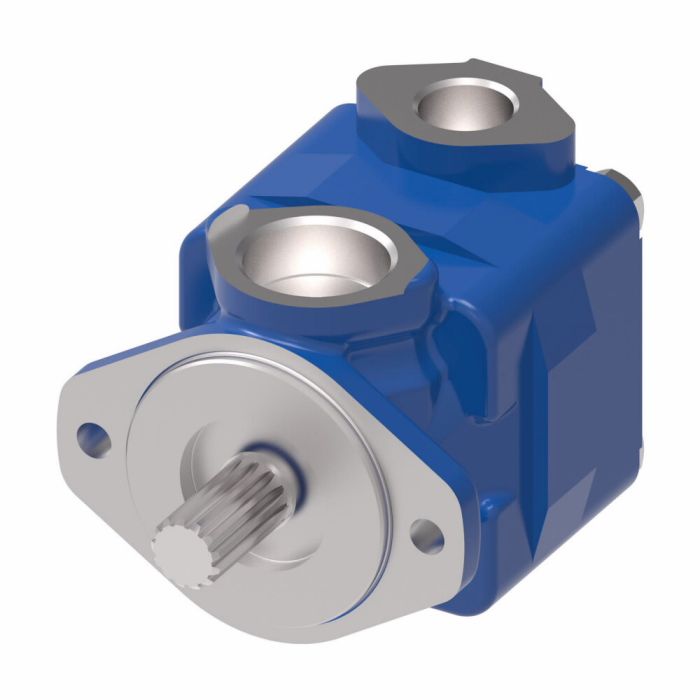

main product photo

V20 Series Vane Pump, 13 Ring Size, 11 Tooth Splined ・3/4・OD Shaft, NPT Ports, Outlet In-line with inlet (C), CCW Rotation

Ask A Question

Description & Features

The V20 Series Single Vane Pumps are designed with a pressure-balanced modular 12-vane structure significantly reducing noise and flow pulsation. With a 13 ring size and an 11 tooth splined 3/4rdquo; OD shaft these vane pumps ensure robust performance and reliability across various industry applications such as oil and gas metal cutting dump trucks wheel loaders and plastic injection molding.

Rated for a maximum pressure of 2200 PSI these pumps provide a rated flow of 19.5 GPM at a displacement of 2.59 cubic inches per revolution. The preferred design includes in-line NPT ports and counter-clockwise rotation making installation and operations efficient and seamless. The 2-bolt SAE A or B mounting flange allows for versatile and secure attachment in demanding industrial settings.

The V20 Series Vane Pump 13 Ring Size 11 Tooth Splined 3/4rdquo; OD Shaft NPT Ports Outlet In-line with inlet (C) CCW Rotation meets the robust requirements of high-speed applications with a speed rating of up to 2400 RPM.

Brand: Danfoss (Power Solutions II LLC)

Product Model Label: V20 Series Single Vane Pumps

Catalog Number: C1KK80

Supplier Part Number: 720AR00236A

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
2.59
Displacement
2.59
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Pressure-balanced, modular 12-vane design|Reduces noise and flow pulsation|Wide range of available displacements
Maximum Pressure
2200
Maximum Pressure
2200
Port Location
In-line with inlet (C)
Ports
NPT
Ports
NPT
Rated Flow
19.50
Rated Flow
19.5
Ring Size
13
Ring Size
13
Rotation
CCW
Seal Material
None
Series
V20
Shaft
11 Tooth Splined ・3/4・OD
Shaft
11 Tooth Splined ・3/4・OD
Special Features
None
Speed Rating
2400 RPM
Speed Rating
2400 RPM
Supplier Part Number
720AR00236A
Alternate Part Numbers
Alternate Part Number C1KK80, Alternate Part Number V201P13S38C11L063
Product Weight
22.00 lbs
