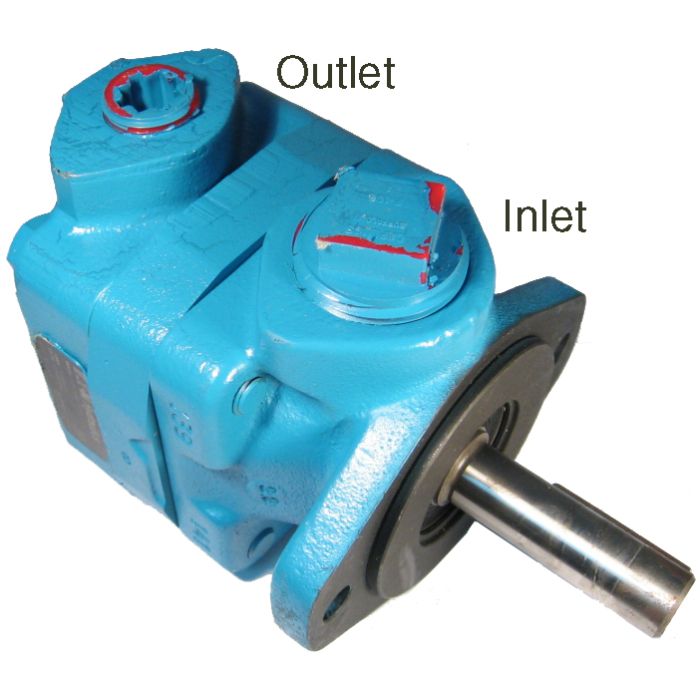

V20 Series Vane Pumps, Up To 19.5 GPM @ 1800 RPM, Up To 2500 PSI, Up To 3400 RPM
Description & Features
| Mounting Flange | 2-Bolt SAE A or 2-Bolt SAE B |
| Ports | 1-1/4'' NPT inlet and 3/4'' NPT outlet, or 1-5/8''-12 SAE inlet and 1-1/16''-12 outlet. |
Products
| Model Number | Part Number | Shaft | Displacement | Ring Size | Rated Flow | Port Location | Rotation | Maximum Pressure | Speed Rating | Price | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|
V20-6S6S-15B11 V20 Series Vane Pump |
02-102226-2 |
13 Tooth SAE B Splined |
1.19 |
06 |
9 |
90 deg CCW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-6S6S-15C11 V20 Series Vane Pump |
02-102226-3 |
13 Tooth SAE B Splined |
1.19 |
06 |
9 |
Inline with Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-6S6S-15D11 V20 Series Vane Pump |
02-102226-4 |
13 Tooth SAE B Splined |
1.19 |
06 |
9 |
90 deg CW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-6S6S-15A11-L V20 Series Vane Pump |
02-102226-5 |
13 Tooth SAE B Splined |
1.19 |
06 |
9 |
Opposite Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-6S6S-15C11-L V20 Series Vane Pump |
02-102226-7 |
13 Tooth SAE B Splined |
1.19 |
06 |
9 |
Inline with Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-6S6S-15D11-L V20 Series Vane Pump |
02-102226-8 |
13 Tooth SAE B Splined |
1.19 |
06 |
9 |
90 deg CW from Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1P10P-38B11 V20 Series Vane Pump |
02-125318-2 |
11 Tooth Splined - Short |
2 |
10 |
15 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P10P-38C11 V20 Series Vane Pump |
02-125318-3 |
11 Tooth Splined - Short |
2 |
10 |
15 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P10P-38D11 V20 Series Vane Pump |
02-125318-4 |
11 Tooth Splined - Short |
2 |
10 |
15 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P10P-38A11-L V20 Series Vane Pump |
02-125318-5 |
11 Tooth Splined - Short |
2 |
10 |
15 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P10P-38C11-L V20 Series Vane Pump |
02-125318-7 |
11 Tooth Splined - Short |
2 |
10 |
15 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-6S12S-15B11 V20 Series Vane Pump |
02-142805-2 |
13 Tooth SAE B Splined |
2.38 |
12 |
18 |
90 deg CCW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-6S12S-15C11 V20 Series Vane Pump |
02-142805-3 |
13 Tooth SAE B Splined |
2.38 |
12 |
18 |
Inline with Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-6S12S-15D11 V20 Series Vane Pump |
02-142805-4 |
13 Tooth SAE B Splined |
2.38 |
12 |
18 |
90 deg CW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-6S12S-15A11-L V20 Series Vane Pump |
02-142805-5 |
13 Tooth SAE B Splined |
2.38 |
12 |
18 |
Opposite Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-6S12S-15C11-L V20 Series Vane Pump |
02-142805-7 |
13 Tooth SAE B Splined |
2.38 |
12 |
18 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P5P-11B11 V20 Series Vane Pump |
02-143242-2 |
11 Tooth Splined Extended Length |
1 |
05 |
7.5 |
90 deg CCW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P5P-11C11 V20 Series Vane Pump |
02-143242-3 |
11 Tooth Splined Extended Length |
1 |
05 |
7.5 |
Inline with Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P5P-11D11 V20 Series Vane Pump |
02-143242-4 |
11 Tooth Splined Extended Length |
1 |
05 |
7.5 |
90 deg CW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P5P-11A11-L V20 Series Vane Pump |
02-143242-5 |
11 Tooth Splined Extended Length |
1 |
05 |
7.5 |
Opposite Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1P5P-11C11-L V20 Series Vane Pump |
02-143242-7 |
11 Tooth Splined Extended Length |
1 |
05 |
7.5 |
Inline with Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-6S8S-15B11 V20 Series Vane Pump |
02-151574-2 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-6S8S-15C11 V20 Series Vane Pump |
02-151574-3 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-6S8S-15D11 V20 Series Vane Pump |
02-151574-4 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-6S8S-15A11-L V20 Series Vane Pump |
02-151574-5 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-6S8S-15C11-L V20 Series Vane Pump |
02-151574-7 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-6S8S-15D11-L V20 Series Vane Pump |
02-151574-8 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
90 deg CW from Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S10S-38B11 V20 Series Vane Pump |
02-151688-2 |
11 Tooth Splined - Short |
2 |
10 |
15 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S10S-38C11 V20 Series Vane Pump |
02-151688-3 |
11 Tooth Splined - Short |
2 |
10 |
15 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S10S-38D11 V20 Series Vane Pump |
02-151688-4 |
11 Tooth Splined - Short |
2 |
10 |
15 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S10S-38A11-L V20 Series Vane Pump |
02-151688-5 |
11 Tooth Splined - Short |
2 |
10 |
15 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S10S-38C11-L V20 Series Vane Pump |
02-151688-7 |
11 Tooth Splined - Short |
2 |
10 |
15 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S12S-38C11 V20 Series Vane Pump |
02-315408-3 |
11 Tooth Splined - Short |
2.38 |
12 |
18 |
Inline with Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S12S-38A11-L V20 Series Vane Pump |
02-315408-5 |
11 Tooth Splined - Short |
2.38 |
12 |
18 |
Opposite Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1S12S-38C11-L V20 Series Vane Pump |
02-315408-7 |
11 Tooth Splined - Short |
2.38 |
12 |
18 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1S10S-1C11 V20 Series Vane Pump |
02-322148-3 |
3/4 straight Keyed |
2 |
10 |
15 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S10S-1D11 V20 Series Vane Pump |
02-322148-4 |
3/4 straight Keyed |
2 |
10 |
15 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S7S-38C11 V20 Series Vane Pump |
02-334748-3 |
11 Tooth Splined - Short |
1.39 |
07 |
10.5 |
Inline with Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1S5S-1B11 V20 Series Vane Pump |
02-345217-2 |
3/4 straight Keyed |
1 |
05 |
7.5 |
90 deg CCW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1S5S-1C11 V20 Series Vane Pump |
02-345217-3 |
3/4 straight Keyed |
1 |
05 |
7.5 |
Inline with Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-6S9S-15C11 V20 Series Vane Pump |
02-345506-3 |
13 Tooth SAE B Splined |
1.81 |
09 |
13.5 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-6S9S-15C11-L V20 Series Vane Pump |
02-345506-7 |
13 Tooth SAE B Splined |
1.81 |
09 |
13.5 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S13S-38B11-063 V20 Series Vane Pump |
02-347239-2 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
90 deg CCW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S13S-38C11LH-063 V20 Series Vane Pump |
02-347239-7 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P9P-1B11 V20 Series Vane Pump |
358357-2 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P9P-1C11 V20 Series Vane Pump |
358357-3 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P9P-1D11 V20 Series Vane Pump |
358357-4 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P9P-1A11-L V20 Series Vane Pump |
358357-5 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P9P-1C11-L V20 Series Vane Pump |
358357-7 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P9P-1D11-L V20 Series Vane Pump |
358357-8 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
90 deg CW from Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S11S-1B11 V20 Series Vane Pump |
358358-2 |
3/4 straight Keyed |
2.22 |
11 |
16.5 |
90 deg CCW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S11S-1C11 V20 Series Vane Pump |
358358-3 |
3/4 straight Keyed |
2.22 |
11 |
16.5 |
Inline with Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S11S-1D11 V20 Series Vane Pump |
358358-4 |
3/4 straight Keyed |
2.22 |
11 |
16.5 |
90 deg CW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S11S-1A11-L V20 Series Vane Pump |
358358-5 |
3/4 straight Keyed |
2.22 |
11 |
16.5 |
Opposite Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1S11S-1C11-L V20 Series Vane Pump |
358358-7 |
3/4 straight Keyed |
2.22 |
11 |
16.5 |
Inline with Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1S13S-1B11 V20 Series Vane Pump |
372561-2 |
3/4 straight Keyed |
2.59 |
13 |
19.5 |
90 deg CCW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S13S-1C11 V20 Series Vane Pump |
372561-3 |
3/4 straight Keyed |
2.59 |
13 |
19.5 |
Inline with Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S13S-1D11 V20 Series Vane Pump |
372561-4 |
3/4 straight Keyed |
2.59 |
13 |
19.5 |
90 deg CW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S13S-1A11-L V20 Series Vane Pump |
372561-5 |
3/4 straight Keyed |
2.59 |
13 |
19.5 |
Opposite Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1S13S-1C11-L V20 Series Vane Pump |
372561-7 |
3/4 straight Keyed |
2.59 |
13 |
19.5 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1S8S-1B11 V20 Series Vane Pump |
372564-2 |
3/4 straight Keyed |
1.62 |
08 |
12 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S8S-1C11 V20 Series Vane Pump |
372564-3 |
3/4 straight Keyed |
1.62 |
08 |
12 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S8S-1D11 V20 Series Vane Pump |
372564-4 |
3/4 straight Keyed |
1.62 |
08 |
12 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S8S-1A11-L V20 Series Vane Pump |
372564-5 |
3/4 straight Keyed |
1.62 |
08 |
12 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S8S-1C11-L V20 Series Vane Pump |
372564-7 |
3/4 straight Keyed |
1.62 |
08 |
12 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S8S-1D11-L V20 Series Vane Pump |
372564-8 |
3/4 straight Keyed |
1.62 |
08 |
12 |
90 deg CW from Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S11S-11B11 V20 Series Vane Pump |
372580-2 |
11 Tooth Splined Extended Length |
2.22 |
11 |
16.5 |
90 deg CCW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S11S-11C11 V20 Series Vane Pump |
372580-3 |
11 Tooth Splined Extended Length |
2.22 |
11 |
16.5 |
Inline with Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S11S-11D11 V20 Series Vane Pump |
372580-4 |
11 Tooth Splined Extended Length |
2.22 |
11 |
16.5 |
90 deg CW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S11S-11A11-L V20 Series Vane Pump |
372580-5 |
11 Tooth Splined Extended Length |
2.22 |
11 |
16.5 |
Opposite Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1S11S-11C11-L V20 Series Vane Pump |
372580-7 |
11 Tooth Splined Extended Length |
2.22 |
11 |
16.5 |
Inline with Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1S6S-1B11 V20 Series Vane Pump |
372585-2 |
3/4 straight Keyed |
1.19 |
06 |
9 |
90 deg CCW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1S6S-1C11 V20 Series Vane Pump |
372585-3 |
3/4 straight Keyed |
1.19 |
06 |
9 |
Inline with Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1S6S-1D11 V20 Series Vane Pump |
372585-4 |
3/4 straight Keyed |
1.19 |
06 |
9 |
90 deg CW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1S6S-1A11-L V20 Series Vane Pump |
372585-5 |
3/4 straight Keyed |
1.19 |
06 |
9 |
Opposite Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1S6S-1C11-L V20 Series Vane Pump |
372585-7 |
3/4 straight Keyed |
1.19 |
06 |
9 |
Inline with Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1S6S-1D11-L V20 Series Vane Pump |
372585-8 |
3/4 straight Keyed |
1.19 |
06 |
9 |
90 deg CW from Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1S9S-1B11 V20 Series Vane Pump |
372586-2 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S9S-1C11 V20 Series Vane Pump |
372586-3 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S9S-1D11 V20 Series Vane Pump |
372586-4 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S9S-1A11-L V20 Series Vane Pump |
372586-5 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S9S-1B11-L V20 Series Vane Pump |
372586-6 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
90 deg CCW from Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S9S-1C11-L V20 Series Vane Pump |
372586-7 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S9S-1D11-L V20 Series Vane Pump |
372586-8 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
90 deg CW from Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S11S-15B11 V20 Series Vane Pump |
372591-2 |
13 Tooth SAE B Splined |
2.22 |
11 |
16.5 |
90 deg CCW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S11S-15C11 V20 Series Vane Pump |
372591-3 |
13 Tooth SAE B Splined |
2.22 |
11 |
16.5 |
Inline with Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S11S-15D11 V20 Series Vane Pump |
372591-4 |
13 Tooth SAE B Splined |
2.22 |
11 |
16.5 |
90 deg CW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S11S-15A11-L V20 Series Vane Pump |
372591-5 |
13 Tooth SAE B Splined |
2.22 |
11 |
16.5 |
Opposite Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1S11S-15C11-L V20 Series Vane Pump |
372591-7 |
13 Tooth SAE B Splined |
2.22 |
11 |
16.5 |
Inline with Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1S6S-11C11 V20 Series Vane Pump |
372594-3 |
11 Tooth Splined Extended Length |
1.19 |
06 |
9 |
Inline with Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1S13S-15B11 V20 Series Vane Pump |
372598-2 |
13 Tooth SAE B Splined |
2.59 |
13 |
19.5 |
90 deg CCW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S13S-15C11 V20 Series Vane Pump |
372598-3 |
13 Tooth SAE B Splined |
2.59 |
13 |
19.5 |
Inline with Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S13S-15D11 V20 Series Vane Pump |
372598-4 |
13 Tooth SAE B Splined |
2.59 |
13 |
19.5 |
90 deg CW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S13S-15A11-L V20 Series Vane Pump |
372598-5 |
13 Tooth SAE B Splined |
2.59 |
13 |
19.5 |
Opposite Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1S13S-15C11-L V20 Series Vane Pump |
372598-7 |
13 Tooth SAE B Splined |
2.59 |
13 |
19.5 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1S13S-15D11-L V20 Series Vane Pump |
372598-8 |
13 Tooth SAE B Splined |
2.59 |
13 |
19.5 |
90 deg CW from Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P13P-1B11 V20 Series Vane Pump |
372606-2 |
3/4 straight Keyed |
2.59 |
13 |
19.5 |
90 deg CCW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P13P-1C11 V20 Series Vane Pump |
372606-3 |
3/4 straight Keyed |
2.59 |
13 |
19.5 |
Inline with Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P13P-1D11 V20 Series Vane Pump |
372606-4 |
3/4 straight Keyed |
2.59 |
13 |
19.5 |
90 deg CW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P13P-1A11-L V20 Series Vane Pump |
372606-5 |
3/4 straight Keyed |
2.59 |
13 |
19.5 |
Opposite Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P13P-1B11-L V20 Series Vane Pump |
372606-6 |
3/4 straight Keyed |
2.59 |
13 |
19.5 |
90 deg CCW from Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P13P-1C11-L V20 Series Vane Pump |
372606-7 |
3/4 straight Keyed |
2.59 |
13 |
19.5 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P13P-1D11-L V20 Series Vane Pump |
372606-8 |
3/4 straight Keyed |
2.59 |
13 |
19.5 |
90 deg CW from Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P6P-1B11 V20 Series Vane Pump |
372613-2 |
3/4 straight Keyed |
1.19 |
06 |
9 |
90 deg CCW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P6P-1C11 V20 Series Vane Pump |
372613-3 |
3/4 straight Keyed |
1.19 |
06 |
9 |
Inline with Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P6P-1D11 V20 Series Vane Pump |
372613-4 |
3/4 straight Keyed |
1.19 |
06 |
9 |
90 deg CW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P6P-1A11-L V20 Series Vane Pump |
372613-5 |
3/4 straight Keyed |
1.19 |
06 |
9 |
Opposite Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1P6P-1B11-L V20 Series Vane Pump |
372613-6 |
3/4 straight Keyed |
1.19 |
06 |
9 |
90 deg CCW from Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1P6P-1C11-L V20 Series Vane Pump |
372613-7 |
3/4 straight Keyed |
1.19 |
06 |
9 |
Inline with Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1P6P-1D11-L V20 Series Vane Pump |
372613-8 |
3/4 straight Keyed |
1.19 |
06 |
9 |
90 deg CW from Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1P11P-1B11 V20 Series Vane Pump |
372617-2 |
3/4 straight Keyed |
2.22 |
11 |
16.5 |
90 deg CCW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1P11P-1C11 V20 Series Vane Pump |
372617-3 |
3/4 straight Keyed |
2.22 |
11 |
16.5 |
Inline with Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1P11P-1D11 V20 Series Vane Pump |
372617-4 |
3/4 straight Keyed |
2.22 |
11 |
16.5 |
90 deg CW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1P11P-1A11-L V20 Series Vane Pump |
372617-5 |
3/4 straight Keyed |
2.22 |
11 |
16.5 |
Opposite Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1P11P-1B11-L V20 Series Vane Pump |
372617-6 |
3/4 straight Keyed |
2.22 |
11 |
16.5 |
90 deg CCW from Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1P11P-1C11-L V20 Series Vane Pump |
372617-7 |
3/4 straight Keyed |
2.22 |
11 |
16.5 |
Inline with Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1P11P-1D11-L V20 Series Vane Pump |
372617-8 |
3/4 straight Keyed |
2.22 |
11 |
16.5 |
90 deg CW from Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1P8P-1B11 V20 Series Vane Pump |
372639-2 |
3/4 straight Keyed |
1.62 |
08 |
12 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P8P-1C11 V20 Series Vane Pump |
372639-3 |
3/4 straight Keyed |
1.62 |
08 |
12 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P8P-1D11 V20 Series Vane Pump |
372639-4 |
3/4 straight Keyed |
1.62 |
08 |
12 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P8P-1A11-L V20 Series Vane Pump |
372639-5 |
3/4 straight Keyed |
1.62 |
08 |
12 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P8P-1C11-L V20 Series Vane Pump |
372639-7 |
3/4 straight Keyed |
1.62 |
08 |
12 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P8P-15B11 V20 Series Vane Pump |
372736-2 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P8P-15C11 V20 Series Vane Pump |
372736-3 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P8P-15D11 V20 Series Vane Pump |
372736-4 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P8P-15A11-L V20 Series Vane Pump |
372736-5 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P8P-15C11-L V20 Series Vane Pump |
372736-7 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P6P-11B11 V20 Series Vane Pump |
372746-2 |
11 Tooth Splined Extended Length |
1.19 |
06 |
9 |
90 deg CCW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P6P-11C11 V20 Series Vane Pump |
372746-3 |
11 Tooth Splined Extended Length |
1.19 |
06 |
9 |
Inline with Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P6P-11D11 V20 Series Vane Pump |
372746-4 |
11 Tooth Splined Extended Length |
1.19 |
06 |
9 |
90 deg CW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P6P-11A11-L V20 Series Vane Pump |
372746-5 |
11 Tooth Splined Extended Length |
1.19 |
06 |
9 |
Opposite Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1P6P-11C11-L V20 Series Vane Pump |
372746-7 |
11 Tooth Splined Extended Length |
1.19 |
06 |
9 |
Inline with Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1P8P-11B11 V20 Series Vane Pump |
372756-2 |
11 Tooth Splined Extended Length |
1.62 |
08 |
12 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P8P-11C11 V20 Series Vane Pump |
372756-3 |
11 Tooth Splined Extended Length |
1.62 |
08 |
12 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P8P-11D11 V20 Series Vane Pump |
372756-4 |
11 Tooth Splined Extended Length |
1.62 |
08 |
12 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P8P-11A11-L V20 Series Vane Pump |
372756-5 |
11 Tooth Splined Extended Length |
1.62 |
08 |
12 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P8P-11C11-L V20 Series Vane Pump |
372756-7 |
11 Tooth Splined Extended Length |
1.62 |
08 |
12 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P13P-15B11 V20 Series Vane Pump |
373669-2 |
13 Tooth SAE B Splined |
2.59 |
13 |
19.5 |
90 deg CCW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P13P-15C11 V20 Series Vane Pump |
373669-3 |
13 Tooth SAE B Splined |
2.59 |
13 |
19.5 |
Inline with Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P13P-15D11 V20 Series Vane Pump |
373669-4 |
13 Tooth SAE B Splined |
2.59 |
13 |
19.5 |
90 deg CW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P13P-15A11-L V20 Series Vane Pump |
373669-5 |
13 Tooth SAE B Splined |
2.59 |
13 |
19.5 |
Opposite Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P13P-15C11-L V20 Series Vane Pump |
373669-7 |
13 Tooth SAE B Splined |
2.59 |
13 |
19.5 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1S8S-15B11 V20 Series Vane Pump |
373670-2 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S8S-15C11 V20 Series Vane Pump |
373670-3 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P13P-11B11 V20 Series Vane Pump |
374344-2 |
11 Tooth Splined Extended Length |
2.59 |
13 |
19.5 |
90 deg CCW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P13P-11C11 V20 Series Vane Pump |
374344-3 |
11 Tooth Splined Extended Length |
2.59 |
13 |
19.5 |
Inline with Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P13P-11D11 V20 Series Vane Pump |
374344-4 |
11 Tooth Splined Extended Length |
2.59 |
13 |
19.5 |
90 deg CW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P13P-11A11-L V20 Series Vane Pump |
374344-5 |
11 Tooth Splined Extended Length |
2.59 |
13 |
19.5 |
Opposite Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P13P-11B11-L V20 Series Vane Pump |
374344-6 |
11 Tooth Splined Extended Length |
2.59 |
13 |
19.5 |
90 deg CCW from Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P13P-11C11-L V20 Series Vane Pump |
374344-7 |
11 Tooth Splined Extended Length |
2.59 |
13 |
19.5 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P13P-11D11-L V20 Series Vane Pump |
374344-8 |
11 Tooth Splined Extended Length |
2.59 |
13 |
19.5 |
90 deg CW from Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1S9S-15B11 V20 Series Vane Pump |
380297-2 |
13 Tooth SAE B Splined |
1.81 |
09 |
13.5 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S9S-15C11 V20 Series Vane Pump |
380297-3 |
13 Tooth SAE B Splined |
1.81 |
09 |
13.5 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S9S-15D11 V20 Series Vane Pump |
380297-4 |
13 Tooth SAE B Splined |
1.81 |
09 |
13.5 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S9S-15A11-L V20 Series Vane Pump |
380297-5 |
13 Tooth SAE B Splined |
1.81 |
09 |
13.5 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S9S-15C11-L V20 Series Vane Pump |
380297-7 |
13 Tooth SAE B Splined |
1.81 |
09 |
13.5 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P9P-11B11 V20 Series Vane Pump |
383526-2 |
11 Tooth Splined Extended Length |
1.81 |
09 |
13.5 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P9P-11C11 V20 Series Vane Pump |
383526-3 |
11 Tooth Splined Extended Length |
1.81 |
09 |
13.5 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P9P-11D11 V20 Series Vane Pump |
383526-4 |
11 Tooth Splined Extended Length |
1.81 |
09 |
13.5 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P9P-11A11-L V20 Series Vane Pump |
383526-5 |
11 Tooth Splined Extended Length |
1.81 |
09 |
13.5 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P9P-11C11-L V20 Series Vane Pump |
383526-7 |
11 Tooth Splined Extended Length |
1.81 |
09 |
13.5 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S8S-11B11 V20 Series Vane Pump |
385533-2 |
11 Tooth Splined Extended Length |
1.62 |
08 |
12 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S8S-11C11 V20 Series Vane Pump |
385533-3 |
11 Tooth Splined Extended Length |
1.62 |
08 |
12 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S8S-11D11 V20 Series Vane Pump |
385533-4 |
11 Tooth Splined Extended Length |
1.62 |
08 |
12 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S8S-11A11-L V20 Series Vane Pump |
385533-5 |
11 Tooth Splined Extended Length |
1.62 |
08 |
12 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S8S-11C11-L V20 Series Vane Pump |
385533-7 |
11 Tooth Splined Extended Length |
1.62 |
08 |
12 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P6P-15B11 V20 Series Vane Pump |
385535-2 |
13 Tooth SAE B Splined |
1.19 |
06 |
9 |
90 deg CCW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P6P-15C11 V20 Series Vane Pump |
385535-3 |
13 Tooth SAE B Splined |
1.19 |
06 |
9 |
Inline with Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P6P-15D11 V20 Series Vane Pump |
385535-4 |
13 Tooth SAE B Splined |
1.19 |
06 |
9 |
90 deg CW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P6P-15A11-L V20 Series Vane Pump |
385535-5 |
13 Tooth SAE B Splined |
1.19 |
06 |
9 |
Opposite Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1P6P-15C11-L V20 Series Vane Pump |
385535-7 |
13 Tooth SAE B Splined |
1.19 |
06 |
9 |
Inline with Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1P6P-38B11 V20 Series Vane Pump |
389463-2 |
11 Tooth Splined - Short |
1.19 |
06 |
9 |
90 deg CCW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P6P-38C11 V20 Series Vane Pump |
389463-3 |
11 Tooth Splined - Short |
1.19 |
06 |
9 |
Inline with Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P6P-38D11 V20 Series Vane Pump |
389463-4 |
11 Tooth Splined - Short |
1.19 |
06 |
9 |
90 deg CW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P6P-38A11-L V20 Series Vane Pump |
389463-5 |
11 Tooth Splined - Short |
1.19 |
06 |
9 |
Opposite Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1P6P-38C11-L V20 Series Vane Pump |
389463-7 |
11 Tooth Splined - Short |
1.19 |
06 |
9 |
Inline with Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1P11P-11B11 V20 Series Vane Pump |
390925-2 |
11 Tooth Splined Extended Length |
2.22 |
11 |
16.5 |
90 deg CCW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1P11P-11C11 V20 Series Vane Pump |
390925-3 |
11 Tooth Splined Extended Length |
2.22 |
11 |
16.5 |
Inline with Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1P11P-11D11 V20 Series Vane Pump |
390925-4 |
11 Tooth Splined Extended Length |
2.22 |
11 |
16.5 |
90 deg CW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1P11P-11A11-L V20 Series Vane Pump |
390925-5 |
11 Tooth Splined Extended Length |
2.22 |
11 |
16.5 |
Opposite Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1P11P-11C11-L V20 Series Vane Pump |
390925-7 |
11 Tooth Splined Extended Length |
2.22 |
11 |
16.5 |
Inline with Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1P11P-11D11-L V20 Series Vane Pump |
390925-8 |
11 Tooth Splined Extended Length |
2.22 |
11 |
16.5 |
90 deg CW from Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1P10P-1B11 V20 Series Vane Pump |
391763-2 |
3/4 straight Keyed |
2 |
10 |
15 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P10P-1C11 V20 Series Vane Pump |
391763-3 |
3/4 straight Keyed |
2 |
10 |
15 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P10P-1D11 V20 Series Vane Pump |
391763-4 |
3/4 straight Keyed |
2 |
10 |
15 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P10P-1A11-L V20 Series Vane Pump |
391763-5 |
3/4 straight Keyed |
2 |
10 |
15 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P10P-1C11-L V20 Series Vane Pump |
391763-7 |
3/4 straight Keyed |
2 |
10 |
15 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S7S-1B11 V20 Series Vane Pump |
393719-2 |
3/4 straight Keyed |
1.39 |
07 |
10.5 |
90 deg CCW from Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1S7S-1C11 V20 Series Vane Pump |
393719-3 |
3/4 straight Keyed |
1.39 |
07 |
10.5 |
Inline with Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1S7S-1D11 V20 Series Vane Pump |
393719-4 |
3/4 straight Keyed |
1.39 |
07 |
10.5 |
90 deg CW from Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1S7S-1A11-L V20 Series Vane Pump |
393719-5 |
3/4 straight Keyed |
1.39 |
07 |
10.5 |
Opposite Inlet |
CCW |
2500 |
3000 RPM |
|
|
V20-1S7S-1C11-L V20 Series Vane Pump |
393719-7 |
3/4 straight Keyed |
1.39 |
07 |
10.5 |
Inline with Inlet |
CCW |
2500 |
3000 RPM |
|
|
V20-1P12P-1B11 V20 Series Vane Pump |
393723-2 |
3/4 straight Keyed |
2.38 |
12 |
18 |
90 deg CCW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P12P-1C11 V20 Series Vane Pump |
393723-3 |
3/4 straight Keyed |
2.38 |
12 |
18 |
Inline with Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P12P-1D11 V20 Series Vane Pump |
393723-4 |
3/4 straight Keyed |
2.38 |
12 |
18 |
90 deg CW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P12P-1A11-L V20 Series Vane Pump |
393723-5 |
3/4 straight Keyed |
2.38 |
12 |
18 |
Opposite Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P12P-1C11-L V20 Series Vane Pump |
393723-7 |
3/4 straight Keyed |
2.38 |
12 |
18 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P7P-1B11 V20 Series Vane Pump |
394450-2 |
3/4 straight Keyed |
1.39 |
07 |
10.5 |
90 deg CCW from Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1P7P-1C11 V20 Series Vane Pump |
394450-3 |
3/4 straight Keyed |
1.39 |
07 |
10.5 |
Inline with Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1P7P-1D11 V20 Series Vane Pump |
394450-4 |
3/4 straight Keyed |
1.39 |
07 |
10.5 |
90 deg CW from Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1P7P-1A11-L V20 Series Vane Pump |
394450-5 |
3/4 straight Keyed |
1.39 |
07 |
10.5 |
Opposite Inlet |
CCW |
2500 |
3000 RPM |
|
|
V20-1P7P-1C11-L V20 Series Vane Pump |
394450-7 |
3/4 straight Keyed |
1.39 |
07 |
10.5 |
Inline with Inlet |
CCW |
2500 |
3000 RPM |
|
|
V20-1P7P-11B11 V20 Series Vane Pump |
399221-2 |
11 Tooth Splined Extended Length |
1.39 |
07 |
10.5 |
90 deg CCW from Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1P7P-11C11 V20 Series Vane Pump |
399221-3 |
11 Tooth Splined Extended Length |
1.39 |
07 |
10.5 |
Inline with Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1P7P-11D11 V20 Series Vane Pump |
399221-4 |
11 Tooth Splined Extended Length |
1.39 |
07 |
10.5 |
90 deg CW from Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1P7P-11A11-L V20 Series Vane Pump |
399221-5 |
11 Tooth Splined Extended Length |
1.39 |
07 |
10.5 |
Opposite Inlet |
CCW |
2500 |
3000 RPM |
|
|
V20-1P7P-11C11-L V20 Series Vane Pump |
399221-7 |
11 Tooth Splined Extended Length |
1.39 |
07 |
10.5 |
Inline with Inlet |
CCW |
2500 |
3000 RPM |
|
|
V20-1S12S-1B11 V20 Series Vane Pump |
399722-2 |
3/4 straight Keyed |
2.38 |
12 |
18 |
90 deg CCW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S12S-1C11 V20 Series Vane Pump |
399722-3 |
3/4 straight Keyed |
2.38 |
12 |
18 |
Inline with Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S12S-1D11 V20 Series Vane Pump |
399722-4 |
3/4 straight Keyed |
2.38 |
12 |
18 |
90 deg CW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S12S-1A11-L V20 Series Vane Pump |
399722-5 |
3/4 straight Keyed |
2.38 |
12 |
18 |
Opposite Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1S12S-1C11-L V20 Series Vane Pump |
399722-7 |
3/4 straight Keyed |
2.38 |
12 |
18 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P12P-15B11 V20 Series Vane Pump |
399748-2 |
13 Tooth SAE B Splined |
2.38 |
12 |
18 |
90 deg CCW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P12P-15C11 V20 Series Vane Pump |
399748-3 |
13 Tooth SAE B Splined |
2.38 |
12 |
18 |
Inline with Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P12P-15D11 V20 Series Vane Pump |
399748-4 |
13 Tooth SAE B Splined |
2.38 |
12 |
18 |
90 deg CW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P12P-15A11-L V20 Series Vane Pump |
399748-5 |
13 Tooth SAE B Splined |
2.38 |
12 |
18 |
Opposite Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P12P-15C11-L V20 Series Vane Pump |
399748-7 |
13 Tooth SAE B Splined |
2.38 |
12 |
18 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1S7S-11B11 V20 Series Vane Pump |
401088-2 |
11 Tooth Splined Extended Length |
1.39 |
07 |
10.5 |
90 deg CCW from Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1S7S-11C11 V20 Series Vane Pump |
401088-3 |
11 Tooth Splined Extended Length |
1.39 |
07 |
10.5 |
Inline with Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1S7S-11D11 V20 Series Vane Pump |
401088-4 |
11 Tooth Splined Extended Length |
1.39 |
07 |
10.5 |
90 deg CW from Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1S7S-11A11-L V20 Series Vane Pump |
401088-5 |
11 Tooth Splined Extended Length |
1.39 |
07 |
10.5 |
Opposite Inlet |
CCW |
2500 |
3000 RPM |
|
|
V20-1S7S-11C11-L V20 Series Vane Pump |
401088-7 |
11 Tooth Splined Extended Length |
1.39 |
07 |
10.5 |
Inline with Inlet |
CCW |
2500 |
3000 RPM |
|
|
V20-1P11P-38B11 V20 Series Vane Pump |
406555-2 |
11 Tooth Splined - Short |
2.22 |
11 |
16.5 |
90 deg CCW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1P11P-38C11 V20 Series Vane Pump |
406555-3 |
11 Tooth Splined - Short |
2.22 |
11 |
16.5 |
Inline with Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1P11P-38D11 V20 Series Vane Pump |
406555-4 |
11 Tooth Splined - Short |
2.22 |
11 |
16.5 |
90 deg CW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1P11P-38A11-L V20 Series Vane Pump |
406555-5 |
11 Tooth Splined - Short |
2.22 |
11 |
16.5 |
Opposite Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1P11P-38C11-L V20 Series Vane Pump |
406555-7 |
11 Tooth Splined - Short |
2.22 |
11 |
16.5 |
Inline with Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1P9P-15B11 V20 Series Vane Pump |
407502-2 |
13 Tooth SAE B Splined |
1.81 |
09 |
13.5 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P9P-15C11 V20 Series Vane Pump |
407502-3 |
13 Tooth SAE B Splined |
1.81 |
09 |
13.5 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P9P-15D11 V20 Series Vane Pump |
407502-4 |
13 Tooth SAE B Splined |
1.81 |
09 |
13.5 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P9P-15A11-L V20 Series Vane Pump |
407502-5 |
13 Tooth SAE B Splined |
1.81 |
09 |
13.5 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P9P-15C11-L V20 Series Vane Pump |
407502-7 |
13 Tooth SAE B Splined |
1.81 |
09 |
13.5 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S9S-11B11 V20 Series Vane Pump |
415716-2 |
11 Tooth Splined Extended Length |
1.81 |
09 |
13.5 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S9S-11C11 V20 Series Vane Pump |
415716-3 |
11 Tooth Splined Extended Length |
1.81 |
09 |
13.5 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S9S-11D11 V20 Series Vane Pump |
415716-4 |
11 Tooth Splined Extended Length |
1.81 |
09 |
13.5 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S9S-11A11-L V20 Series Vane Pump |
415716-5 |
11 Tooth Splined Extended Length |
1.81 |
09 |
13.5 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S9S-11C11-L V20 Series Vane Pump |
415716-7 |
11 Tooth Splined Extended Length |
1.81 |
09 |
13.5 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S6S-38B11 V20 Series Vane Pump |
418930-2 |
11 Tooth Splined - Short |
1.19 |
06 |
9 |
90 deg CCW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1S6S-38C11 V20 Series Vane Pump |
418930-3 |
11 Tooth Splined - Short |
1.19 |
06 |
9 |
Inline with Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1S6S-38D11 V20 Series Vane Pump |
418930-4 |
11 Tooth Splined - Short |
1.19 |
06 |
9 |
90 deg CW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1S6S-38A11-L V20 Series Vane Pump |
418930-5 |
11 Tooth Splined - Short |
1.19 |
06 |
9 |
Opposite Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1S6S-38B11-L V20 Series Vane Pump |
418930-6 |
11 Tooth Splined - Short |
1.19 |
06 |
9 |
90 deg CCW from Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1S6S-38C11-L V20 Series Vane Pump |
418930-7 |
11 Tooth Splined - Short |
1.19 |
06 |
9 |
Inline with Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1P9P-38B11 V20 Series Vane Pump |
424838-2 |
11 Tooth Splined - Short |
1.81 |
09 |
13.5 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P9P-38C11 V20 Series Vane Pump |
424838-3 |
11 Tooth Splined - Short |
1.81 |
09 |
13.5 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P9P-38D11 V20 Series Vane Pump |
424838-4 |
11 Tooth Splined - Short |
1.81 |
09 |
13.5 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P9P-38A11-L V20 Series Vane Pump |
424838-5 |
11 Tooth Splined - Short |
1.81 |
09 |
13.5 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P9P-38C11-L V20 Series Vane Pump |
424838-7 |
11 Tooth Splined - Short |
1.81 |
09 |
13.5 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P13P-38B11 V20 Series Vane Pump |
424884-2 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
90 deg CCW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P13P-38C11 V20 Series Vane Pump |
424884-3 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
Inline with Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P13P-38D11 V20 Series Vane Pump |
424884-4 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
90 deg CW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P13P-38A11-L V20 Series Vane Pump |
424884-5 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
Opposite Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P13P-38C11-L V20 Series Vane Pump |
424884-7 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P13P-38D11-L V20 Series Vane Pump |
424884-8 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
90 deg CW from Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1S11S-38B11 V20 Series Vane Pump |
426653-2 |
11 Tooth Splined - Short |
2.22 |
11 |
16.5 |
90 deg CCW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S11S-38C11 V20 Series Vane Pump |
426653-3 |
11 Tooth Splined - Short |
2.22 |
11 |
16.5 |
Inline with Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S11S-38D11 V20 Series Vane Pump |
426653-4 |
11 Tooth Splined - Short |
2.22 |
11 |
16.5 |
90 deg CW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S11S-38A11-L V20 Series Vane Pump |
426653-5 |
11 Tooth Splined - Short |
2.22 |
11 |
16.5 |
Opposite Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1S11S-38C11-L V20 Series Vane Pump |
426653-7 |
11 Tooth Splined - Short |
2.22 |
11 |
16.5 |
Inline with Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1S13S-38B11 V20 Series Vane Pump |
428669-2 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
90 deg CCW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S13S-38C11 V20 Series Vane Pump |
428669-3 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
Inline with Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S13S-38D11 V20 Series Vane Pump |
428669-4 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
90 deg CW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S13S-38A11-L V20 Series Vane Pump |
428669-5 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
Opposite Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1S13S-38C11-L V20 Series Vane Pump |
428669-7 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P7P-38B11 V20 Series Vane Pump |
431789-2 |
11 Tooth Splined - Short |
1.39 |
07 |
10.5 |
90 deg CCW from Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1P7P-38C11 V20 Series Vane Pump |
431789-3 |
11 Tooth Splined - Short |
1.39 |
07 |
10.5 |
Inline with Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1P7P-38D11 V20 Series Vane Pump |
431789-4 |
11 Tooth Splined - Short |
1.39 |
07 |
10.5 |
90 deg CW from Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1P7P-38A11-L V20 Series Vane Pump |
431789-5 |
11 Tooth Splined - Short |
1.39 |
07 |
10.5 |
Opposite Inlet |
CCW |
2500 |
3000 RPM |
|
|
V20-1P7P-38C11-L V20 Series Vane Pump |
431789-7 |
11 Tooth Splined - Short |
1.39 |
07 |
10.5 |
Inline with Inlet |
CCW |
2500 |
3000 RPM |
|
|
V20-1P8P-38B11 V20 Series Vane Pump |
433338-2 |
11 Tooth Splined - Short |
1.62 |
08 |
12 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P8P-38C11 V20 Series Vane Pump |
433338-3 |
11 Tooth Splined - Short |
1.62 |
08 |
12 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P8P-38D11 V20 Series Vane Pump |
433338-4 |
11 Tooth Splined - Short |
1.62 |
08 |
12 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P8P-38A11-L V20 Series Vane Pump |
433338-5 |
11 Tooth Splined - Short |
1.62 |
08 |
12 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P8P-38C11-L V20 Series Vane Pump |
433338-7 |
11 Tooth Splined - Short |
1.62 |
08 |
12 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-6S7S-15B11 V20 Series Vane Pump |
478057-2 |
13 Tooth SAE B Splined |
1.39 |
07 |
10.5 |
90 deg CCW from Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-6S7S-15C11 V20 Series Vane Pump |
478057-3 |
13 Tooth SAE B Splined |
1.39 |
07 |
10.5 |
Inline with Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-6S7S-15D11 V20 Series Vane Pump |
478057-4 |
13 Tooth SAE B Splined |
1.39 |
07 |
10.5 |
90 deg CW from Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-6S7S-15C11-L V20 Series Vane Pump |
478057-7 |
13 Tooth SAE B Splined |
1.39 |
07 |
10.5 |
Inline with Inlet |
CCW |
2500 |
3000 RPM |
|
|
V20-1S8S-38B11 V20 Series Vane Pump |
576970-2 |
11 Tooth Splined - Short |
1.62 |
08 |
12 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S8S-38C11 V20 Series Vane Pump |
576970-3 |
11 Tooth Splined - Short |
1.62 |
08 |
12 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S8S-38D11 V20 Series Vane Pump |
576970-4 |
11 Tooth Splined - Short |
1.62 |
08 |
12 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S8S-38A11-L V20 Series Vane Pump |
576970-5 |
11 Tooth Splined - Short |
1.62 |
08 |
12 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S8S-38C11-L V20 Series Vane Pump |
576970-7 |
11 Tooth Splined - Short |
1.62 |
08 |
12 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S9S-38B11 V20 Series Vane Pump |
576980-2 |
11 Tooth Splined - Short |
1.81 |
09 |
13.5 |
90 deg CCW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S9S-38C11 V20 Series Vane Pump |
576980-3 |
11 Tooth Splined - Short |
1.81 |
09 |
13.5 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S9S-38D11 V20 Series Vane Pump |
576980-4 |
11 Tooth Splined - Short |
1.81 |
09 |
13.5 |
90 deg CW from Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S9S-38A11-L V20 Series Vane Pump |
576980-5 |
11 Tooth Splined - Short |
1.81 |
09 |
13.5 |
Opposite Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1S9S-38C11-L V20 Series Vane Pump |
576980-7 |
11 Tooth Splined - Short |
1.81 |
09 |
13.5 |
Inline with Inlet |
CCW |
2500 |
2800 RPM |
|
|
V20-1P12P-38B11 V20 Series Vane Pump |
578167-2 |
11 Tooth Splined - Short |
2.38 |
12 |
18 |
90 deg CCW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P12P-38C11 V20 Series Vane Pump |
578167-3 |
11 Tooth Splined - Short |
2.38 |
12 |
18 |
Inline with Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P12P-38D11 V20 Series Vane Pump |
578167-4 |
11 Tooth Splined - Short |
2.38 |
12 |
18 |
90 deg CW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P12P-38A11-L V20 Series Vane Pump |
578167-5 |
11 Tooth Splined - Short |
2.38 |
12 |
18 |
Opposite Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P12P-38C11-L V20 Series Vane Pump |
578167-7 |
11 Tooth Splined - Short |
2.38 |
12 |
18 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P12P-11B11 V20 Series Vane Pump |
584195-2 |
11 Tooth Splined Extended Length |
2.38 |
12 |
18 |
90 deg CCW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P12P-11C11 V20 Series Vane Pump |
584195-3 |
11 Tooth Splined Extended Length |
2.38 |
12 |
18 |
Inline with Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P12P-11D11 V20 Series Vane Pump |
584195-4 |
11 Tooth Splined Extended Length |
2.38 |
12 |
18 |
90 deg CW from Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P12P-11A11-L V20 Series Vane Pump |
584195-5 |
11 Tooth Splined Extended Length |
2.38 |
12 |
18 |
Opposite Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-1P12P-11C11-L V20 Series Vane Pump |
584195-7 |
11 Tooth Splined Extended Length |
2.38 |
12 |
18 |
Inline with Inlet |
CCW |
2200 |
2400 RPM |
|
|
V20-6S11S-15B11 V20 Series Vane Pump |
591418-2 |
13 Tooth SAE B Splined |
2.22 |
11 |
16.5 |
90 deg CCW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-6S11S-15C11 V20 Series Vane Pump |
591418-3 |
13 Tooth SAE B Splined |
2.22 |
11 |
16.5 |
Inline with Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-6S11S-15D11 V20 Series Vane Pump |
591418-4 |
13 Tooth SAE B Splined |
2.22 |
11 |
16.5 |
90 deg CW from Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-6S11S-15A11-L V20 Series Vane Pump |
591418-5 |
13 Tooth SAE B Splined |
2.22 |
11 |
16.5 |
Opposite Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-6S11S-15C11-L V20 Series Vane Pump |
591418-7 |
13 Tooth SAE B Splined |
2.22 |
11 |
16.5 |
Inline with Inlet |
CCW |
2500 |
2500 RPM |
|
|
V20-1P13S-38C11L-063 V20 Series Vane Pump |
720AR00236A |
11 Tooth Splined ・3/4・OD |
2.59 |
13 |
19.5 |
In-line with inlet (C) |
CCW |
2200 |
2400 RPM |
|
|
V20-1P5P-1B11 V20 Series Vane Pump |
875445-2 |
3/4 straight Keyed |
1 |
05 |
7.5 |
90 deg CCW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P5P-1C11 V20 Series Vane Pump |
875445-3 |
3/4 straight Keyed |
1 |
05 |
7.5 |
Inline with Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P5P-1D11 V20 Series Vane Pump |
875445-4 |
3/4 straight Keyed |
1 |
05 |
7.5 |
90 deg CW from Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P5P-1A11-L V20 Series Vane Pump |
875445-5 |
3/4 straight Keyed |
1 |
05 |
7.5 |
Opposite Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-1P5P-1C11-L V20 Series Vane Pump |
875445-7 |
3/4 straight Keyed |
1 |
05 |
7.5 |
Inline with Inlet |
CCW |
2500 |
3400 RPM |
|
|
V20-6S8S-1C11 V20 Series Vane Pump |
02-466262-3 |
3/4 straight Keyed |
1.62 |
08 |
12 |
Inline with Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-6S6S-15A11 V20 Series Vane Pump |
02-102226-1 |
13 Tooth SAE B Splined |
1.19 |
06 |
9 |
Opposite Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P10P-38A11 V20 Series Vane Pump |
02-125318-1 |
11 Tooth Splined - Short |
2 |
10 |
15 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-6S12S-15A11 V20 Series Vane Pump |
02-142805-1 |
13 Tooth SAE B Splined |
2.38 |
12 |
18 |
Opposite Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P5P-11A11 V20 Series Vane Pump |
02-143242-1 |
11 Tooth Splined Extended Length |
1 |
05 |
7.5 |
Opposite Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-6S8S-15A11 V20 Series Vane Pump |
02-151574-1 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S10S-38A11 V20 Series Vane Pump |
02-151688-1 |
11 Tooth Splined - Short |
2 |
10 |
15 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-6S8S-1A11 V20 Series Vane Pump |
02-466262-1 |
3/4 straight Keyed |
1.62 |
08 |
12 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P9P-1A11 V20 Series Vane Pump |
358357-1 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S11S-1A11 V20 Series Vane Pump |
358358-1 |
3/4 straight Keyed |
2.22 |
11 |
16.5 |
Opposite Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S13S-1A11 V20 Series Vane Pump |
372561-1 |
3/4 straight Keyed |
2.59 |
13 |
19.5 |
Opposite Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S8S-1A11 V20 Series Vane Pump |
372564-1 |
3/4 straight Keyed |
1.62 |
08 |
12 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S13S-11A11 V20 Series Vane Pump |
372579-1 |
11 Tooth Splined Extended Length |
2.59 |
13 |
19.5 |
Opposite Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S11S-11A11 V20 Series Vane Pump |
372580-1 |
11 Tooth Splined Extended Length |
2.22 |
11 |
16.5 |
Opposite Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S6S-1A11 V20 Series Vane Pump |
372585-1 |
3/4 straight Keyed |
1.19 |
06 |
9 |
Opposite Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1S9S-1A11 V20 Series Vane Pump |
372586-1 |
3/4 straight Keyed |
1.81 |
09 |
13.5 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S11S-15A11 V20 Series Vane Pump |
372591-1 |
13 Tooth SAE B Splined |
2.22 |
11 |
16.5 |
Opposite Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S13S-15A11 V20 Series Vane Pump |
372598-1 |
13 Tooth SAE B Splined |
2.59 |
13 |
19.5 |
Opposite Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P13P-1A11 V20 Series Vane Pump |
372606-1 |
3/4 straight Keyed |
2.59 |
13 |
19.5 |
Opposite Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P6P-1A11 V20 Series Vane Pump |
372613-1 |
3/4 straight Keyed |
1.19 |
06 |
9 |
Opposite Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P11P-1A11 V20 Series Vane Pump |
372617-1 |
3/4 straight Keyed |
2.22 |
11 |
16.5 |
Opposite Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1P8P-1A11 V20 Series Vane Pump |
372639-1 |
3/4 straight Keyed |
1.62 |
08 |
12 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P8P-15A11 V20 Series Vane Pump |
372736-1 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P6P-11A11 V20 Series Vane Pump |
372746-1 |
11 Tooth Splined Extended Length |
1.19 |
06 |
9 |
Opposite Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P8P-11A11 V20 Series Vane Pump |
372756-1 |
11 Tooth Splined Extended Length |
1.62 |
08 |
12 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P13P-15A11 V20 Series Vane Pump |
373669-1 |
13 Tooth SAE B Splined |
2.59 |
13 |
19.5 |
Opposite Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S8S-15A11 V20 Series Vane Pump |
373670-1 |
13 Tooth SAE B Splined |
1.62 |
08 |
12 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P13P-11A11 V20 Series Vane Pump |
374344-1 |
11 Tooth Splined Extended Length |
2.59 |
13 |
19.5 |
Opposite Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S9S-15A11 V20 Series Vane Pump |
380297-1 |
13 Tooth SAE B Splined |
1.81 |
09 |
13.5 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P9P-11A11 V20 Series Vane Pump |
383526-1 |
11 Tooth Splined Extended Length |
1.81 |
09 |
13.5 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S8S-11A11 V20 Series Vane Pump |
385533-1 |
11 Tooth Splined Extended Length |
1.62 |
08 |
12 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P6P-15A11 V20 Series Vane Pump |
385535-1 |
13 Tooth SAE B Splined |
1.19 |
06 |
9 |
Opposite Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P6P-38A11 V20 Series Vane Pump |
389463-1 |
11 Tooth Splined - Short |
1.19 |
06 |
9 |
Opposite Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P11P-11A11 V20 Series Vane Pump |
390925-1 |
11 Tooth Splined Extended Length |
2.22 |
11 |
16.5 |
Opposite Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1P10P-1A11 V20 Series Vane Pump |
391763-1 |
3/4 straight Keyed |
2 |
10 |
15 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S7S-1A11 V20 Series Vane Pump |
393719-1 |
3/4 straight Keyed |
1.39 |
07 |
10.5 |
Opposite Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1P12P-1A11 V20 Series Vane Pump |
393723-1 |
3/4 straight Keyed |
2.38 |
12 |
18 |
Opposite Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P7P-1A11 V20 Series Vane Pump |
394450-1 |
3/4 straight Keyed |
1.39 |
07 |
10.5 |
Opposite Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1P7P-11A11 V20 Series Vane Pump |
399221-1 |
11 Tooth Splined Extended Length |
1.39 |
07 |
10.5 |
Opposite Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1S12S-1A11 V20 Series Vane Pump |
399722-1 |
3/4 straight Keyed |
2.38 |
12 |
18 |
Opposite Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P12P-15A11 V20 Series Vane Pump |
399748-1 |
13 Tooth SAE B Splined |
2.38 |
12 |
18 |
Opposite Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S7S-11A11 V20 Series Vane Pump |
401088-1 |
11 Tooth Splined Extended Length |
1.39 |
07 |
10.5 |
Opposite Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1P11P-38A11 V20 Series Vane Pump |
406555-1 |
11 Tooth Splined - Short |
2.22 |
11 |
16.5 |
Opposite Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1P9P-15A11 V20 Series Vane Pump |
407502-1 |
13 Tooth SAE B Splined |
1.81 |
09 |
13.5 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S9S-11A11 V20 Series Vane Pump |
415716-1 |
11 Tooth Splined Extended Length |
1.81 |
09 |
13.5 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S6S-38A11 V20 Series Vane Pump |
418930-1 |
11 Tooth Splined - Short |
1.19 |
06 |
9 |
Opposite Inlet |
CW |
2500 |
3400 RPM |
|
|
V20-1P9P-38A11 V20 Series Vane Pump |
424838-1 |
11 Tooth Splined - Short |
1.81 |
09 |
13.5 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P13P-38A11 V20 Series Vane Pump |
424884-1 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
Opposite Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1S11S-38A11 V20 Series Vane Pump |
426653-1 |
11 Tooth Splined - Short |
2.22 |
11 |
16.5 |
Opposite Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1S13S-38A11 V20 Series Vane Pump |
428669-1 |
11 Tooth Splined - Short |
2.59 |
13 |
19.5 |
Opposite Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P7P-38A11 V20 Series Vane Pump |
431789-1 |
11 Tooth Splined - Short |
1.39 |
07 |
10.5 |
Opposite Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1P8P-38A11 V20 Series Vane Pump |
433338-1 |
11 Tooth Splined - Short |
1.62 |
08 |
12 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-6S7S-15A11 V20 Series Vane Pump |
478057-1 |
13 Tooth SAE B Splined |
1.39 |
07 |
10.5 |
Opposite Inlet |
CW |
2500 |
3000 RPM |
|
|
V20-1S8S-38A11 V20 Series Vane Pump |
576970-1 |
11 Tooth Splined - Short |
1.62 |
08 |
12 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1S9S-38A11 V20 Series Vane Pump |
576980-1 |
11 Tooth Splined - Short |
1.81 |
09 |
13.5 |
Opposite Inlet |
CW |
2500 |
2800 RPM |
|
|
V20-1P12P-38A11 V20 Series Vane Pump |
578167-1 |
11 Tooth Splined - Short |
2.38 |
12 |
18 |
Opposite Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-1P12P-11A11 V20 Series Vane Pump |
584195-1 |
11 Tooth Splined Extended Length |
2.38 |
12 |
18 |
Opposite Inlet |
CW |
2200 |
2400 RPM |
|
|
V20-6S11S-15A11 V20 Series Vane Pump |
591418-1 |
13 Tooth SAE B Splined |
2.22 |
11 |
16.5 |
Opposite Inlet |
CW |
2500 |
2500 RPM |
|
|
V20-1P5P-1A11 V20 Series Vane Pump |
875445-1 |
3/4 straight Keyed |
1 |
05 |
7.5 |
Opposite Inlet |
CW |
2500 |
3400 RPM |
|
Product Questions & Answers (1)
Question by: Dustin S on Dec 18, 2025, 12:56 PM
Reckon this pump would be alright runnin' steady all day long in a sawmill?
Answer by: Customer Support on Dec 20, 2025, 6:14 AM
This V20 series vane pump is designed for demanding industrial hydraulic applications, so continuous duty shouldn't be a problem as long as you stay within the specified pressure and RPM limits.
