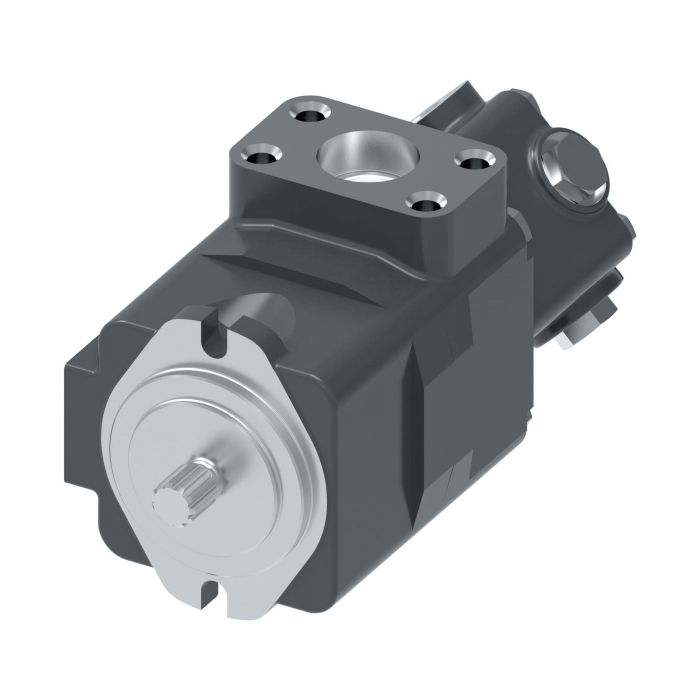

V2010 Series Double Vane Pump, 7/3 Ring Sizes, 7/8 Keyed Shaft, 2-Bolt SAE B Flange, Outlet Positions C/C, CCW Rotation

Ask A Question

Description & Features

The V2010 Series Double Vane Pump featuring 7/3 ring sizes and a 7/8 keyed shaft is designed for power steering and industrial small units. This model includes a 2-bolt SAE B flange and offers outlet positions C/C with counterclockwise rotation.

Its pressure-balanced modular 12-vane design significantly reduces noise and flow pulsation. Rated for a maximum pressure of 2500 PSI and a speed rating of 3000 RPM this double hydraulic vane pump is ideal for demanding applications.

The front displacement is 1.39 with a rated flow of 10.5 while the rear displacement is 0.6 with a rear rated flow of 4.5. The inlet port features a 1-1/2 inch Code 61 flange and the outlet ports are SAE-16 straight thread for the front pump (shaft end) and SAE-8 straight thread for the rear pump (cover end).

Constructed with Buna-N seals and Vickers balanced vane construction this pump offers durable performance. The shaft rotation can be adjusted by changing the assembly of internal parts.

Model Number: V2010-1F7S3S-1CC-12L-167

Supplier Part Number: 721AR00032A

Specifications

Brand
Vickers by Danfoss
Cartridge Type
12 Design
Configuration
Double
Design Code
12
Dimensions
11.27 in L x 6.87 in W x 5 in H
Displacement
1.39 cu-in Shaft, 0.6 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
7 gpm Shaft, 3 gpm Cover
grp Features
Vickers balanced vane construction. Buna-N seals standard. Shaft rotation can be changed by changing the assembly of internal parts
Grp Port
1-1/2 in Code 61 Flange Front Pump (Shaft End) Inlet, SAE-16 Straight Thread Rear Pump (Cover End) Outlet, SAE-8 Straight Thread Outlet
Housing Material
Iron
Inlet Type
Code 61 Flange
Maximum Operating Pressure
2500 psi
Mounting Type
2-Bolt Flanged SAE B
Outlet Size
1-1/16-12, 3/4-16
Outlet Type
Threaded
Outletcover Port Orientation
Outlet 2: 45 deg CW From Inlet Port, Outlet 1: Inline with Inlet Port
Rotation Direction
Counter Clockwise (Left Hand)
Seal Material
Buna-N
Segment Code
B
Series
V2010 Series
Vane Type
Balanced

Similar Products

Model Number Part Number Shaft Mount Displacement Ring Size Rated Flow Maximum Pressure Speed Rating Rotation Rear Rated Flow Front Displacement Rear Displacement Price Action
V2010 Series Double Vane Pump, 9/5 Ring Sizes, 7/8 Keyed Shaft, 2-Bolt SAE B Flange, Outlet Positions A/D, CCW Rotation

V2010-1F9S5S-1AD-12L-167 V2010 Series Double Vane Pump

721AR00033A

7/8 Keyed

2-Bolt SAE B

9/5

13.5

2500

2800 RPM

CCW

7.5

1.81

1

V2010 Series Double Vane Pump, 9/3 Ring Sizes, 7/8 Keyed Shaft, 2-Bolt SAE B Flange, Outlet Positions B/A, CCW Rotation

V2010-1F9S3S-1BA-12L-167 V2010 Series Double Vane Pump

721AR00034A

7/8 Keyed

2-Bolt SAE B

9/3

13.5

2500

2800 RPM

CCW

4.5

1.81

0.6

Product Questions & Answers (2)

Question by: Sherry M on May 3, 2025, 6:20 PM
Will this pump work for power steering on my old Ford tractor?
Answer by: Customer Support on May 5, 2025, 10:20 AM
This V2010 series double vane pump is indeed designed for power steering applications, as well as industrial small units. Just make sure the specs line up with your tractor's requirements, like the 2500 PSI max pressure and the 3000 RPM speed rating.
Question by: Peggy C on Apr 19, 2025, 6:57 AM
runs counterclockwise out of the box, right? just want to make sure before i go bolting it up to my setup
Answer by: Customer Support on Apr 21, 2025, 6:51 AM
Yes, CCW rotation is the default configuration on this pump. That said, the shaft rotation can be changed by reassembling the internal parts, so if your application calls for clockwise rotation down the road, that option is there without needing a whole different unit.
