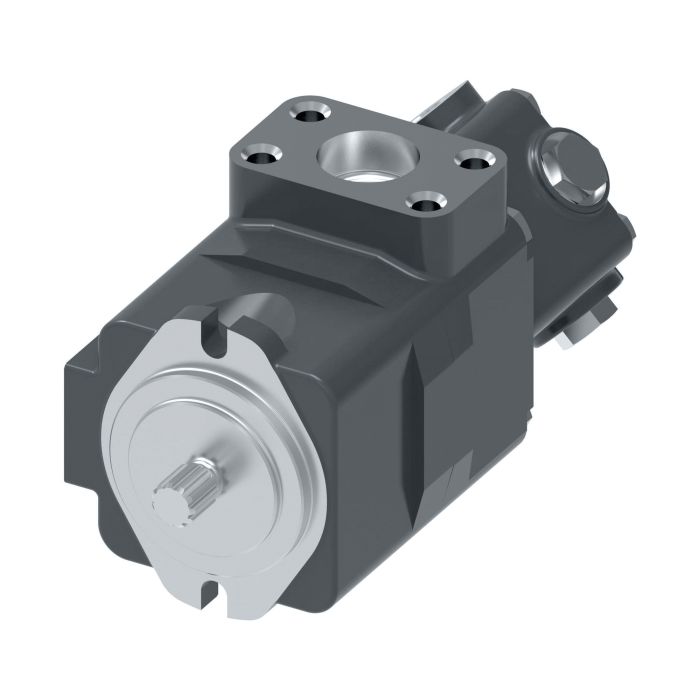

V2010 Series Double Vane Pump, 9/5 Ring Sizes, 7/8 Keyed Shaft, 2-Bolt SAE B Flange, Outlet Positions A/D, CCW Rotation

Ask A Question

Description & Features

The V2010 Series Double Vane Pump from Danfoss Power Solutions features a highly efficient pressure-balanced 12-vane modular design. This industrial-grade pump is engineered to minimize noise and flow pulsation optimizing performance for power steering small industrial units and small presses. It is rated for a maximum pressure of 2500 PSI and a speed of 2800 RPM making it suitable for demanding applications.

The pump utilizes a 7/8" keyed shaft and operates with counterclockwise (CCW) rotation. Built with Buna-N seals it supports durable and reliable use in various harsh environments. It offers two outlet positions (A/D) and includes a 2-bolt SAE B flange mount for secure installation.

With front and rear displacements of 1.81 and 1 cubic inches respectively this dual pump configuration ensures versatile and consistent hydraulic performance. The inlet port features a 1-1/2 inch Code 61 flange while the front and rear pump outlets come with SAE-16 and SAE-8 straight threads.

Model Number: V2010-1F9S5S-1AD-12L-167

Supplier Part Number: 721AR00033A

Specifications

Brand
Vickers by Danfoss
Cartridge Type
12 Design
Configuration
Double
Design Code
12
Dimensions
11.65 in L x 6.87 in W x 5 in H
Displacement
1.81 cu-in Shaft, 1 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
9 gpm Shaft, 5 gpm Cover
grp Features
Vickers balanced vane construction. Buna-N seals standard. Shaft rotation can be changed by changing the assembly of internal parts
Grp Port
1-1/2 in Code 61 Flange Front Pump (Shaft End) Inlet, SAE-16 Straight Thread Rear Pump (Cover End) Outlet, SAE-8 Straight Thread Outlet
Housing Material
Iron
Inlet Type
Code 61 Flange
Maximum Operating Pressure
2500 psi
Mounting Type
2-Bolt Flanged SAE B
Outlet Size
1-1/16-12, 3/4-16
Outlet Type
Threaded
Outletcover Port Orientation
Outlet 2: 135 deg CW From Inlet Port, Outlet 1: Opposite From Inlet Port
Rotation Direction
Counter Clockwise (Left Hand)
Seal Material
Buna-N
Segment Code
B
Series
V2010 Series
Speed Rating
2800 rpm Shaft, 3000 rpm Cover
Vane Type
Balanced

Similar Products

Model Number Part Number Shaft Mount Displacement Ring Size Rated Flow Maximum Pressure Speed Rating Rotation Rear Rated Flow Front Displacement Rear Displacement Price Action
V2010 Series Double Vane Pump, 7/3 Ring Sizes, 7/8 Keyed Shaft, 2-Bolt SAE B Flange, Outlet Positions C/C, CCW Rotation

V2010-1F7S3S-1CC-12L-167 V2010 Series Double Vane Pump

721AR00032A

7/8 Keyed

2-Bolt SAE B

7/3

10.5

2500

3000 RPM

CCW

4.5

1.39

0.6

V2010 Series Double Vane Pump, 9/3 Ring Sizes, 7/8 Keyed Shaft, 2-Bolt SAE B Flange, Outlet Positions B/A, CCW Rotation

V2010-1F9S3S-1BA-12L-167 V2010 Series Double Vane Pump

721AR00034A

7/8 Keyed

2-Bolt SAE B

9/3

13.5

2500

2800 RPM

CCW

4.5

1.81

0.6

Product Questions & Answers (2)

Question by: Shawn S on Nov 30, 2025, 7:17 PM
pump says CCW rotation -- is that something that can be flipped or are you stuck with it?
Answer by: Customer Support on Dec 1, 2025, 9:19 PM
Shaft rotation on these Vickers-style vane pumps can actually be changed by disassembling and reassembling the internal components in the opposite orientation. So CCW isn't permanent if your setup calls for something different. Just know that it does require taking the pump apart to do it, it's not a simple external switch or setting.
Question by: Daryl P on Apr 27, 2025, 10:06 AM
What kind of machines is this pump good for?
Answer by: Customer Support on Apr 28, 2025, 7:41 PM
This double vane pump is intended for power steering, small industrial units, and small presses.
