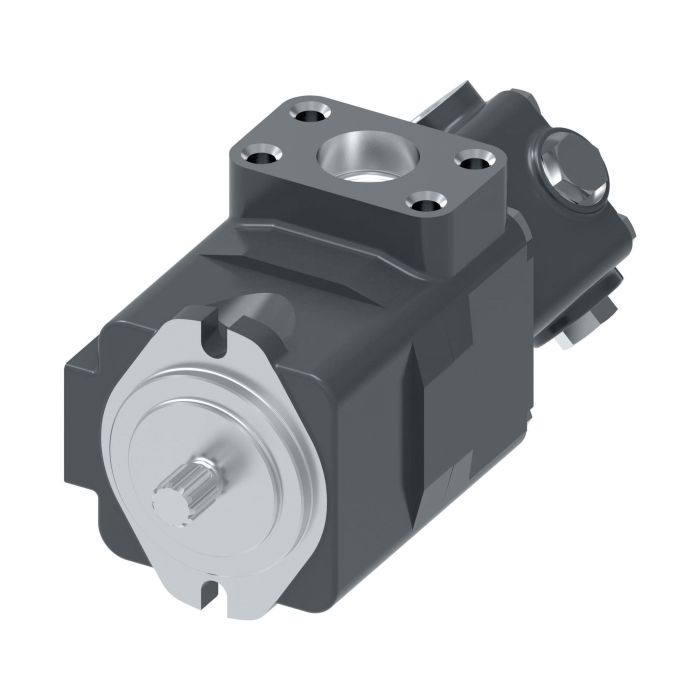

V2010 Series Double Vane Pump, 9/3 Ring Sizes, 7/8 Keyed Shaft, 2-Bolt SAE B Flange, Outlet Positions B/A, CCW Rotation

The V2010 Series Double Vane Pump is designed for industrial and power steering applications offering a pressure-balanced modular 12-vane design that minimizes noise and flow pulsation. Its dual displacement configuration includes front and rear displacements of 1.81 and 0.6 respectively with a 9/3 ring size. This pump features a 7/8 keyed shaft accommodating a variety of setups with its 2-bolt SAE B flange and outlet positions B/A for CCW rotation.

Rated to handle a maximum pressure of 2500 PSI and speed up to 2800 RPM the V2010 Series provides reliable performance. Port specifications include a 1-1/2 inch Code 61 Flange inlet with SAE-16 and SAE-8 Straight Thread outlets on the front and rear pumps. Buna-N seals offer robust durability and the vane construction ensures balanced and consistent operation.

The pump's design allows for potential rotation changes by reassembling internal components making it versatile for various industrial needs. Rated flows for front and rear displacements are 13.5 and 4.5 respectively.

Model Number: V2010-1F9S3S-1BA-12L-167

Supplier Part Number: 721AR00034A
