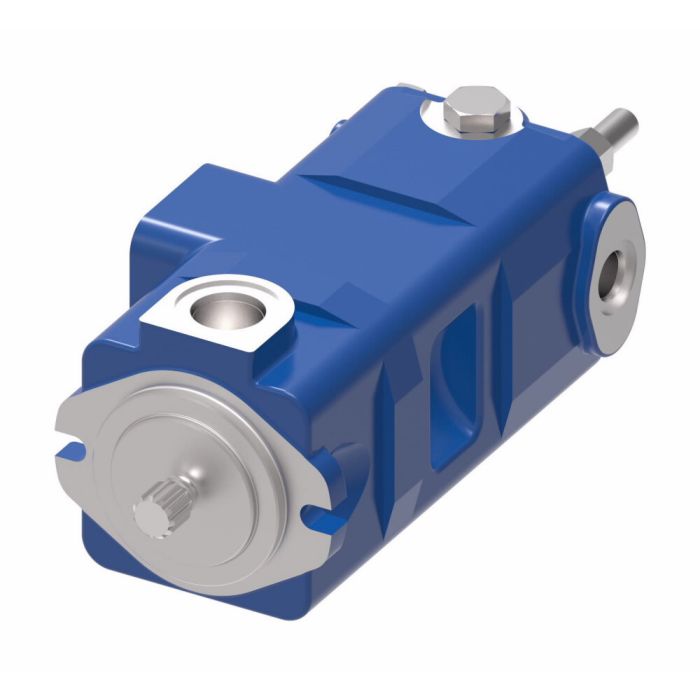

V2020 Series Double Vane Pump, 1.81/1.81 cu in/rev Front/Rear, 09/09 Ring Sizes, CC Port Location Code, CW Rotation

Description & Features

The V2020 Series Double Vane Pump, designed by Eaton Vickers, is ideal for power steering and small industrial applications. Featuring a pressure-balanced, modular 12-vane design, this pump minimizes noise and flow pulsation, ensuring efficient performance. With both front and rear displacements of 1.81 cu in/rev, it offers a consistent rated flow of 13.5 gpm. The pump's construction includes Buna-N seals, with optional Viton seals for added versatility. Capable of withstanding a maximum pressure of 2500 psi, this pump is mounted using a 2-bolt SAE B configuration. Its clockwise rotation and 13-tooth splined shaft ensure compatibility with various industrial systems.

SKU: 02-143649-3

Supplier Part Number (MPN): 02-143649-3

Alternate Part Numbers: C1KT95, V20201F9S9S11CC30-063

Specifications

Brand
Vickers by Danfoss
Cartridge Type
30 Design
Configuration
Double
Dimensions
10.61 in L x 6.88 in W x 5.32 in H
Drive Shaft Type
13 Teeth
Flow Rate
9 gpm Shaft, 9 gpm Cover
Grp Port
2 in Code 61 Flange Front Pump (Shaft End) Inlet, SAE-12 Straight Thread Rear Pump (Cover End) Outlet, SAE-12 Straight Thread Outlet
Housing Material
Iron
Inlet Port Type
4 Bolt Flanged
Maximum Operating Pressure
2500 psi
Mounting Type
2-Bolt Flanged
Outlet Size
1-1/16-12, 3/4-16
Outlet Type
Threaded
Port Location
CC
Rotation Direction
Clockwise (Right Hand)
Seal Material
Buna-N
Segment Code
A
Series
V2020 Series
Shaft
13 Tooth Splined
Shaft Pitch
16/32
Special Feature Suffix
Special 3000 psi Pressure Ring Rotor ASM
Vane Type
Balanced

Similar Products

Model Number Displacement Flow Rate Maximum Operating Pressure Speed Rating Mounting Type Drive Shaft Type Outlet Size Outlet Type Rotation Direction Dimensions Price Action
VICKERS V2020F 1F11S11S 1BC8G 30 092 L

02-143004-L

11 gpm Shaft, 11 gpm Cover

2500 psi

Flanged

Straight Keyed

1-1/16-12, 3/4-16

Threaded

Counter Clockwise, In-Line with Inlet

6.88 in W

VICKERS V2020 1F13B8B 1CC30

02-143664-3

2.59 cu-in Shaft, 1.62 cu-in Cover

13 gpm Shaft, 8 gpm Cover

2200 psi Shaft, 2500 psi Cover

2400 rpm Shaft, 2800 rpm Cover

Flanged

Straight Keyed

BSP

In-Line with Inlet

6.88 in W

VICKERS-V2020 1F13B11B 100AA30

02-151512-1

2.59 cu-in Shaft, 2.22 cu-in Cover

13 gpm Shaft, 11 gpm Cover

2200 psi Shaft, 2500 psi Cover

2400 rpm Shaft, 2500 rpm Cover

2-Bolt Flanged

Keyed

BSP

Clockwise (Right Hand)

10.81 in L x 6.88 in W x 5.32 in H

Vickers V2020 1F13B11B 100AA30 L

02-151512-5

2.59 cu-in Shaft, 2.22 cu-in Cover

13 gpm Shaft, 11 gpm Cover

2200 psi Shaft, 2500 psi Cover

2400 rpm Shaft, 2500 rpm Cover

Flanged

Straight Keyed

BSP

Opposite Inlet

11.48 in L x 6.88 in W x 5.32 in H

Vickers V2020 1F9S7S 11AA30

02-151962-1

1.81 cu-in Shaft, 1.39 cu-in Cover

9 gpm Shaft, 7 gpm Cover

2500 psi

2800 rpm Shaft, 3000 rpm Cover

Flanged

Splined

1-1/16-12, 3/4-16

Threaded

Opposite Inlet

10.46 in L x 6.88 in W x 5.32 in H

VICKERS V2020P 1F6S6T 11AA3G 30 096

02-160593-1

1.19 cu-in Cover

6 gpm Shaft, 6 gpm Cover

2500 psi Cover

3000 rpm Cover

Flanged

Splined

1-1/16-12, 3/4-16, 7/8-14

Threaded

Opposite Inlet

6.88 in W

Product Questions & Answers (2)

Question by: Terry M on Apr 28, 2025, 9:33 AM
both the front and rear sections on this pump pushing the same volume, or are they different setups?
Answer by: Customer Support on Apr 30, 2025, 6:55 AM
Front and rear sections are matched on this one, both displacing 1.81 cubic inches per revolution with a rated flow of 13.5 GPM each. That symmetrical setup makes it a straightforward double pump for applications where you need two equal output circuits running off a single shaft. Ring sizes are 09/09 across both sections, so there's no mixing involved here.
Question by: Ray M on Aug 31, 2025, 3:01 PM
Will this double pump work for power steering on an older tractor?
Answer by: Customer Support on Sep 2, 2025, 8:47 AM
This V2020 series pump is often used in power steering applications, as well as smaller industrial units and presses.
