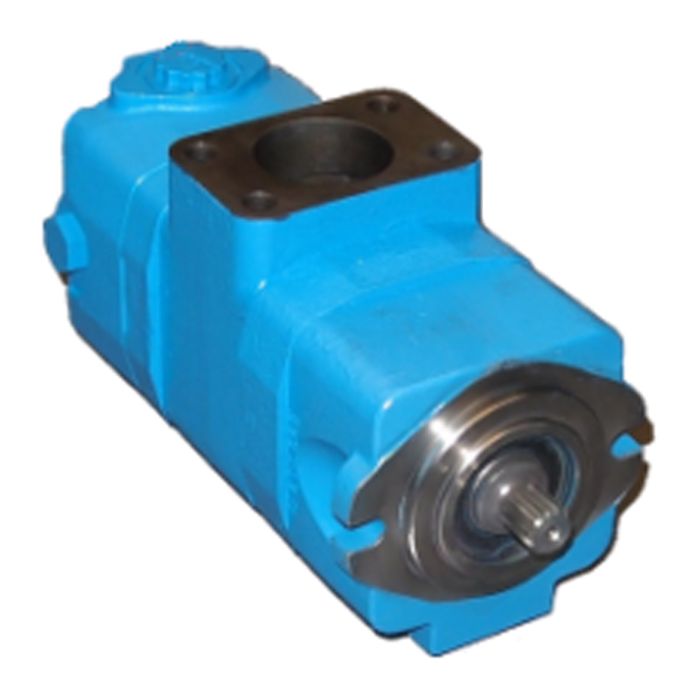

V2020 Series Double Vane Pumps, Up To 19.5/16.5 GPM @ 1800 RPM, Up To 2500 PSI, Up To 2800 RPM
Description & Features
| Features | Vickers balanced vane construction. Buna-N seals are standard, Viton seals are available as an option. Shaft rotation can be changed by changing the assembly of internal parts. |
| Ports | Inlet: 2 inch Code 61 Flange. Front Pump (Shaft End) Outlet: SAE-12 Straight Thread. Rear Pump (Cover End Outlet: SAE-12 Straight Thread. |
Products
| Model Number | Part Number | Shaft | Mount | Displacement | Ring Size | Rated Flow | Maximum Pressure | Speed Rating | Rotation | Rear Displacement | Front Displacement | Rear Rated Flow | Price | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
V2020-1F9S9S-11CC30-063 V2020 Series Double Vane Pump |
02-143649-3 |
13 Tooth Splined |
2-bolt SAE B |
|
09/09 |
13.5 |
2500 |
2800 RPM |
CW |
1.81 |
1.81 |
13.5 |
|
Product Questions & Answers (1)
Question by: Shawn W on Feb 3, 2026, 12:41 PM
What kind of hydraulic fluid is best for these pumps?
Answer by: Customer Support on Feb 5, 2026, 7:56 AM
While the V2020 series comes standard with Buna-N seals, you also have the option to get it with Viton seals, which would give you more flexibility with fluid types.
