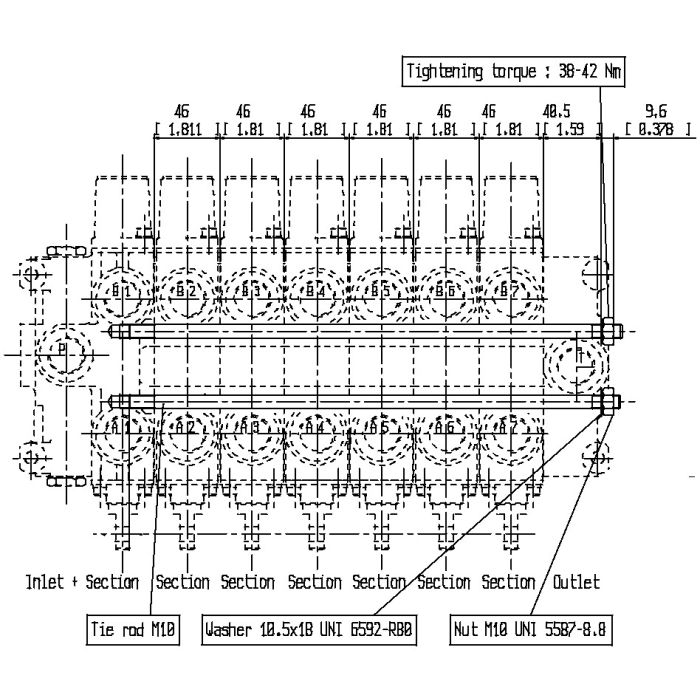

VD10A Series Assembling kit for 8 section valve assembly

Description & Features

The VD10A Series Assembling kit for 8 section valve assembly is designed for reliable performance in demanding hydraulic applications. This Salami S.P.A kit, model C1MT60, is engineered to operate within a fluid temperature range of -4°F to 185°F when using standard NBR seals.

This assembly kit offers a flow rating of 32 GPM and is designed to withstand a maximum operating pressure of 4000 PSI on ports "P" and 4500 PSI on ports "A" and "B". It can handle a maximum back pressure of 363 PSI on the outlet port "T". Optimal fluid viscosity should range from 12 cSt to 75 cSt, with acceptable range from 10 cSt to 460 cSt. It is recommended to use ISO 4406: 19/16 filtration.

SKU: R22085180

Supplier Part Number (MPN): R22085180

Alternate Part Numbers: C1MT60

Specifications

Brand Salami S.P.A	Brand Salami S.P.A	Pack Size 1.00	UOM EA	Supplier Part Number R22085180	Alternate Part Numbers Alternate Part Number C1MT60	Product Weight 12.00 lbs

Product Questions & Answers (1)

Question by: Brent H on May 17, 2025, 3:35 PM

What kinda fluid should I be using in this thing?

Answer by: Customer Support on May 19, 2025, 8:41 AM

Optimal fluid viscosity should range from 12 cSt to 75 cSt, with acceptable range from 10 cSt to 460 cSt. Just make sure you're running clean fluid, filtered to ISO 4406: 19/16.
