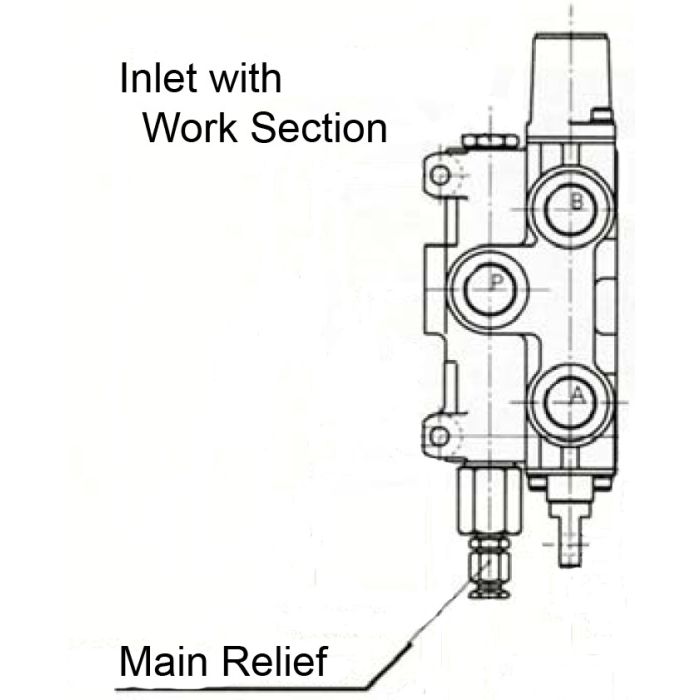

Main relief valve (VS) adjustable 3000 PSI to 4600 PSI

Part of the Salami VD10A Series inlet module lineup, this Main Relief Valve (VS) Adjustable 3000 PSI to 4600 PSI is designed for use in directional control valve assemblies requiring high-pressure circuit protection. The adjustable pressure range covers 3000 to 4600 PSI, with a maximum operating pressure of 4000 PSI on the inlet port and up to 4500 PSI on work ports.

Rated for flows up to 32 GPM, the valve accommodates fluid temperatures from -4°F to 185°F with standard NBR seals and operates across a viscosity range of 12 to 75 cSt under optimal conditions. Back pressure on the outlet port is rated to a maximum of 363 PSI. Recommended filtration is ISO 4406: 19/16, consistent with standard mineral oil hydraulic circuits.

Manufactured by Salami S.P.A., this inlet module carries catalog number C1MT47 and is a direct-fit component within the VD10A Series valve stack configuration.

SKU: R22070040

Supplier Part Number (MPN): R22070040

Alternate Part Numbers: C1MT47
