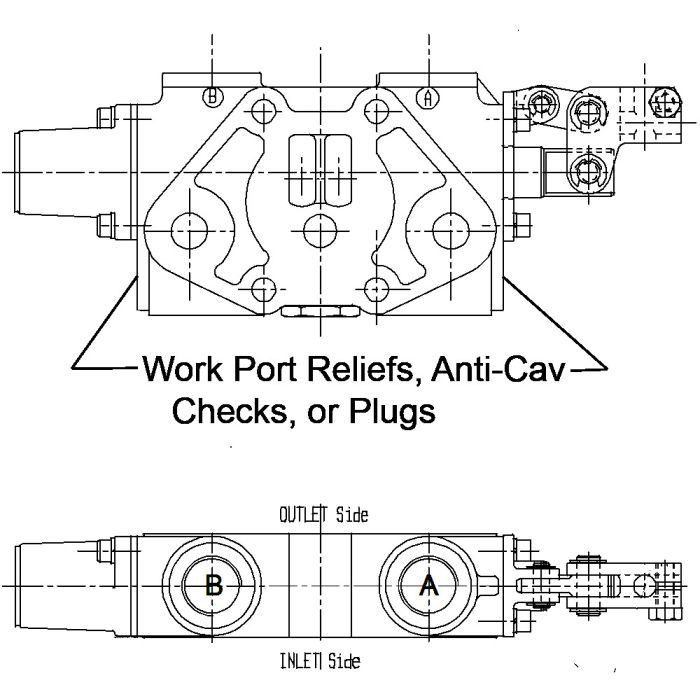

Salami VD10A-VD12A PP Kit 1/8 NPT PortS

Description & Features

Designed for demanding industrial applications, the Salami VD10A-VD12A PP Kit features 1/8 NPT ports, offering optimal control and reliability in hydraulic systems. With a maximum flow rating of 32 GPM and capable of withstanding pressures up to 4500 PSI on ports "A" and "B," this kit is engineered for robust performance. Operating efficiently across a fluid temperature range of -4°F to 185°F, it maintains internal leakage between 2.43 - 3.34 in³/min. at 2285 PSI, ensuring consistent operation.

Ideal for environments with ambient temperatures ranging from 86°F to 140°F, the Salami VD10A Series Working Section emphasizes durability and efficiency. It requires a recommended filtration level per ISO 4406: 19/16, ensuring long-lasting performance with mineral oils. This reliability is further supported by its capacity to handle back pressures up to 363 PSI on the outlet port "T."

SKU: R22176331

Supplier Part Number (MPN): R22176331

Alternate Part Numbers: C1MT62

Specifications

Brand Salami Hydraulics Na Inc	Brand Salami S.P.A	Pack Size 1.00	UOM EA	Supplier Part Number R22176331	Alternate Part Numbers Alternate Part Number C1MT62	Product Weight 1.40 lbs

Similar Products

Model Number	Product Description	Price	Action
R22176331 VD10A Series Working Section	SALAMI VD10A-VD12A PP KIT 1/8 NPT PORTS.
R22400309 VD10A Series Working Section	SALAMI VD10A-VD12A R2 DETENT KIT.
S22081501 VD10A Series Working Section	SALAMI VD10A-P02A-PRA.PRB-MLA-C2/S PARAL.
R22470081 VD10A Series Working Section	SALAMI VD10A-VD12A P ( 50 - 280 ) PILOT.
R360T0500 VD10A Series Working Section	SALAMI VD10/VD12 CABLE CONTROL.
S22081391 VD10A Series Working Section	SALAMI VD10A-P01A-PRA.PRB-MLA-C2/S PARAL.

Product Questions & Answers (6)

Question by: Brent W on Mar 2, 2026, 6:30 AM

What kinda flow rate can I expect from this PP kit?

Answer by: Customer Support on Mar 4, 2026, 6:16 AM

This kit is good for a flow rating of 32 GPM.

Question by: Clint H on Nov 19, 2025, 11:17 AM

got a pump setup that’ll see around 32 gpm, is this kit sized for that kind of flow?

Answer by: Customer Support on Nov 21, 2025, 6:30 AM

For flow, the VD10A series PP kit is rated at 32 GPM, so it matches a 32 GPM system on paper.

Question by: Eddie B on Jan 3, 2026, 8:04 AM

Running mineral oil through a system that tops out around 3,800 PSI on the pressure ports. This PP kit hold up to that without sweating it?

Answer by: Customer Support on Jan 5, 2026, 6:57 AM

4,000 PSI is the rated maximum on the P ports, so 3,800 PSI puts you comfortably inside that range. The A and B ports are rated even higher at 4,500 PSI. Technical data for this kit was validated using mineral oil at 16 cSt viscosity, so that fluid choice lines up well with how it was tested. Just keep your contamination level at ISO 4406 19/16 or cleaner and your viscosity between 12 and 75 cSt for best results.

Question by: Warren C on Mar 28, 2025, 6:26 PM

Reckon this would be a good fit for a Salami VD12A valve setup?

Answer by: Customer Support on Mar 30, 2025, 6:27 AM

Yes, this kit is specifically made for the Salami VD10A and VD12A series valves.

Question by: Warren H on Apr 19, 2025, 8:19 PM

what's the pressure rating on the work ports for this PP kit? trying to figure out if it'll hold up on a pretty demanding circuit

Answer by: Customer Support on Apr 20, 2025, 9:50 PM

Ports A and B are rated to 4500 PSI, and the pressure port P is rated to 4000 PSI. Keep in mind the outlet port T has a maximum back pressure of 363 PSI, so that side needs a little more attention when you're sizing out the rest of the circuit. Those numbers are based on testing with mineral oil at 16 cSt viscosity and a contamination level of 19/16 per ISO 4406.

Question by: Roy T on Apr 20, 2025, 12:26 PM

got a VD10A setup here. what are the ports on this PP kit, and how much pressure can it really take?

Answer by: Customer Support on Apr 22, 2025, 9:10 AM

For ports, this kit is set up with 1/8 NPT connections. On pressure limits, the VD10A series data calls out 4000 PSI max on the “P” port, and 4500 PSI max on the “A” and “B” ports.
