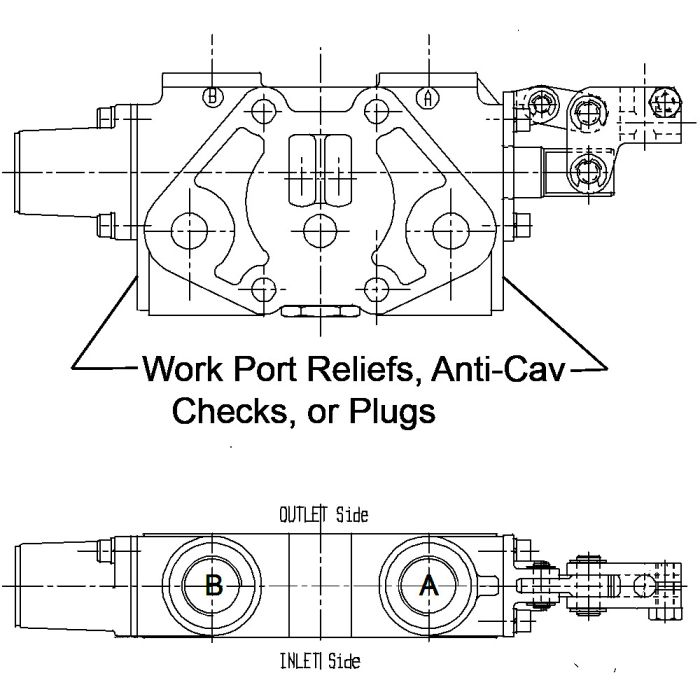

SALAMI VD10A-VD12A P ( 50 - 280 ) PILOT

Description & Features

The Salami VD10A Series Working Section provides robust and reliable performance for demanding hydraulic systems. Designed to handle a maximum operating pressure of 4000 PSI on port "P" and 4500 PSI on ports "A" and "B," this component ensures efficient operation under high-pressure conditions. Its flow rating of 32 GPM and compatibility with fluid viscosities ranging from 12 cSt to 75 cSt make it versatile for various applications.

With an ambient temperature range of 86°F to 140°F and a fluid temperature tolerance from -4°F to 185°F using standard NBR seals, the Salami VD10A-VD12A P (50 - 280) Pilot is engineered for optimal performance in diverse environments. The recommended filtration standard is ISO 4406: 19/16, ensuring minimal internal leakage and enhanced longevity.

SKU: R22470081

Supplier Part Number (MPN): R22470081

Alternate Part Numbers: C1MT68

Specifications

Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Supplier Part Number R22470081	Alternate Part Numbers Alternate Part Number C1MT68	Product Weight 0.44 lbs

Similar Products

Model Number	Product Description	Price	Action
R22176331 VD10A Series Working Section	SALAMI VD10A-VD12A PP KIT 1/8 NPT PORTS.
R22400309 VD10A Series Working Section	SALAMI VD10A-VD12A R2 DETENT KIT.
S22081501 VD10A Series Working Section	SALAMI VD10A-P02A-PRA.PRB-MLA-C2/S PARAL.
R22470081 VD10A Series Working Section	SALAMI VD10A-VD12A P ( 50 - 280 ) PILOT.
R360T0500 VD10A Series Working Section	SALAMI VD10/VD12 CABLE CONTROL.
S22081391 VD10A Series Working Section	SALAMI VD10A-P01A-PRA.PRB-MLA-C2/S PARAL.

Product Questions & Answers (2)

Question by: Pete S on Mar 15, 2026, 1:38 PM

what's the max pressure this pilot section can handle on the work ports, and is there a difference between port P and ports A and B?

Answer by: Customer Support on Mar 16, 2026, 8:06 PM

Port "P" is rated to 4000 PSI, while ports "A" and "B" can handle up to 4500 PSI. The outlet port "T" has a separate back pressure limit of 363 PSI, so keep that in mind when hydraulic connections your return line. Those ratings are based on mineral oil at 16 cSt viscosity under ISO 4406 contamination level 19/16 conditions.

Question by: Lyle H on Jun 10, 2025, 2:56 PM

got a VD10A section on a rig that sees some pressure spikes. what’s the max pressure this pilot section can handle on P vs A and B?

Answer by: Customer Support on Jun 12, 2025, 6:24 AM

Pressure-wise, it is rated for 4000 PSI on port P and 4500 PSI on ports A and B.
