Hydraulic proportional control kit (IP)

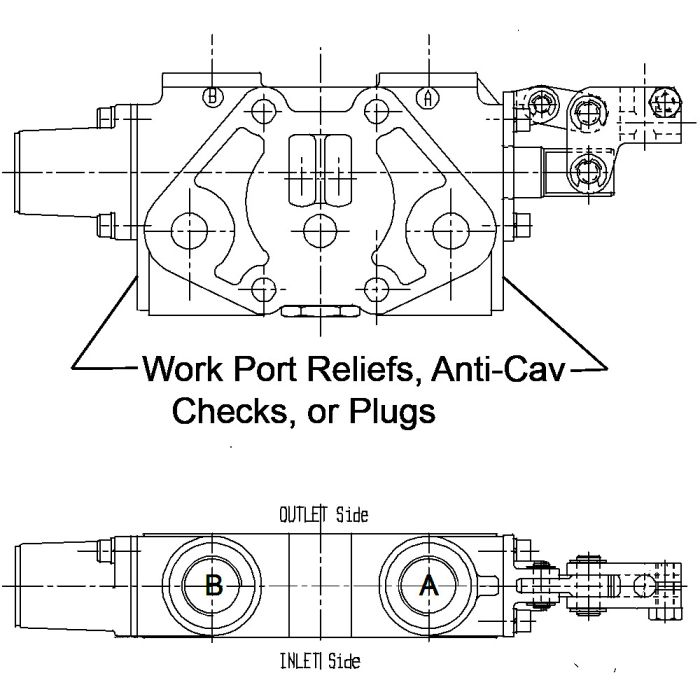

The Hydraulic proportional control kit (IP) features a Salami VD10A Series working section.

This hydraulic proportional control kit is rated to 32 GPM with a maximum operating pressure of 4000 PSI on ports "P," and 4500 PSI on ports "A" and "B." The maximum back pressure is 363 PSI on outlet port "T". It is designed to operate in ambient temperatures ranging from 86°F to 140°F. It offers an internal leakage rate of 2.43 - 3.34 in³/min. at 2285 PSI.

This unit is compatible with a fluid viscosity range of 12 cSt to 75 cSt (Optimal); 10 cSt minimum, 460 cSt maximum. It is compatible with fluid temperatures ranging from -4°F to 185°F when utilizing standard NBR seals and requires ISO 4406: 19/16 filtration.

SKU: R22475079

Supplier Part Number (MPN): R22475079

Alternate Part Numbers: C1MT74
