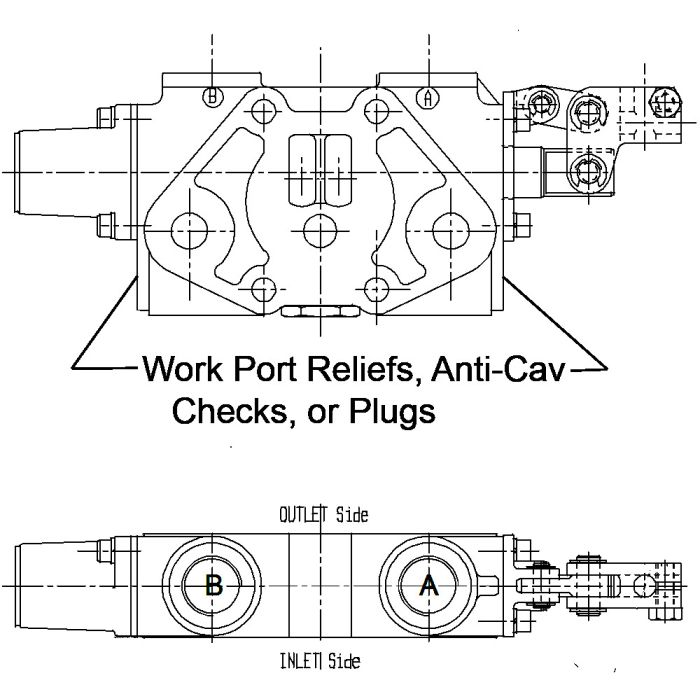

Salami VD10/VD12 CABLE Control

Description & Features

Designed for demanding hydraulic applications, the Salami VD10/VD12 Cable Control offers reliable performance with its robust construction. This working section, part of the VD10A Series, is engineered to handle a maximum operating pressure of 4000 PSI on ports "P" and 4500 PSI on ports "A" and "B", ensuring optimal functionality in high-pressure environments. With a flow rating of 32 GPM, it accommodates a wide range of industrial requirements.

Suitable for use in ambient temperatures ranging from 86°F to 140°F, this component can withstand fluid temperatures between -4°F and 185°F when equipped with standard NBR seals. It maintains fluid integrity with a recommended filtration level of ISO 4406: 19/16, ensuring long-lasting performance and minimal internal leakage of 2.43 to 3.34 in³/min at 2285 PSI. The Salami VD10/VD12 Cable Control is an essential component for efficient hydraulic system management.

SKU: R360T0500

Supplier Part Number (MPN): R360T0500

Alternate Part Numbers: C1MU92

Specifications

Brand Salami	Sg Fluid Viscosity 12 cSt to 75 cSt Optimal, 10 cSt Minimum, 460 cSt Maximum	Sg Internal Leakage 2.43 to 3.34 cu-in/min at 2285 psi	Sg Maximum Back Pressure 363 psi on Outlet Port T	Sg Recommended Filtration 19/16 um	Suitable For Use With VD10A and VD12A Series Directional Valves

Similar Products

Model Number	Product Description	Price	Action
R22176331 VD10A Series Working Section	SALAMI VD10A-VD12A PP KIT 1/8 NPT PORTS.
R22100300 VD10A Series Working Section	SALAMI VD10A-VD12A R2 DETENT KIT.
S22081501 VD10A Series Working Section	SALAMI VD10A-P02A-PRA.PRB-MLA-C2/S PARAL.
R22470081 VD10A Series Working Section	SALAMI VD10A-VD12A P ( 50 - 280 ) PILOT.
S22081391 VD10A Series Working Section	SALAMI VD10A-P01A-PRA.PRB-MLA-C2/S PARAL.

Product Questions & Answers (2)

Question by: Jimmy H on Sep 29, 2025, 9:29 AM

got a system that runs around 32 gpm, is this working section gonna keep up without choking it down?

Answer by: Customer Support on Sep 30, 2025, 10:12 AM

For flow capacity, it is rated at 32 GPM, so a 32 GPM circuit is within what this VD10A series working section is built to handle.

Question by: Earl D on Nov 18, 2025, 8:27 AM

What's the pressure ceiling on this cable control, and does it hold up on ports A and B the same as port P?

Answer by: Customer Support on Nov 19, 2025, 9:06 PM

Port "P" is rated to 4000 PSI, while ports "A" and "B" are actually rated a bit higher at 4500 PSI. The outlet port "T" has a max back pressure of 363 PSI, so that one's more limited. For high-pressure work, the A and B ports give you a little extra headroom, which can matter depending on how your system is loaded.
