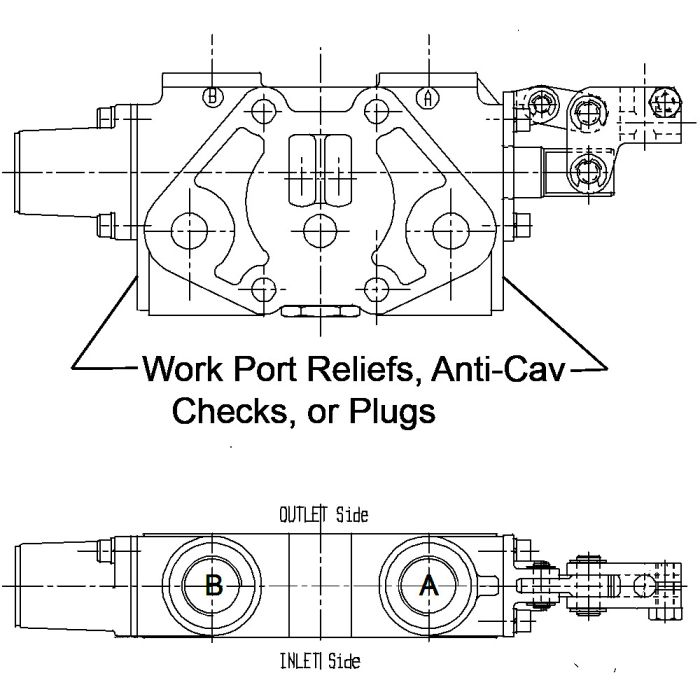

SALAMI VD10A-P01A-PRA.PRB-MLA-C2/S PARAL

Description & Features

The Salami VD10A Series Working Section ideal for rigorous industrial tasks offers a flow rating of 32 GPM and supports fluid viscosities from 12 cSt to 75 cSt ensuring consistent performance. With robust maximum operating pressures of 4000 PSI on port "P" and up to 4500 PSI on ports "A" and "B" it meets challenging operational demands efficiently. Designed to function within an ambient temperature range of 86deg;F to 140deg;F and a fluid temperature range of -4deg;F to 185deg;F this section is adaptable to diverse environments. Internal leakage is controlled between 2.43 and 3.34 insup3;/min at 2285 PSI minimizing hydraulic fluid loss. The product mandates ISO 4406: 19/16 filtration standards with a maximum back pressure of 363 PSI on outlet port "T". All technical data are derived from testing with mineral oil of 16 cSt viscosity and contamination adhering to ISO 4406 levels. The Salami VD10A-P01A-PRA.PRB-MLA-C2/S Paral crafted by Salami S.p.A promises reliability and durability for industrial hydraulic systems.

MPN: S22081391

Supplier Part Number: S22081391

Specifications

Brand Salami S.P.A	Brand Salami S.P.A	Pack Size 1.00	UOM EA	Supplier Part Number S22081391	Alternate Part Numbers Alternate Part Number C1MV14	Product Weight 11.79 lbs

Similar Products

Model Number	Product Description	Price	Action
R22176331 VD10A Series Working Section	SALAMI VD10A-VD12A PP KIT 1/8 NPT PORTS.
R22400309 VD10A Series Working Section	SALAMI VD10A-VD12A R2 DETENT KIT.
S22081501 VD10A Series Working Section	SALAMI VD10A-P02A-PRA.PRB-MLA-C2/S PARAL.
R22470081 VD10A Series Working Section	SALAMI VD10A-VD12A P ( 50 - 280 ) PILOT.
R360T0500 VD10A Series Working Section	SALAMI VD10/VD12 CABLE CONTROL.
S22081391 VD10A Series Working Section	SALAMI VD10A-P01A-PRA.PRB-MLA-C2/S PARAL.

Product Questions & Answers (1)

Question by: Rick B on Apr 4, 2026, 6:22 AM

Reckon this'll hold up alright in my hydraulic system? I'm pushing close to the max pressure on ports A and B sometimes.

Answer by: Customer Support on Apr 5, 2026, 1:16 PM

This Salami VD10A series working section is built to handle it. It's rated for up to 4500 PSI on ports A and B, so it should be able to cope with those peak demands.
