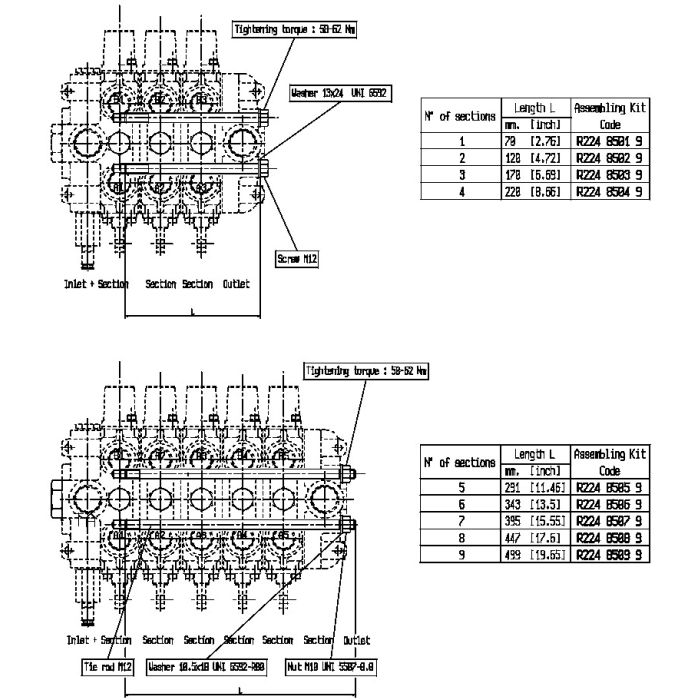

VD12A Series Salami VD12A/1 SECTION BOLT Kit

Description & Features

The VD12A Series Salami VD12A/1 Section Bolt Kit is a crucial component for advanced sectional systems designed by Salami S.p.A. Built to withstand extreme conditions it operates efficiently within an ambient temperature range of 86deg;F to 140deg;F.

With a fluid temperature range of -4deg;F to 185deg;F and optimal fluid viscosity between 12 cSt to 75 cSt the VD12A/1 Section Bolt Kit is versatile for various industrial applications. Maximum operating pressure reaches up to 4000 PSI on ports "P" and 4500 PSI on ports "A" and "B" ensuring consistent reliability.

Internal leakage is minimized to 2.43 - 3.34 insup3;/min. at 2285 PSI aiding in fluid conservation. Maximum back pressure support is up to 363 PSI on outlet port "T " providing better stability.

It adheres to ISO 4406: 19/16 filtration standards promoting operational cleanliness and longevity. Constructed using mineral oil with 16 cSt viscosity and contamination level 19/16 as per ISO 4406 this kit assures optimal performance.

MPN: R22485019

Supplier Part Number: R22485019

Specifications

Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Supplier Part Number R22485019	Alternate Part Numbers Alternate Part Number C1MT75, Alternate Part Number MI-02129974, Alternate Part Number MINO-00770X10494	Product Weight 0.68 lbs

Similar Products

Model Number	Product Description	Price	Action
R22485029 VD12A Series Assembly Kit	SALAMI VD12A/2 SECTION BOLT KIT.
R22485019 VD12A Series Assembly Kit	SALAMI VD12A/1 SECTION BOLT KIT.
R22485039 VD12A Series Assembly Kit	SALAMI VD12A/3 SECTION BOLT KIT.

Product Questions & Answers (2)

Question by: Roy S on May 31, 2025, 9:33 PM

What kind of pressure can this bolt kit actually handle before you start running into trouble?

Answer by: Customer Support on Jun 2, 2025, 9:11 PM

Port "P" is rated up to 4000 PSI, and ports "A" and "B" go a bit higher at 4500 PSI. Back pressure on the outlet port "T" tops out at 363 PSI. Those are solid numbers for most heavy sectional valve work, and the kit is built to hold those ratings consistently under normal operating conditions.

Question by: Pete M on Aug 1, 2025, 2:55 PM

What’s the ambient temperature range this kit can handle?

Answer by: Customer Support on Aug 3, 2025, 8:42 AM

The Salami VD12A/1 Section Bolt Kit works best when the surrounding temperature is between 86°F and 140°F.
