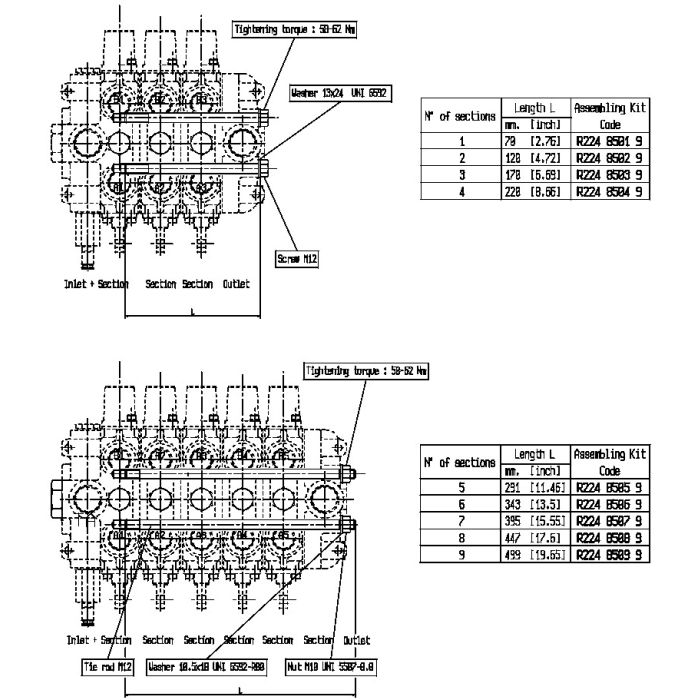

VD12A Series Salami VD12A/2 SECTION BOLT Kit

The Salami VD12A/2 SECTION BOLT Kit is designed for use with the Salami VD12A Series. This assembly kit ensures secure and reliable connections within your hydraulic system.

This kit is engineered to operate efficiently within a fluid temperature range of -4°F to 185°F when using standard NBR seals, and an ambient temperature range of 86°F to 140°F. It is optimized for a fluid viscosity of 12 cSt to 75 cSt, with a minimum of 10 cSt and a maximum of 460 cSt. The valve can handle a maximum operating pressure of 4000 PSI on ports "P" and 4500 PSI on ports "A" and "B", with a maximum back pressure of 363 PSI on outlet port "T". The recommended filtration is ISO 4406: 19/16. Note that all technical data is based on mineral oil with a viscosity of 16 cSt and contamination level 19/16 as per ISO 4406.

SKU: R22485029

Supplier Part Number (MPN): R22485029

Alternate Part Numbers: C1MT76, MI-02129976, MINO-00770X10495
