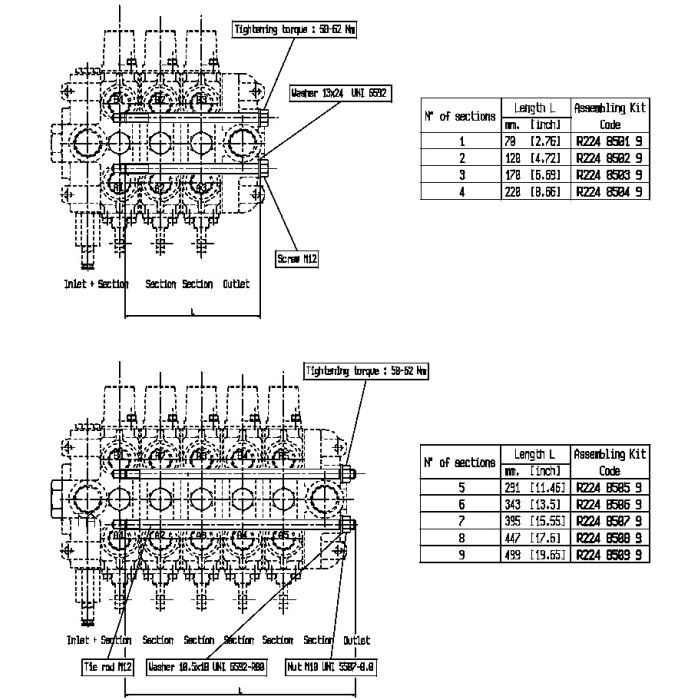

VD12A Series Assembly kit for 4 section valve assembly

Optimize your hydraulic assembly tasks with the VD12A Series Assembly Kit, expertly designed for a four-section valve assembly. Crafted by Salami S.P.A, this assembly kit is essential for maintaining reliable hydraulic system performance. It operates efficiently within a fluid temperature range of -4°F to 185°F, thanks to its robust NBR seals. Ensuring optimal flow, this kit supports up to 48 GPM and withstands a maximum operating pressure of 4000 PSI on ports "P" and 4500 PSI on ports "A" and "B". An internal leakage rate of 2.43 - 3.34 in³/min at 2285 PSI highlights its precision in controlled environments. Recommended filtration follows ISO 4406: 19/16 standards, maintaining system cleanliness and longevity.

Designed for demanding industrial applications, this kit operates effectively within an ambient temperature range of 86°F to 140°F. It accommodates fluid viscosity from 12 cSt to 75 cSt, with a permissible maximum of 460 cSt. The back pressure on the outlet port "T" is capped at 363 PSI, further ensuring stable performance. This kit is a critical component for those seeking durability and precision in hydraulic systems.

SKU: R22485049

Supplier Part Number (MPN): R22485049

Alternate Part Numbers: C1MT78
