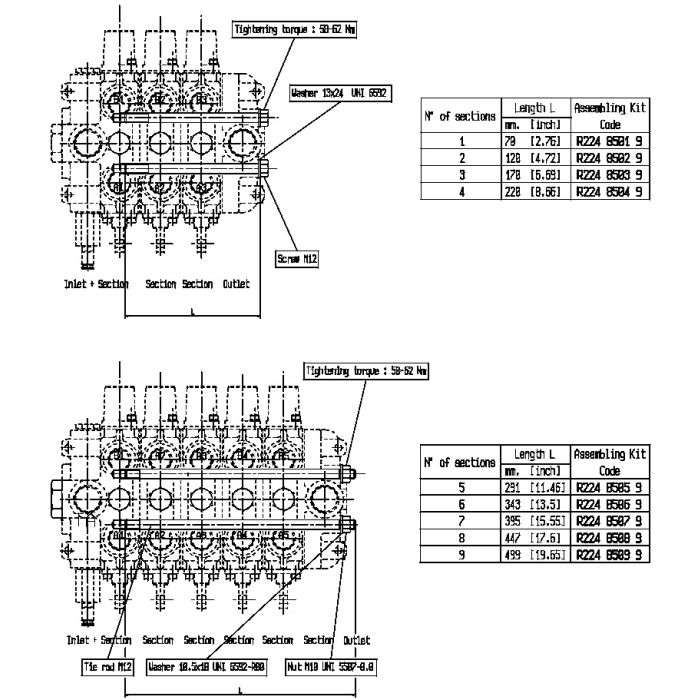

VD12A Series Assembly kit for 6 section valve assembly

Designed for optimal performance in hydraulic systems, the VD12A Series Assembly Kit facilitates efficient six-section valve assembly. Engineered with a maximum operating pressure of 4000 PSI on port "P" and 4500 PSI on ports "A" and "B", this kit ensures robust functionality under demanding conditions. With an internal leakage rate of 2.43 - 3.34 in³/min at 2285 PSI and a maximum back pressure of 363 PSI on outlet port "T", it provides reliable sealing performance.

Suitable for use in environments with ambient temperatures ranging from 86°F to 140°F, this assembly kit supports fluid temperatures from -4°F to 185°F when equipped with standard NBR seals. Recommended for use with mineral oil of 16 cSt viscosity and a contamination level of ISO 4406: 19/16, it optimizes fluid flow at a rate of 48 GPM. The VD12A Series Assembly Kit is a vital component for maintaining the efficiency and integrity of complex hydraulic systems.

SKU: R22485069

Supplier Part Number (MPN): R22485069

Alternate Part Numbers: C1MT80
