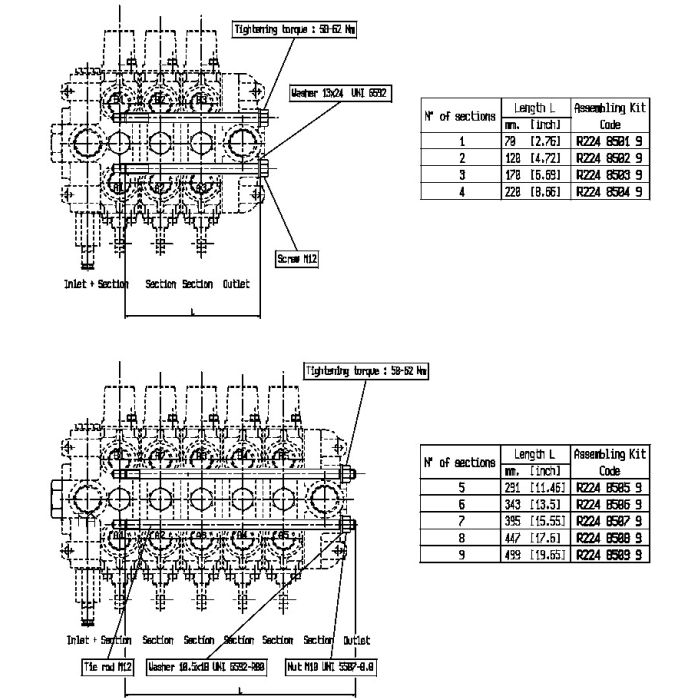

VD12A Series Assembly kit for 7 section valve assembly

Designed for multi-function hydraulic circuits, the VD12A Series Assembly kit for 7 section valve assembly provides all necessary components to build or rebuild a 7-section directional control valve configuration. Manufactured by Salami S.P.A., this kit supports maximum operating pressures of 4,000 PSI on the pressure port and 4,500 PSI on the work ports, with a flow rating of 48 GPM.

Compatible with standard mineral oil at a recommended contamination level of ISO 4406: 19/16, the kit performs across a fluid temperature range of -4°F to 185°F with NBR seals and accommodates fluid viscosity between 12 cSt and 75 cSt under optimal conditions. Back pressure on the outlet port is rated to 363 PSI, and internal leakage is specified at 2.43–3.34 in³/min. at 2,285 PSI.

SKU: R22485079

Supplier Part Number (MPN): R22485079

Alternate Part Numbers: C1MT81
