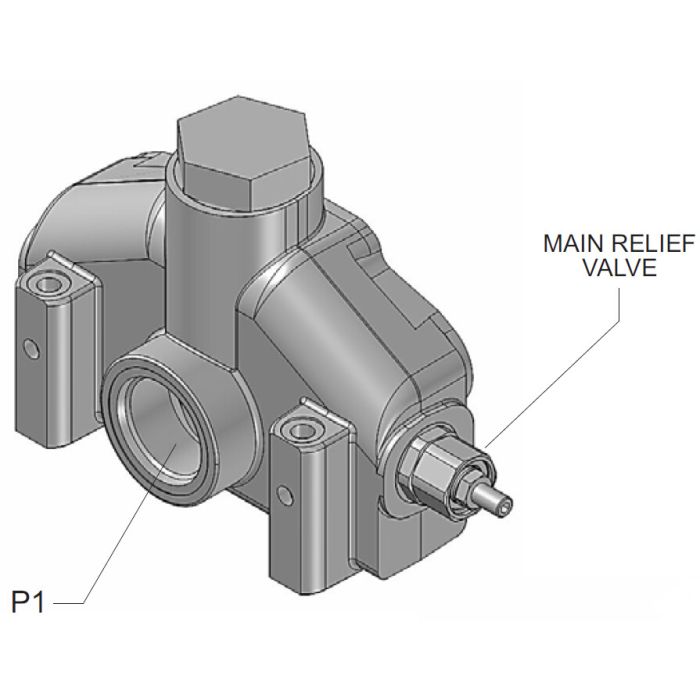

SALAMI VD12A-02D175/P01A-PRA.PRB-MLA-C2/

The VD12A Series Inlet Module offers a robust design ideal for industrial applications with fluid temperatures ranging from -4deg;F to 185deg;F using standard NBR seals. It operates efficiently within an ambient temperature range of 86deg;F to 140deg;F.

With a flow rating of 48 GPM the module supports high-pressure needs capable of withstanding up to 4000 PSI on ports "P" and 4500 PSI on ports "A" and "B". Internal leakage is minimal ranging between 2.43 and 3.34 insup3;/min at 2285 PSI ensuring fluid integrity.

Maximum back pressure at the "T" outlet port is 363 PSI designed for demanding industrial settings. Optimal fluid viscosity ranges from 12 cSt to 75 cSt with permissible extremes from 10 cSt to 460 cSt.

Technical validation uses mineral oil with a 16 cSt viscosity adhering to ISO 4406 standards (contamination level 19/16). Recommended filtration also aligns with ISO 4406: 19/16.

**Supplier Part Number:** S22480420

**MPN:** C1MV17
