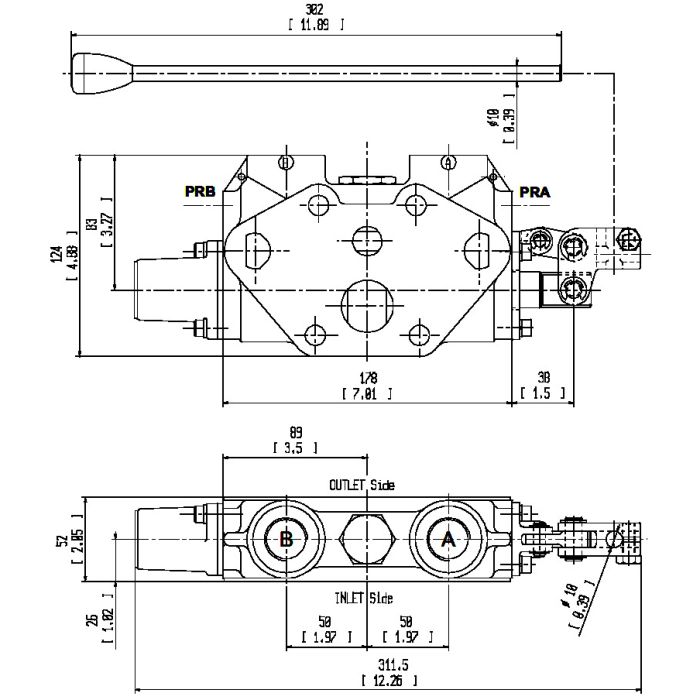

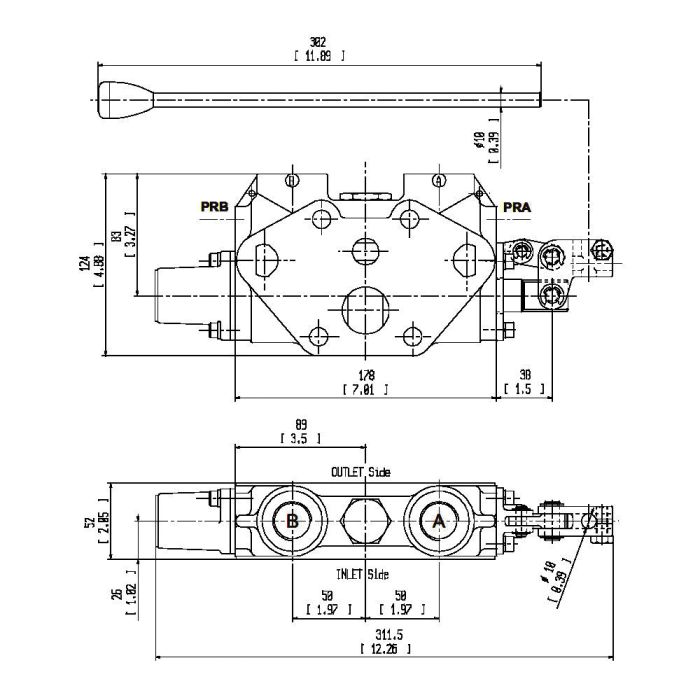

Salami VD12 02A M Spool

Description & Features

The Salami VD12 02A M Spool is a working section from the Salami VD12A Series, designed for a maximum operating pressure of 4000 PSI on ports "P" and 4500 PSI on ports "A" and "B". It offers a flow rating of 48 GPM.

This spool section is suitable for fluid temperatures ranging from -4°F to 185°F when using standard NBR seals. It is designed to work with a maximum back pressure of 363 PSI on the outlet port "T".

SKU: 322411332

Supplier Part Number (MPN): 322411332

Alternate Part Numbers: C1MZ20

Specifications

Brand Salami	Sg Fluid Viscosity 12 cSt to 75 cSt Optimal, 10 cSt Minimum, 460 cSt Maximum	Sg Internal Leakage 2.43 to 3.34 cu-in/min at 2285 psi	Sg Maximum Back Pressure 363 psi on Outlet Port T	Sg Recommended Filtration 19/16 um	Suitable For Use With VD10A 02A-M Series Hydraulic Proportional (IP) Control Directional Valves

Similar Products

Model Number	Product Description	Price	Action
S22480410 VD12A Series Working Section	SALAMI VD12A-P01A-PRA.PRB-MLA-C2/S PARAL.
S22480670 VD12A Series Working Section	SALAMI VD12A-P06A-PRA.PRB-MLA-C2/S PARAL.

Product Questions & Answers (2)

Question by: Bonnie H on Sep 6, 2025, 12:28 PM

What’s the highest pressure this thing can handle on the A and B ports?

Answer by: Customer Support on Sep 7, 2025, 1:42 PM

Maximum operating pressure on ports A and B is 4500 PSI. It can handle 4000 PSI on the P ports.

Question by: Roy M on Sep 19, 2025, 1:07 PM

got a VD12A valve stack, what kinda flow can that 02A M spool section handle?

Answer by: Customer Support on Sep 20, 2025, 4:48 PM

For performance planning, the VD12A series working section is rated at 48 GPM.
