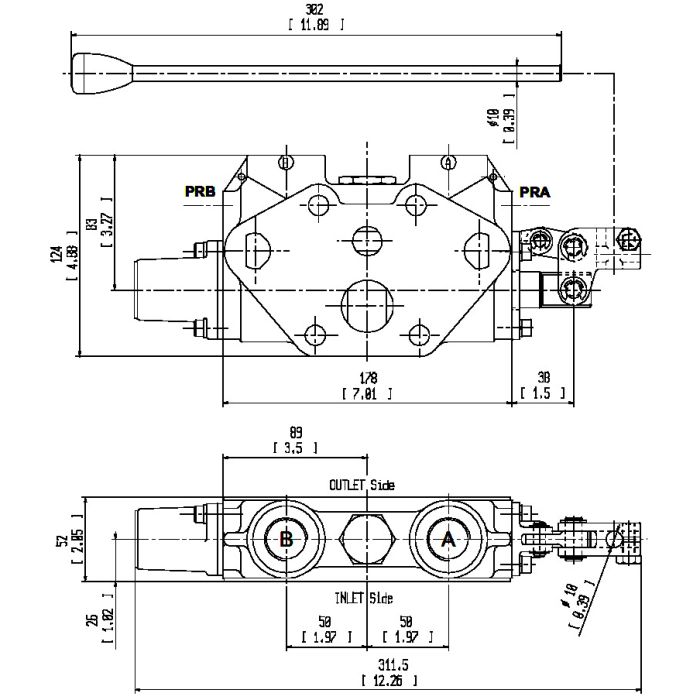

Working section, tandem circuit, 4-way, 3-position, A & B blocked in neutral, spring centered, work port valves plugged, not protected clamp lever, SAE -16 ports (/T01A-PRA.PRB-MLA-C2/S)

Designed for tandem circuit applications, this Salami Hydraulics VD12A Series working section delivers 4-way, 3-position directional control with ports A and B blocked in neutral and spring centering for reliable return to the neutral position. Work ports are plugged, and the section is fitted with a not-protected clamp lever for manual actuation. SAE -16 port connections are standard throughout.

The Working section, tandem circuit, 4-way, 3-position, A & B blocked in neutral, spring centered, work port valves plugged, not protected clamp lever, SAE -16 ports (/T01A-PRA.PRB-MLA-C2/S) is rated to 4000 PSI on the pressure port and 4500 PSI on the A and B work ports, with a maximum back pressure of 363 PSI at the outlet port T. Flow capacity reaches 48 GPM, and the section operates across a fluid temperature range of -4°F to 185°F with standard NBR seals. Optimal fluid viscosity falls between 12 cSt and 75 cSt. Recommended filtration is ISO 4406: 19/16, consistent with the test conditions using mineral oil at 16 cSt.

SKU: S22480500

Supplier Part Number (MPN): S22480500

Alternate Part Numbers: C1MV19
