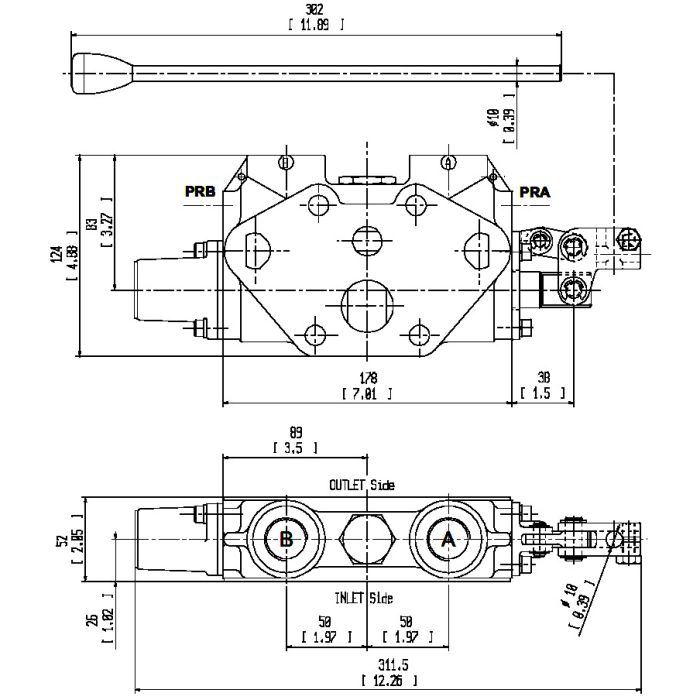

Working section, parallel circuit, 4-way, 3-position, A & B to T in neutral spring centered, work port valves plugged, not protected clamp lever, SAE -16 ports (/P02A-PRA.PRB-MLA-C2/S)

The Salami VD12A Series Working Section is a robust hydraulic component designed for demanding industrial applications. Featuring a parallel circuit and a 4-way, 3-position configuration, this valve section is engineered for efficient fluid control. It operates with an A & B to T in neutral spring centered mechanism, ensuring reliable performance under varying conditions. The unit is equipped with SAE -16 ports, making it suitable for high-pressure systems, with a maximum operating pressure of 4000 PSI on ports "P" and 4500 PSI on ports "A" and "B".

Optimized for fluid viscosities between 12 cSt to 75 cSt, this component supports a flow rating of 48 GPM. Suitable for use in temperatures ranging from -4°F to 185°F with standard NBR seals, it maintains internal leakage within 2.43 - 3.34 in³/min. at 2285 PSI. For optimal performance, it features a recommended filtration of ISO 4406: 19/16. Built to withstand challenging environments, this working section is an ideal choice for industrial hydraulic systems.

SKU: S22480660

Supplier Part Number (MPN): S22480660

Alternate Part Numbers: C1NC53
